Ideal

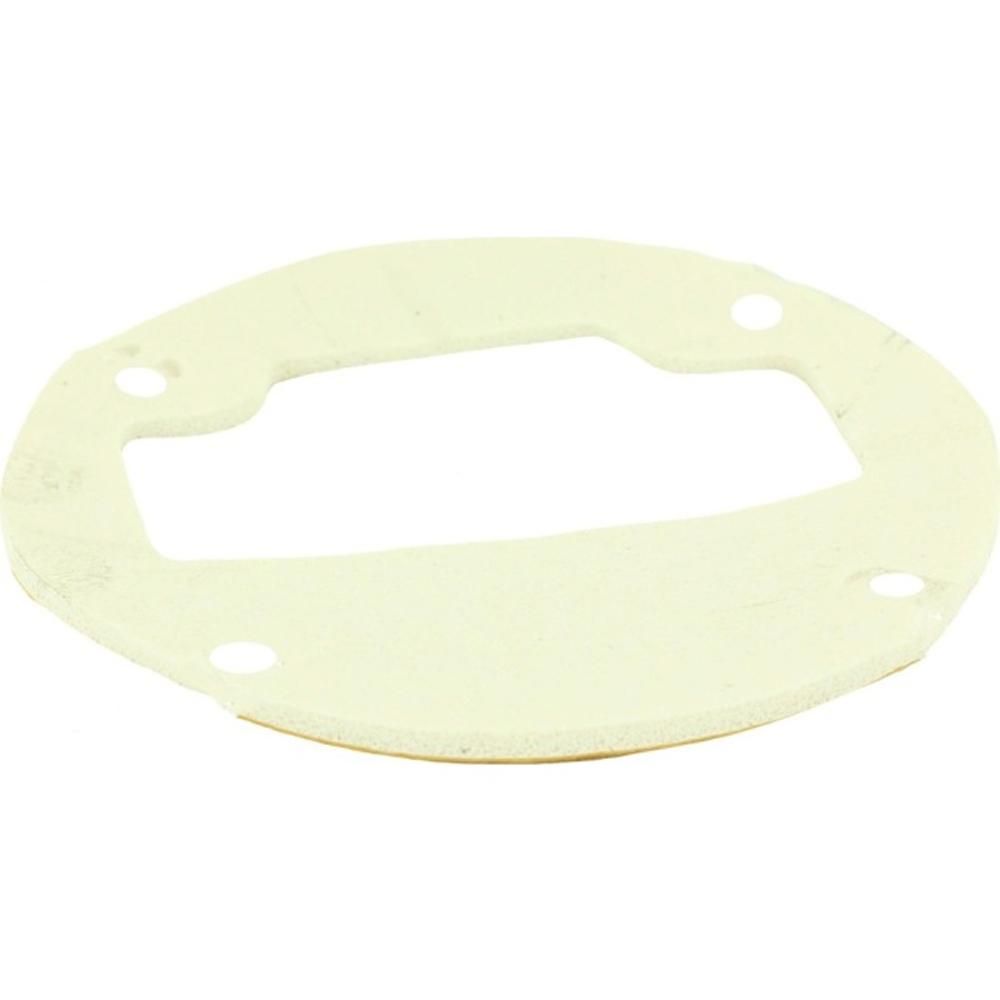

Ideal Fan Gasket 177479
Ideal 177479 fan gasket for Evomax, Evomax 2 and Instinct Heat commercial boilers, sealing the fan mounting face against flue gas and air leakage.
At a glance
- Part type: Gaskets, O-rings, Seals & Washers
- Also known as 1782759
£10.78
£8.98 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177479 is a fan gasket used on Ideal Commercial gas boilers. It sits between the fan assembly and its mounting face, forming a compression seal that keeps the air intake and flue gas paths contained at that joint. The gasket is a service item: heat, vibration and flue gas condensate gradually harden and flatten the material, so it is replaced whenever the fan is removed or refitted.
Signs this part needs replacing
- Visible cracking, flattening or perishing of the gasket material when the fan is removed
- Soot staining or dark tracking around the fan mounting face
- Combustion readings that drift or fail to settle after servicing
- Whistling or a change in fan note caused by leakage at the joint
- Repeated lockouts or flame supervision faults following fan work
Before you order
- Confirm the boiler model and GC number against the compatibility list, as the same part number covers several Evomax and Instinct Heat variants
- Check the existing gasket against the alternative number 1782759 if the appliance has been serviced previously
- Replace the gasket whenever the fan is disturbed, as a compressed gasket will not reseal reliably
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 177479 |
|---|---|
| Barcode / EAN | 5022141774799 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782759 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL EVOMAX 150 | 41-750-39A | 41-750-39A | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW LPG | 41-796-38 | 41-796-38 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW NG | 41-796-31 | 41-796-31 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 150KW NG | 41-796-32 | 41-796-32 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 120 | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 150 | — | — | — |
