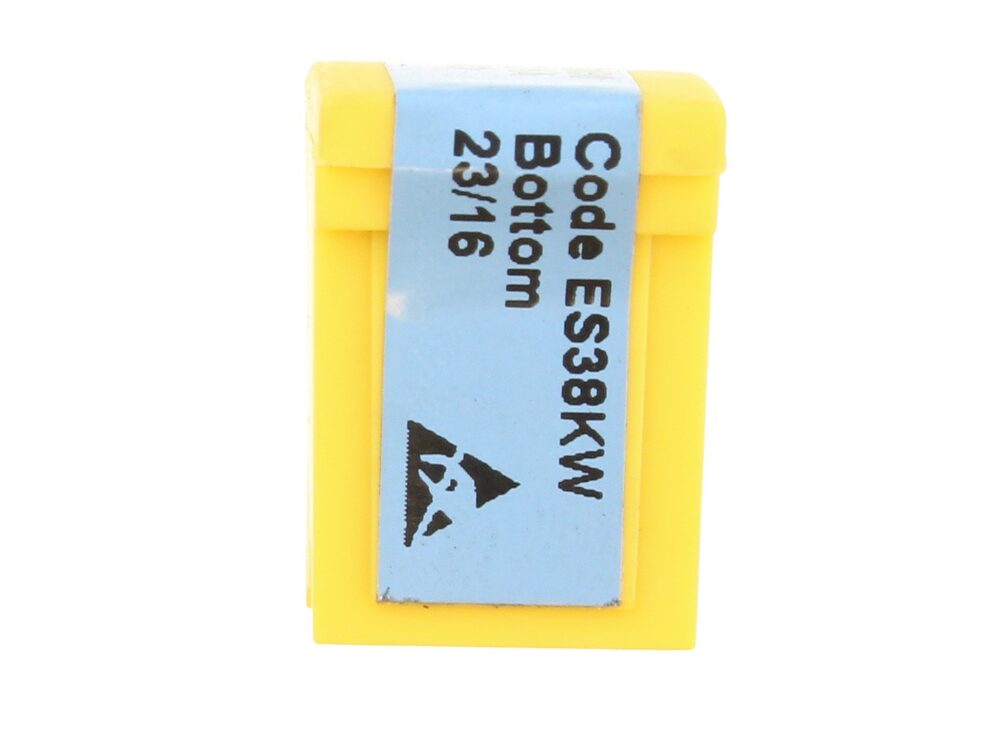

Ideal Printed Circuit Board Kit Logic Code Combi ES38 177322
Ideal 177322 BCC printed circuit board kit for Logic Code Combi ES26, ES38 and Combi 36 boilers; alternative number 8901801.
At a glance
- Part type: Printed circuit board kit (BCC kit)
- Appliance family: Logic Code Combi
- Also known as 8901801
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£34.54
£28.78 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177322 is a printed circuit board kit (BCC kit) supplied by Ideal for the Logic Code Combi range. It forms the control electronics of the appliance, handling boiler sequencing, modulation and the safety interlocks that govern ignition and burner operation. The board is supplied as a kit rather than a bare PCB, so it is intended for direct replacement of the original control assembly when the existing board has failed.
Signs this part needs replacing
- The boiler has no display or no response when a demand is applied.
- The appliance locks out repeatedly and will not reset from the control panel.
- Fault codes relating to the control board appear on the display.
- The boiler fires erratically, short-cycles or fails to modulate correctly.
- Visible damage, scorching or moisture tracking on the existing board.
Before you order
- Check the GC number and serial plate on the appliance to confirm the model before ordering.
- Confirm the existing board carries the number 177322 or the alternative number 8901801.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board kit |
|---|---|
| Appliance family | Logic Code Combi |
Compliance
| Manufacturer part number (MPN) | 177322 |
|---|---|
| Barcode / EAN | 5022141773228 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8901801 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC CODE COMBI ES26 | — | — | — | |
| IDEAL LOGIC CODE COMBI 36 | 47-348-76 | 47-348-76 | — | — |
| IDEAL LOGIC CODE COMBI ES38 | 47-349-06 | 47-349-06 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
