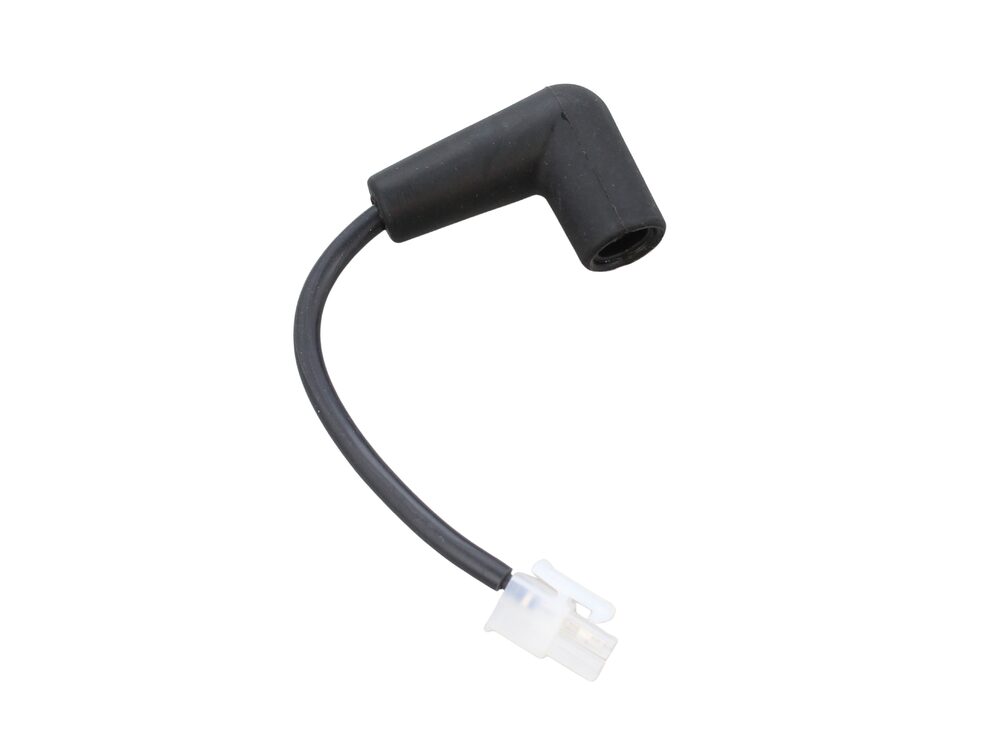

Ideal Detection Lead 176997
Ideal 176997 detection lead for Ideal Vogue C and S series boilers, part of the cables, leads and wiring harnesses range.
At a glance
- Part type: HT leads / detection lead
- Appliance family: Ideal Vogue
- Also known as 1782549
£21.48
£17.90 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176997 is a detection lead used inside Ideal Vogue boilers. It forms part of the boiler's cables, leads and wiring harnesses, carrying the signal from the flame detection circuit back to the control board so the appliance can confirm a burner is lit and running correctly. It is supplied under the Ideal Spares brand and is listed against the Vogue C and S ranges.
Signs this part needs replacing
- The boiler attempts to ignite but fails to confirm a flame and locks out
- Repeated ignition cycles with no sustained burn
- Intermittent lockout or fault codes linked to flame detection
- Visible damage to the lead, such as cracked, brittle or heat-affected insulation
- A loose, corroded or poorly seated connector at the detection electrode or board end
Before you order
- Check the GC number on the appliance data badge against the compatibility table below
- Confirm the boiler model and, where available, the serial number before ordering
- Cross-reference the alternative part number 1782549 if you are matching against older stock records
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176997 |
|---|---|
| Barcode / EAN | 5022141769979 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782549 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL IDEAL : VOGUE C32 | — | — | — | |
| IDEAL IDEAL : VOGUE C40 | — | — | — | |
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL IDEAL : VOGUE S18 | — | — | — | |
| IDEAL IDEAL : VOGUE S26 | — | — | — | |
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL VOGUE C26 | 47-348-99 | 47-348-99 | — | — |
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
Showing 10 of 36 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 (GC 47-348-99), VOGUE C32 (GC 47-348-98), VOGUE C40 (GC 47-348-97)
manualmanualIDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 (GC 41-750-56), VOGUE S18 (GC 41-750-55), VOGUE S26 (GC 41-750-54), VOGUE S32 (GC 41-750-53)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
