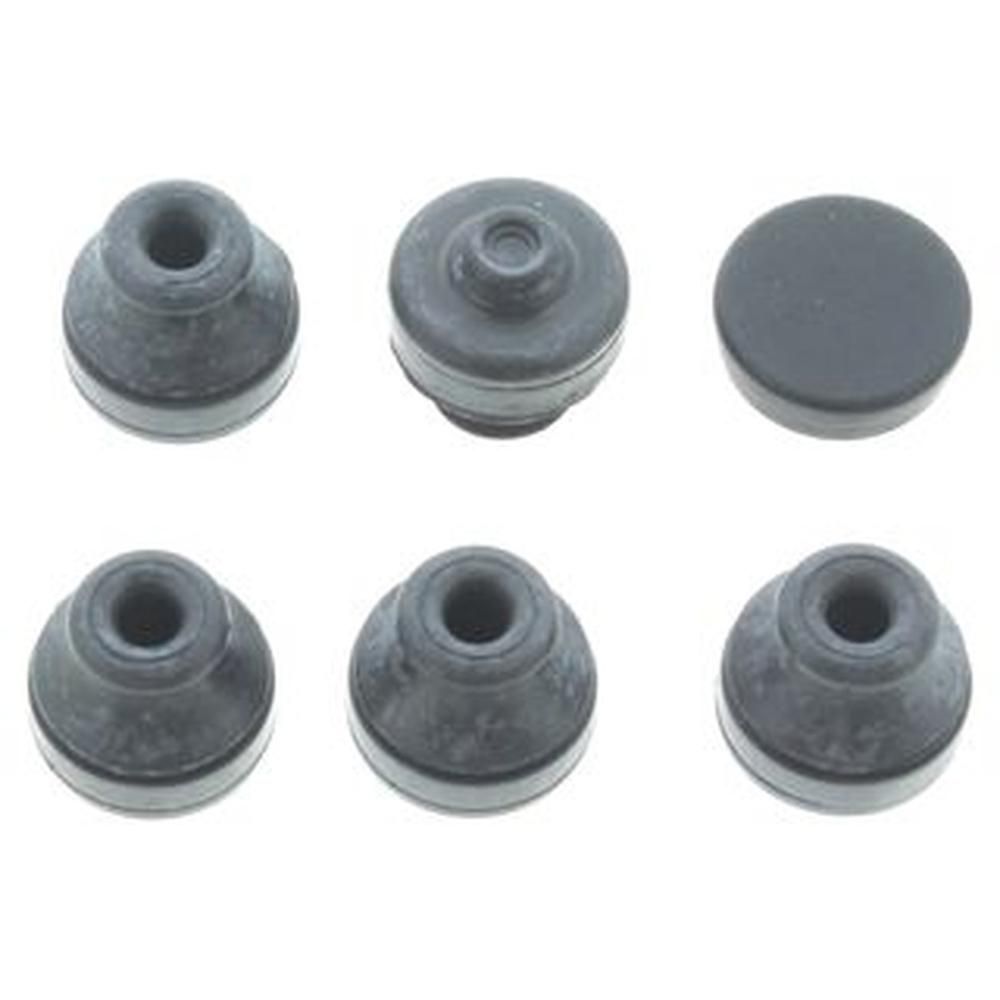

Ideal Chassis Grommet 176972
Ideal chassis grommet, part 176972, for Vogue C and S series boilers; protects and seals pipe, cable and hose entries through the chassis panel.
At a glance
- Part type: Gaskets, o-rings, seals and washers
- Also known as 1782535
£17.06
£14.22 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal chassis grommet, part number 176972, is a sealing bush that sits in the chassis panel where pipework, cable or hose passes through. It is an Ideal spare listed under gaskets, o-rings, seals and washers, and is used across the Vogue family of domestic gas boilers. Its job is to cushion the opening, stop the panel edge chafing the component passing through it, and close off the gap around that entry point.
Signs this part needs replacing
- The grommet is split, cracked or has hardened with heat, so it no longer grips the panel opening.
- Cable, pipe or hose passing through the chassis shows scuffing or chafing where it contacts the bare panel edge.
- Water, flue gases or air are tracking through the chassis opening around the entry point.
- Rattling or buzzing from the casing area where pipework is touching the panel edge.
- The grommet is missing or displaced after earlier service or repair work on the boiler.
Before you order
- Check the model and GC number on the boiler data badge against the compatibility list to confirm the grommet suits your appliance.
- Part 176972 is also listed under 1782535; either number identifies the same chassis grommet.
- Inspect adjacent seals and gaskets while the chassis is open, as these are often disturbed at the same time.
Mechanical
| Part type | Grommets |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176972 |
|---|---|
| Barcode / EAN | 5022141769726 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782535 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL IDEAL : VOGUE C32 | — | — | — | |
| IDEAL IDEAL : VOGUE C40 | — | — | — | |
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL IDEAL : VOGUE S18 | — | — | — | |
| IDEAL IDEAL : VOGUE S26 | — | — | — | |
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL LOGIC HEAT 12 | 41-399-99 | 41-399-99 | — | — |
| IDEAL LOGIC HEAT 15 | 41-409-93 | 41-409-93 | — | — |
| IDEAL LOGIC HEAT 18 | 41-409-94 | 41-409-94 | — | — |
Showing 10 of 46 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT H12 (GC 41-796-17), LOGIC MAX HEAT H15 (GC 41-796-18), LOGIC MAX HEAT H18 (GC 41-796-19), LOGIC MAX HEAT H24 (GC 41-796-20), LOGIC MAX HEAT H30 (GC 41-796-21)
manualmanualIDEAL appliance manual — VOGUE C26 (GC 47-348-99), VOGUE C32 (GC 47-348-98), VOGUE C40 (GC 47-348-97)
manualmanualIDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 (GC 41-750-56), VOGUE S18 (GC 41-750-55), VOGUE S26 (GC 41-750-54), VOGUE S32 (GC 41-750-53)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
