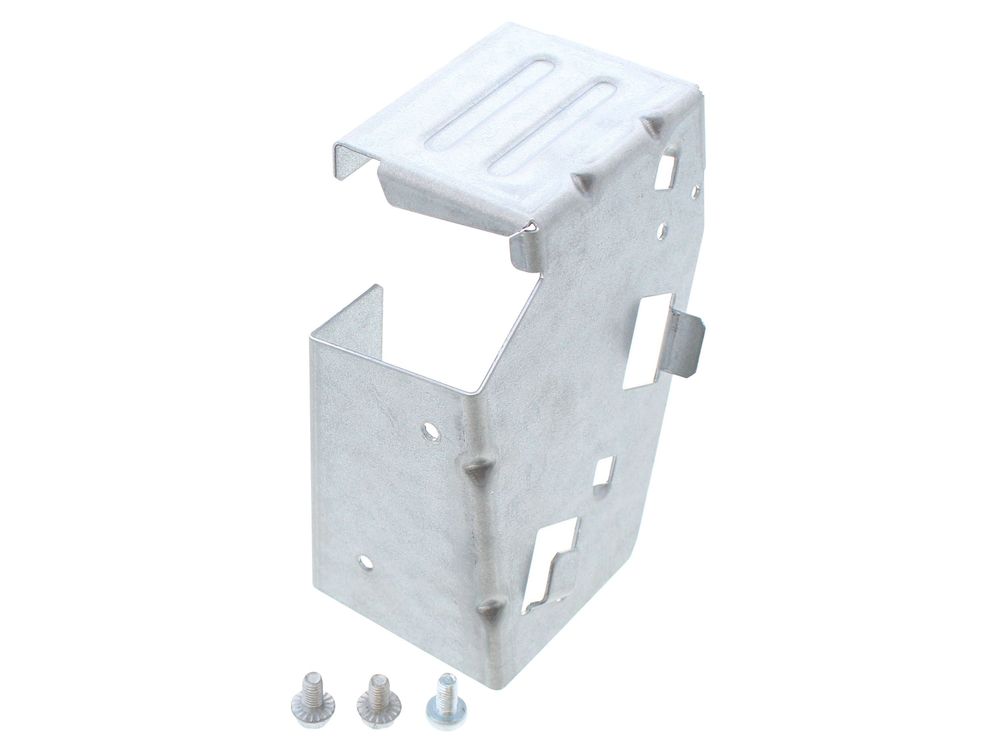

Ideal Ignition Bracket 176971

The Ideal 176971 is an ignition bracket for Ideal Vogue gas boilers. It mounts inside the combustion area and holds the ignition electrode at the correct distance and angle from the burner so the spark can jump reliably and light the gas.

Because the bracket sits close to the flame, it is exposed to repeated heat cycling. Distortion or corrosion here changes the electrode gap and is a common cause of ignition faults.

• The boiler runs through its ignition sequence but fails to light and goes to lockout
• A spark can be heard but the flame is not established, or ignition is intermittent
• The ignition electrode is loose, or its gap to the burner has drifted
• The bracket shows corrosion, cracking, distortion or heat discolouration
• Ignition faults clear briefly after reseating the electrode, then return

• Check the appliance data badge and confirm the model and GC number against the compatibility list before ordering.
• Vogue C and S variants carry different GC numbers, so match the exact variant rather than the series alone.
• The number 1782547 may appear on older documentation for this same bracket.
• Inspect the ignition electrode and its lead while the bracket is off the appliance, as these are often disturbed during removal.
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
