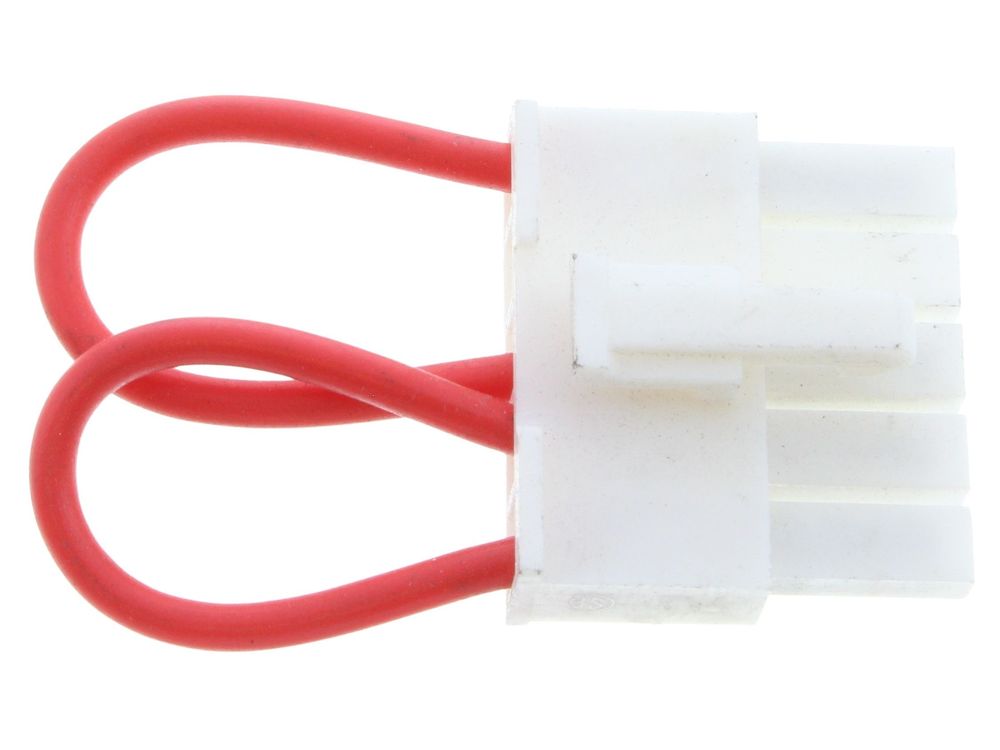

Ideal Timer Link Harness Vogue 176927
Ideal timer link wiring harness for Vogue series boilers, part 176927. Connects timer to control board for reliable heating schedules.
At a glance
- Part type: Wiring
- Also known as 1782529
£14.72
£12.27 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Timer Link Harness is a wiring component manufactured by Ideal for the Vogue series of boilers. It links the timer to the main control board, enabling correct operation of heating schedules. This part is essential for maintaining reliable performance of the appliance.
Signs this part needs replacing
- Timer fails to operate or loses settings
- Intermittent heating or no response from timer
- Error codes relating to timer communication
- Visible damage or wear to the harness connectors
- Loose or corroded connections at the timer or PCB
Before you order
- Check your boiler's GC number and model against the compatibility list
- Confirm the part number 176927 or alternative 1782529
- Inspect the existing harness for damage before ordering
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176927 |
|---|---|
| Barcode / EAN | 5022141769276 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782529 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL IDEAL : VOGUE C32 | — | — | — | |
| IDEAL IDEAL : VOGUE C40 | — | — | — | |
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL IDEAL : VOGUE S18 | — | — | — | |
| IDEAL IDEAL : VOGUE S26 | — | — | — | |
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL VOGUE C26 | 47-348-99 | 47-348-99 | — | — |
| IDEAL VOGUE C32 | 47-348-98 | 47-348-98 | — | — |
| IDEAL VOGUE C40 | 47-348-97 | 47-348-97 | — | — |
Showing 10 of 15 compatible appliances.
