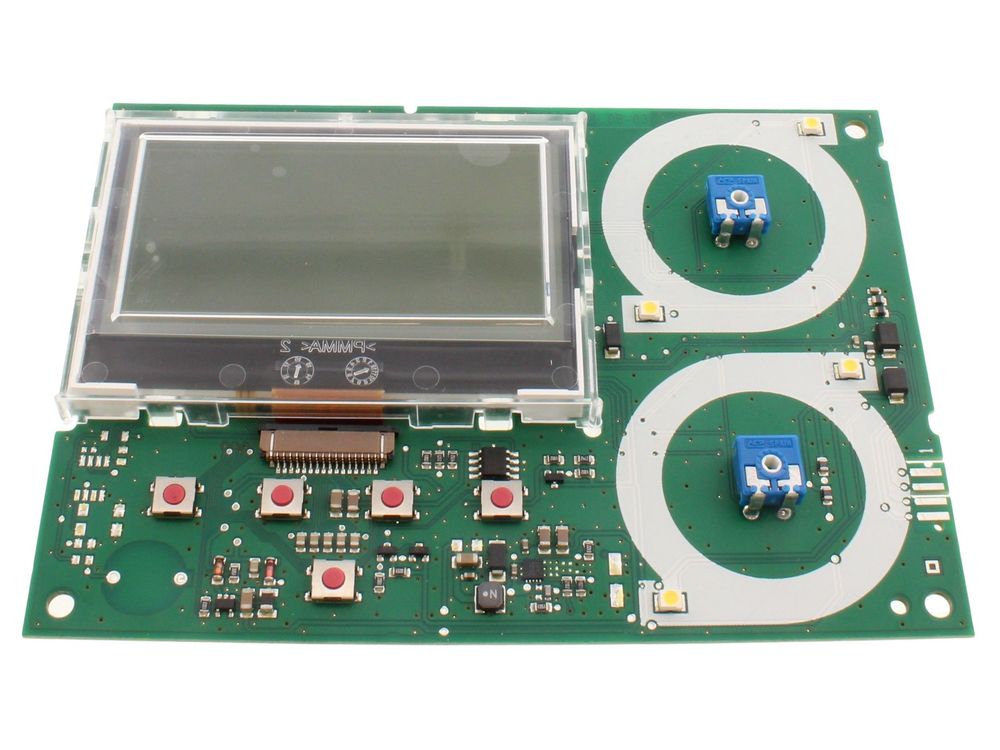

Ideal CUI Board 176917
Ideal 176917 CUI board for Ideal Vogue boilers, a printed circuit board handling the user interface and control functions.
At a glance
- Part type: Printed circuit board (CUI board)
- Also known as 1782695
£356.80
£297.33 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176917 is a CUI (central user interface) printed circuit board used across the Ideal Vogue range. It sits between the user controls and the boiler's main control board, carrying the display and interface signals that keep heating and hot water operation consistent. It is supplied as an Ideal Spares component and is listed under the printed circuit board (PCB) spare part category.
Signs this part needs replacing
- The boiler locks out or fails to fire, with the fault returning after a reset.
- The display is blank, flickering or showing garbled or incomplete information.
- Buttons and dials on the user interface stop responding or respond intermittently.
- Heating or hot water demand is not registered even though the boiler is powered.
- Repeated error codes appear that point to control or communication faults rather than a gas or water-side issue.
Before you order
- Confirm the boiler model and GC number against the compatibility list, as the same appliance family can use more than one board revision.
- Check the board currently fitted against part number 176917 and the alternative number 1782695 before ordering.
- Inspect the wiring harness and plugs for heat damage or corrosion, as a poor connection can mimic a failed board.
- PCB replacement involves mains voltage and boiler controls; work should be carried out by a competent engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176917 |
|---|---|
| Barcode / EAN | 5022141769177 |
| Commodity code | 8403 90 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782695 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL IDEAL : VOGUE C32 | — | — | — | |
| IDEAL IDEAL : VOGUE C40 | — | — | — | |
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL IDEAL : VOGUE S18 | — | — | — | |
| IDEAL IDEAL : VOGUE S26 | — | — | — | |
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL VOGUE C26 | 47-348-99 | 47-348-99 | — | — |
| IDEAL VOGUE C32 | 47-348-98 | 47-348-98 | — | — |
| IDEAL VOGUE C40 | 47-348-97 | 47-348-97 | — | — |
Showing 10 of 15 compatible appliances.
