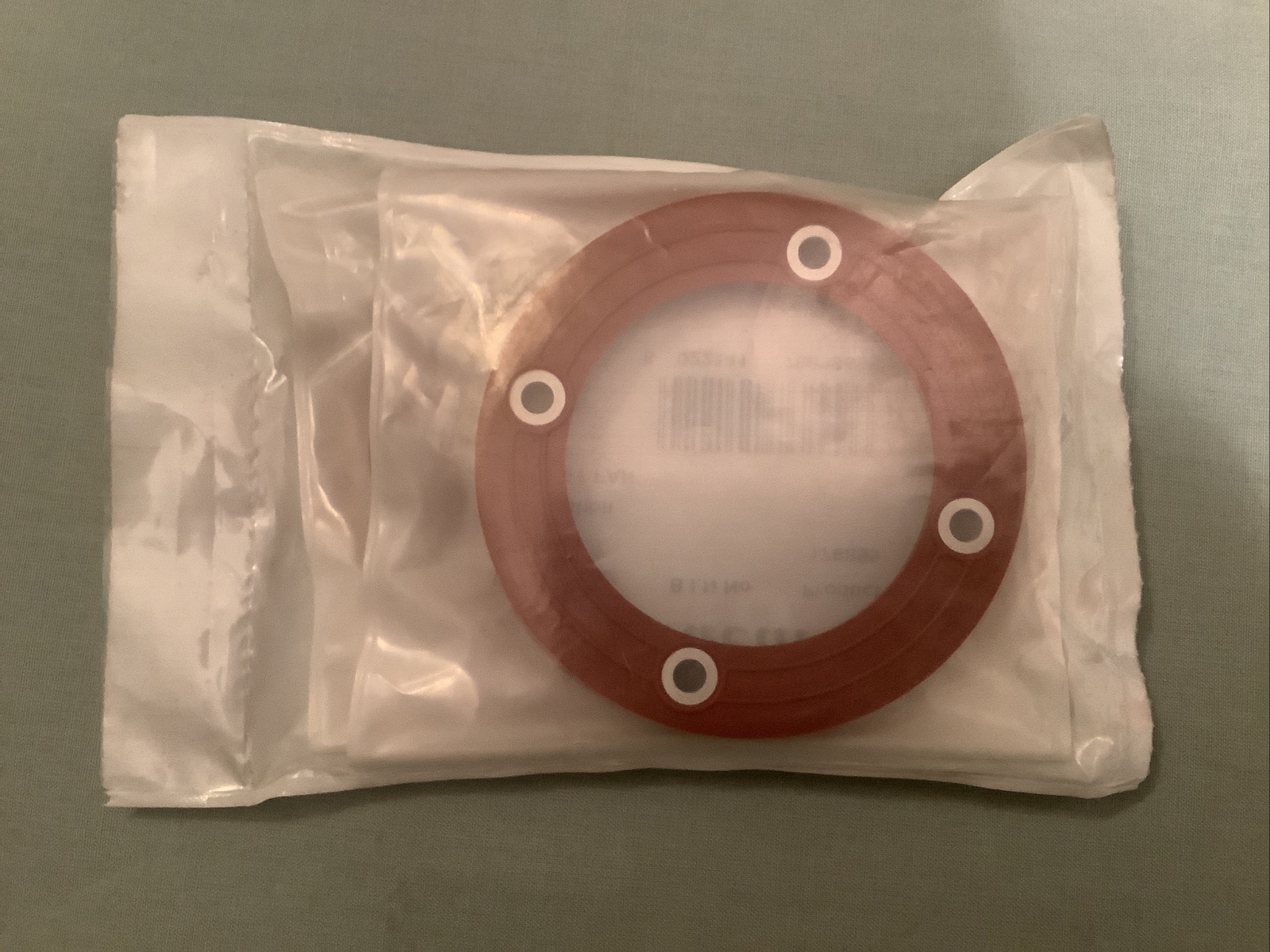

Ideal Fan Gasket 176899
Ideal 176899 fan gasket for Vogue boilers, sealing the fan mounting joint; alternative part number 1782563.
At a glance
- Also known as 1782563
£26.34
£21.95 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176899 is a fan gasket made by Ideal for its Vogue range of domestic boilers. It sits at the fan mounting face, sealing the joint so that combustion air and flue gases travel through the intended path rather than escaping into the casing. The gasket is a service item: it is disturbed whenever the fan is removed, and a flattened or perished seal will not reseal reliably once refitted.
Signs this part needs replacing
- A whistling or high-pitched note around the fan housing while the boiler is running
- Soot marks, staining or condensate weeping at the fan mounting face
- Flue gas detected at the joint with a combustion analyser, or combustion readings drifting from the commissioned figures
- The gasket feels hard, flattened, cracked or brittle once the fan is lifted clear
- Fan noise or vibration that returns shortly after the fan has been refitted
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the boiler model
- Confirm the part number against the old gasket or the boiler parts list; 1782563 is an alternative number for the same item
- Inspect the fan mounting face and any other seals within the fan assembly while access is available, and replace anything that has hardened or deformed
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176899 |
|---|---|
| Barcode / EAN | 5022141768996 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782563 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL IDEAL : VOGUE C32 | — | — | — | |
| IDEAL IDEAL : VOGUE C40 | — | — | — | |
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL IDEAL : VOGUE S18 | — | — | — | |
| IDEAL IDEAL : VOGUE S26 | — | — | — | |
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL VOGUE C26 | 47-348-99 | 47-348-99 | — | — |
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
Showing 10 of 36 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 (GC 47-348-99), VOGUE C32 (GC 47-348-98), VOGUE C40 (GC 47-348-97)
manualmanualIDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 (GC 41-750-56), VOGUE S18 (GC 41-750-55), VOGUE S26 (GC 41-750-54), VOGUE S32 (GC 41-750-53)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
