Ideal
Ideal Fan Assembly 176898
Ideal 176898 fan assembly for Vogue C26, C32, C40, S15 and S18 boilers, also listed under alternative number 1782699.
At a glance
- Part type: Fan assembly
- Also known as 1782699
£305.60
£254.67 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

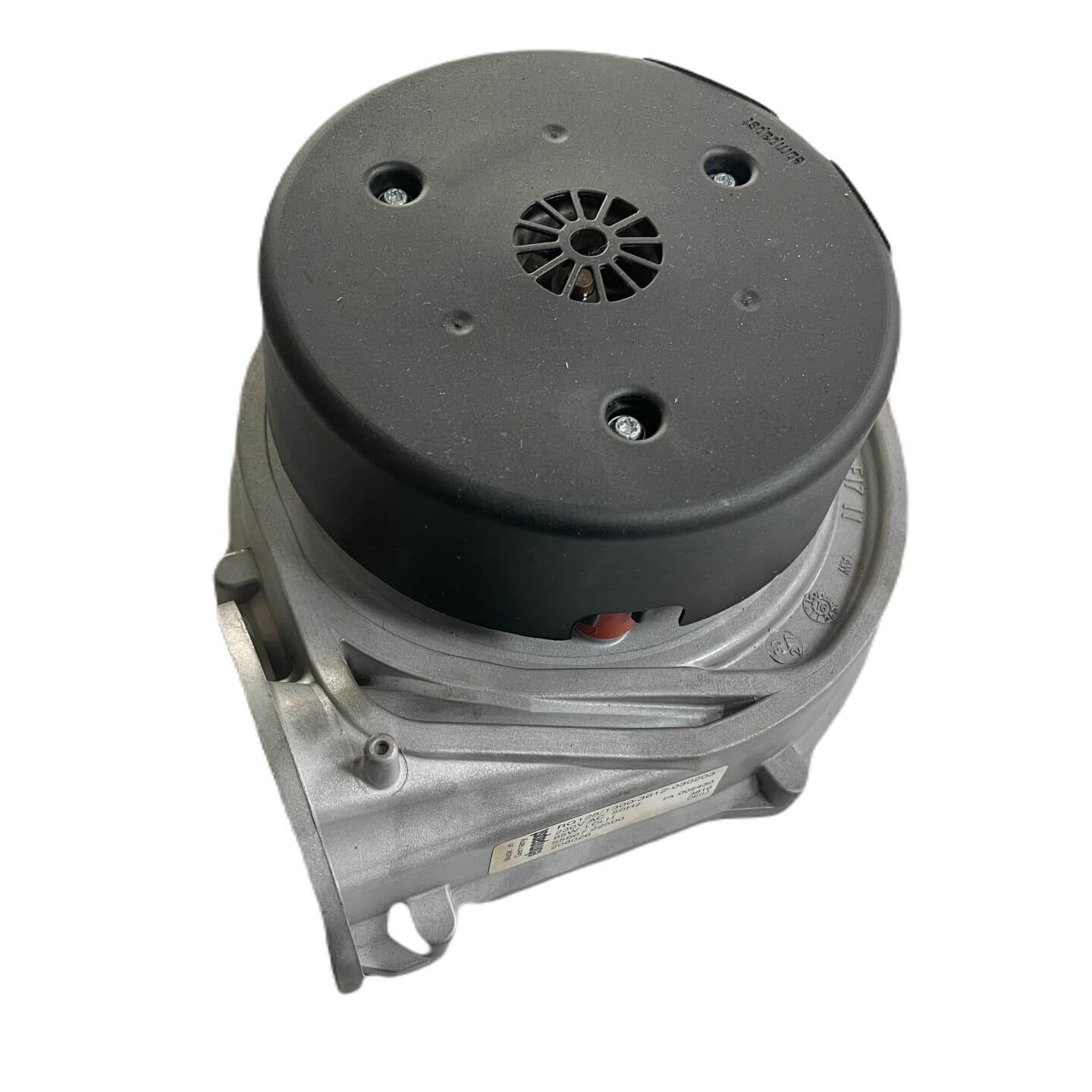

The Ideal 176898 is a fan assembly supplied for Ideal Vogue gas boilers. It moves the products of combustion through the heat exchanger and out to the flue, and it also feeds combustion air into the burner chamber. Because the fan sits at the heart of the combustion circuit, a worn or failing unit shows up quickly as noise, unstable ignition or a lockout.
Signs this part needs replacing
- Grinding, whining or rumbling noise from the fan area, often loudest at ignition or during modulation
- Boiler locking out or failing to fire, with a fan or air pressure related fault code on the display
- Repeated ignition attempts followed by shutdown, or the boiler dropping into a safe lockout shortly after start-up
- Overheating or short cycling where airflow through the appliance is reduced
- Visible damage, stiffness or play when the fan is turned by hand during a service
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the fan is correct for your model
- Note the alternative number 1782699, which may appear on older documentation or on the part already fitted
- Inspect the fan gasket and sealing washers at the same time, as these are disturbed when the assembly is removed
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176898 |
|---|---|
| Barcode / EAN | 5022141768989 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782699 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL IDEAL : VOGUE C32 | — | — | — | |
| IDEAL IDEAL : VOGUE C40 | — | — | — | |
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL IDEAL : VOGUE S18 | — | — | — | |
| IDEAL IDEAL : VOGUE S26 | — | — | — | |
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL VOGUE C26 | 47-348-99 | 47-348-99 | — | — |
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
Showing 10 of 36 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 (GC 47-348-99), VOGUE C32 (GC 47-348-98), VOGUE C40 (GC 47-348-97)
manualmanualIDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 (GC 41-750-56), VOGUE S18 (GC 41-750-55), VOGUE S26 (GC 41-750-54), VOGUE S32 (GC 41-750-53)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
manualNo technical questions yet for this part.
