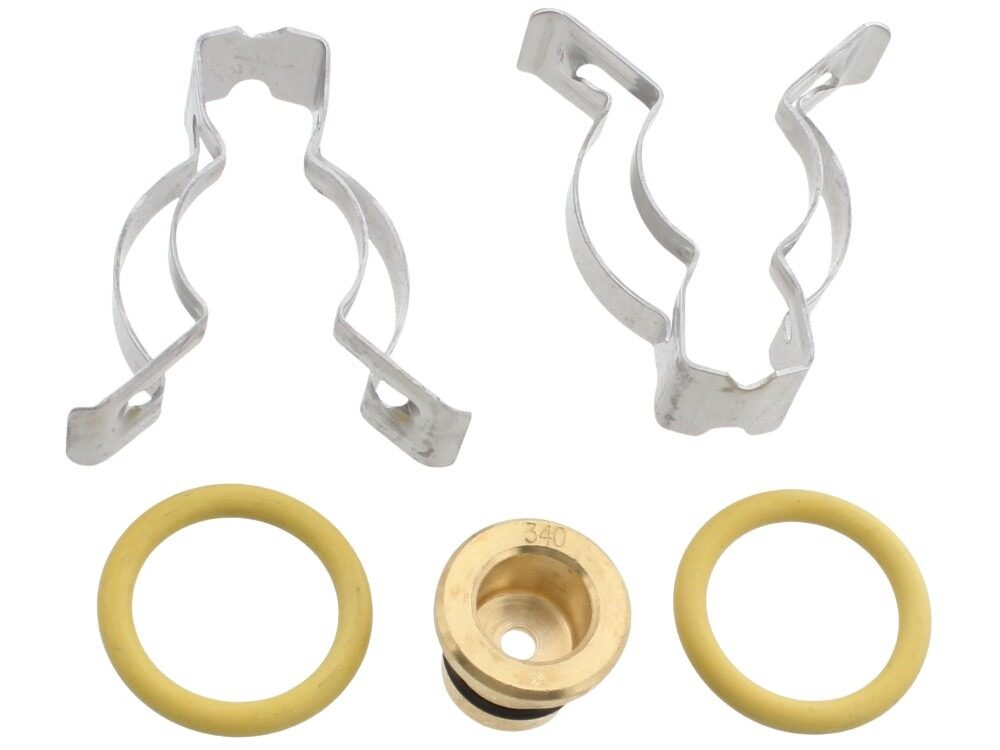

Ideal Injector Kit Dia 3.40 System 15 176893
Ideal 176893 injector kit with a 3.40 mm injector for Vogue S15 and Vogue Max System 15 boilers, metering the gas supply into the burner.
At a glance
- Part type: Injector kit
- Appliance family: Vogue System 15
- Also known as 1782577
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£25.74
£21.45 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176893 is an injector kit carrying a 3.40 mm diameter injector, produced by Ideal for the Vogue range of domestic and commercial boilers. The injector sits in the gas train and controls the volume of gas delivered to the burner, so the appliance burns at the rate its commissioning data expects. It is supplied as a kit rather than a loose injector, which suits the System 15 variants listed below.
Signs this part needs replacing
- The boiler lights but the flame is weak, uneven or lifts away from the burner.
- Combustion analyser readings drift outside the figures recorded at commissioning.
- Sooting, discolouration or a heavy smell around the burner area.
- Repeated lockouts or flame supervision faults that trace back to the gas train.
- The injector is visibly blocked, corroded or has been damaged during servicing.
Before you order
- Match the GC number on the appliance data badge against the list above before ordering, as several Vogue S15 variants use different injector sizes.
- Confirm the injector diameter stamped on the existing part is 3.40 mm.
- Note the alternative part number 1782577 in case your documentation quotes it instead.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Injector kit |
|---|---|
| Appliance family | Vogue System 15 |
Compliance
| Manufacturer part number (MPN) | 176893 |
|---|---|
| Barcode / EAN | 5022141768934 |
| Commodity code | 8416 90 00 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1782577 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL VOGUE MAX SYSTEM 15 | 41-796-22 | 41-796-22 | — | — |
| IDEAL VOGUE S15 | 41-750-56 | 41-750-56 | — | — |
| IDEAL VOGUE S15 GEN2 | 41-750-88 | 41-750-88 | — | — |
| IDEAL VOGUE S15 IE GEN2 | 41-750-97 | 41-750-97 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
