Ideal

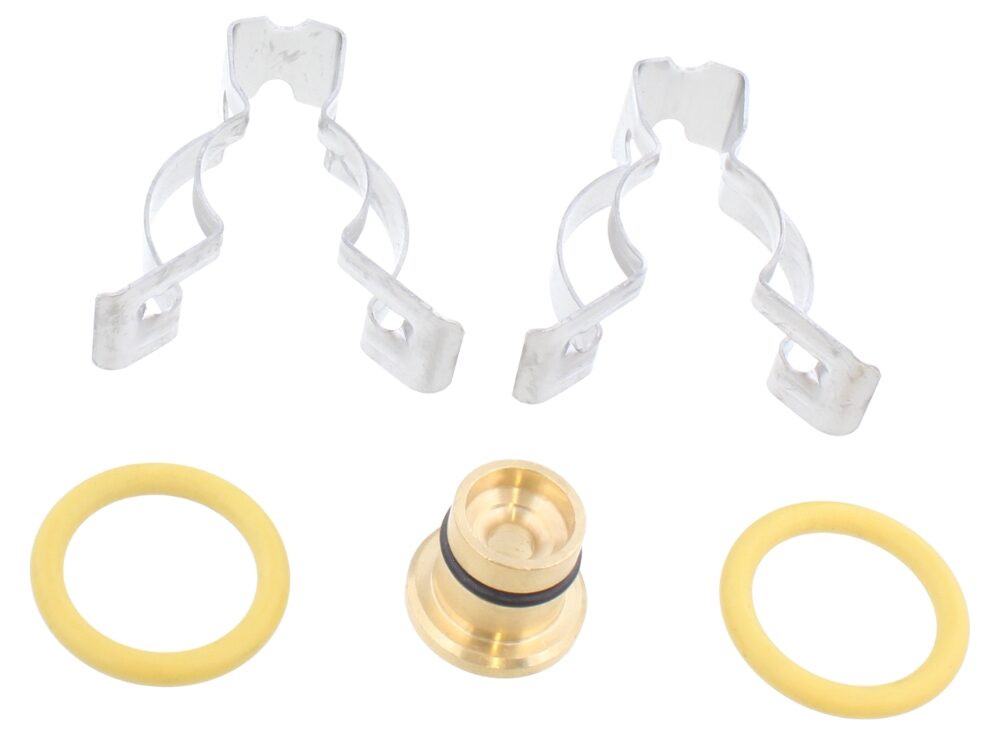

Ideal Injector Kit Dia 4.80 System 32 176891
Ideal 176891 injector kit, 4.80 mm diameter, for Vogue S32 and Vogue Max System 32 boilers in the System 32 range.
At a glance
- Part type: Injector kit
- Also known as 1782579
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£27.02
£22.52 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176891 is an injector kit with a 4.80 mm diameter, listed by Ideal for the System 32 models in the Vogue range. The injector sits in the gas train and meters the gas supply into the burner, so its bore size directly affects combustion and heat input. It is supplied as a kit rather than a loose injector, making it the correct replacement item for the System 32 designation.
Signs this part needs replacing
- Burner flame that is weak, uneven or visibly the wrong colour
- Sooting or discolouration around the burner or heat exchanger
- Repeated ignition failure or lockout on start-up
- Combustion readings that fall outside the expected range for the appliance
- Blocked or damaged injector bore found during a service
Before you order
- Confirm the appliance model and GC number against the compatibility list, as several Vogue S32 variants use this kit
- Check the existing injector diameter and the System 32 marking before fitting
- Note the alternative number 1782579 when cross-referencing older documentation
- Have the appliance recommissioned and combustion checked after fitting
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Injector kit |
|---|
Compliance
| Manufacturer part number (MPN) | 176891 |
|---|---|
| Barcode / EAN | 5022141768910 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782579 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL VOGUE MAX SYSTEM 32 | 41-796-25 | 41-796-25 | — | — |
| IDEAL VOGUE S32 | 41-750-53 | 41-750-53 | — | — |
| IDEAL VOGUE S32 GEN2 | 41-750-91 | 41-750-91 | — | — |
| IDEAL VOGUE S32 IE GEN2 | 41-796-01 | 41-796-01 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
