Ideal Ignition Lead 176882

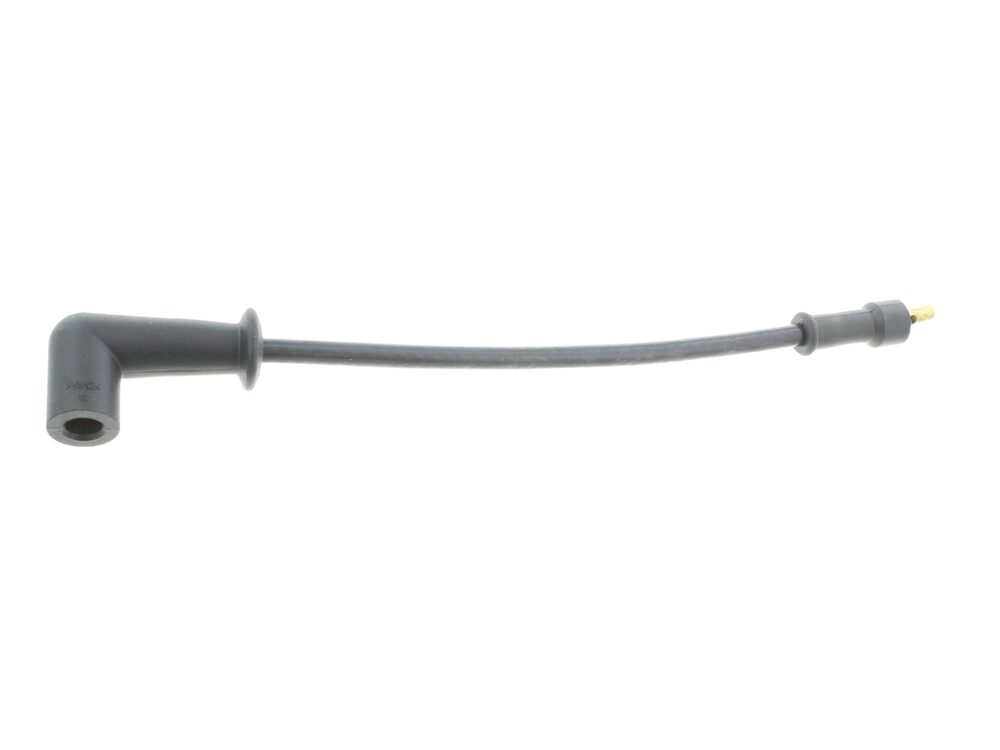

Ideal 176882 ignition (HT) lead for Ideal Vogue gas boilers, carrying the high-tension spark to the ignition electrode.
At a glance
- Part type: Ignition lead (HT lead)
- Also known as 1782553
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£23.83
£19.86 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176882 is an ignition lead, also known as an HT lead, produced for Ideal gas boilers. It forms part of the ignition circuit, carrying the high-tension spark from the ignition source to the electrode so the burner can light during a demand for heat or hot water. The lead is listed within the Ideal Spares range and is used across the Vogue appliance family.
Signs this part needs replacing
- The boiler fails to ignite and locks out during the start-up sequence
- No spark is visible at the electrode when the ignition cycle runs
- The lead insulation is cracked, brittle, scorched or otherwise heat-damaged
- Ignition is intermittent, with repeated lockouts or failed light-ups
- Arcing or tracking is visible along the length of the lead
Before you order
- Check the GC number or the rating plate on the appliance to confirm the model appears in the compatibility list.
- The alternative number 1782553 may be marked on the existing lead or its packaging.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176882 |
|---|---|
| Barcode / EAN | 5022141768828 |
| Commodity code | 8544 60 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782553 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL IDEAL : VOGUE C32 | — | — | — | |
| IDEAL IDEAL : VOGUE C40 | — | — | — | |
| IDEAL IDEAL : VOGUE S15 | — | — | — | |
| IDEAL IDEAL : VOGUE S18 | — | — | — | |
| IDEAL IDEAL : VOGUE S26 | — | — | — | |
| IDEAL IDEAL : VOGUE S32 | — | — | — | |
| IDEAL VOGUE C26 | 47-348-99 | 47-348-99 | — | — |
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
Showing 10 of 36 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 (GC 47-348-99), VOGUE C32 (GC 47-348-98), VOGUE C40 (GC 47-348-97)
manualmanualIDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 (GC 41-750-56), VOGUE S18 (GC 41-750-55), VOGUE S26 (GC 41-750-54), VOGUE S32 (GC 41-750-53)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
