Ideal
Ideal Printed Circuit Board CUI I7/2 Spec 176842

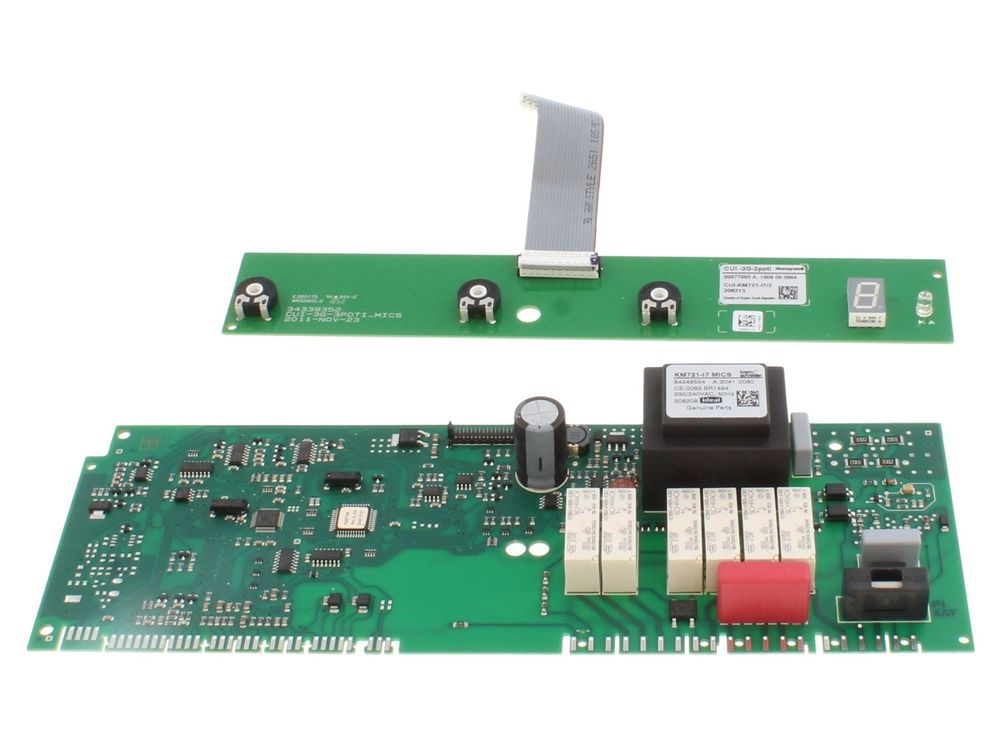

Ideal 176842 printed circuit board and CUI replacement, I7/2 spec, for Classic Combi, Esprit Eco and Exclusive boilers.
At a glance
- Part type: Printed circuit board (PCB) with CUI
- Also known as 1781953
£347.21
£289.34 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176842 is a printed circuit board supplied with a CUI replacement, built to the I7/2 specification. It is the main control board for a range of Ideal combi and heat-only appliances, handling ignition sequencing, fan and pump control, temperature monitoring and the safety interlocks that sit behind them. The board is listed under the Ideal Spares brand and is the direct replacement for the earlier 176484 board.
Signs this part needs replacing
- The boiler fails to fire, or locks out repeatedly with no fault found elsewhere in the ignition or gas train
- A blank, flickering or unresponsive display and control panel
- The fan, pump or diverter valve is not being driven when a demand is present
- Intermittent faults that appear or clear when the board or its connectors are disturbed
- Error codes pointing to control, sensor or communication circuits rather than to a physical component
Before you order
- Match the GC number on the appliance data badge against the compatibility list before ordering
- Confirm the board revision: this unit is the I7/2 specification
- Cross-check the previous number 176484 and the alternative number 1781953 against the board being removed
- Isolate the electrical supply and follow the manufacturer's wiring and commissioning instructions when fitting
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176842 |
|---|---|
| Barcode / EAN | 5022141768422 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 176484, 1781953 |
| Previous numbers | 176484 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 24 COMBI | 47-349-41 | 47-349-41 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL EXCLUSIVE 35 COMBI | 47-349-43 | 47-349-43 | — | — |
| IDEAL INSTINCT 24 | 47-349-09 | 47-349-09 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL INSTINCT 35 | 47-349-11 | 47-349-11 | — | — |
Showing 10 of 17 compatible appliances.
