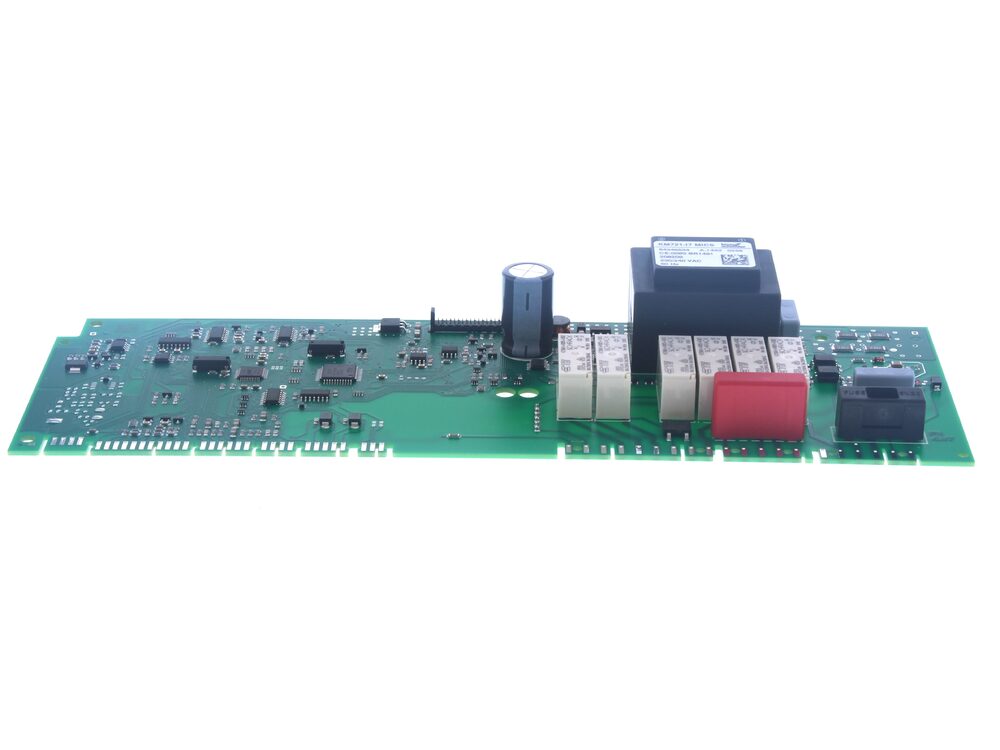

Ideal Primary Printed Circuit Board I7/2 Kit 176830
Ideal Primary Printed Circuit Board I7/2 Kit, part 176830, the central control board for 21 Ideal combi and heat-only boiler models.
At a glance
- Part type: Primary printed circuit board (PCB), I7/2 kit
- Also known as 1782132
£296.34
£246.95 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Primary Printed Circuit Board I7/2 Kit is the central control board for a range of Ideal combi and heat-only boilers. It takes readings from the appliance's sensors, switches and thermostats and uses them to run the ignition, heating and hot water sequences, while enforcing the safety protocols that shut the boiler down when internal readings fall outside normal limits. It is supplied under Ideal part number 176830.
Signs this part needs replacing
- The boiler locks out or displays a fault code shortly after start-up
- No response to a heating or hot water demand from the programmer or thermostat
- A blank, unlit or unresponsive control panel display
- The appliance needs repeated resets to run at all
- Erratic behaviour from the fan, pump or ignition sequence that does not trace back to another component
Before you order
- Check the GC number on the appliance data badge against the list above before ordering
- Confirm the boiler model and, where possible, the serial number
- Cross-reference the alternative part number 1782132 if the original number is not shown on the board
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176830 |
|---|---|
| Barcode / EAN | 5022141768309 |
| Commodity code | 8537 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782132 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 24 COMBI | 47-349-41 | 47-349-41 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL EXCLUSIVE 35 COMBI | 47-349-43 | 47-349-43 | — | — |
| IDEAL INSTINCT 24 | 47-349-09 | 47-349-09 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL INSTINCT 35 | 47-349-11 | 47-349-11 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI 24 (GC 47-349-07), CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 24 (GC 47-348-91), ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 24 COMBI (GC 47-349-41), EXCLUSIVE 30 COMBI (GC 47-349-42), EXCLUSIVE 35 COMBI (GC 47-349-43)
manualmanualIDEAL appliance manual — INSTINCT 24 (GC 47-349-09), INSTINCT 30 (GC 47-349-10), INSTINCT 35 (GC 47-349-11)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 24 (GC 47-348-79), PROCOMBI EXCLUSIVE 30 (GC 47-348-80), PROCOMBI EXCLUSIVE 35 (GC 47-348-81)
manualmanualIDEAL appliance manual — iCOMBI 24 (GC 47-348-82), iCOMBI 30 (GC 47-348-83), iCOMBI 35 (GC 47-348-84)
manualNo technical questions yet for this part.
