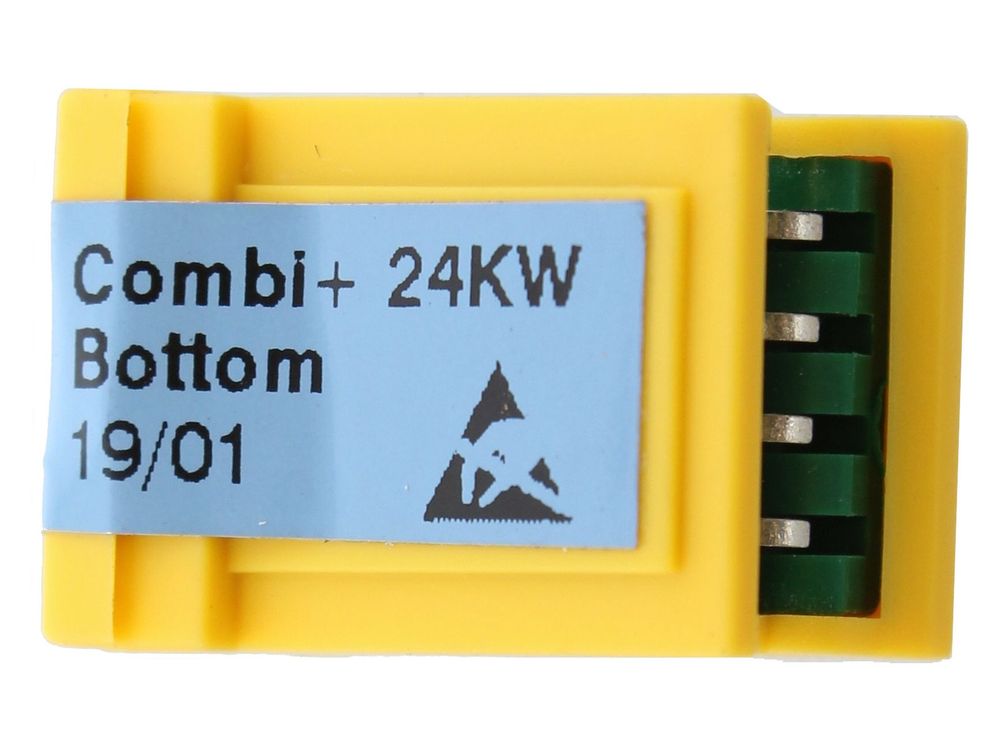

Ideal Printed Circuit Board Kit BCC Combi Plus 24AAX 176804
Ideal 176804 printed circuit board kit for Logic+ Combi 24 and Combi Plus 24AAX appliances, GC 47-348-65, alternative number 1782366.
At a glance
- Part type: Printed circuit board (PCB) kit
- Also known as 1782366
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£34.54
£28.78 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176804 is a printed circuit board (PCB) kit for Ideal combi appliances in the Combi Plus 24AAX and Logic+ Combi 24 range. The board is the control centre of the boiler: it runs the ignition sequence, monitors flame detection, drives the fan and pump, and manages central heating and hot water demand. It also handles the safety interlocks that shut the appliance down when a fault condition is detected.
Signs this part needs replacing
- The boiler fails to fire or goes straight to lockout on a call for heat or hot water.
- The display is blank, unlit or shows no response when the appliance is powered up.
- Repeated fault codes appear that point to the control board rather than a sensor or gas valve.
- The fan, pump or diverter does not run when demand is present.
- The appliance cuts out intermittently or behaves erratically after a period of running.
Before you order
- Check the GC number on the appliance data badge against 47-348-65 and confirm the model before ordering.
- Compare the connector layout and board shape with the unit being replaced, as PCB revisions vary across the range.
- Note the alternative number 1782366, which may be quoted on older paperwork or supplier listings.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176804 |
|---|---|
| GC number | 47-348-65 |
| Barcode / EAN | 5022141768040 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782366 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + COMBI 24 | — | — | — | |
| IDEAL LOGIC + COMBI 24 | 47-348-65 | 47-348-65 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
