Ideal
Ideal Gas Valve Kit 120kW 176777
Ideal 176777 gas valve kit rated for 120kW commercial boilers, including Evomax 120 and Instinct Heat 120 models.
At a glance
- Part type: Gas valve
- Also known as 1782752, N8615
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£453.58
£377.98 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

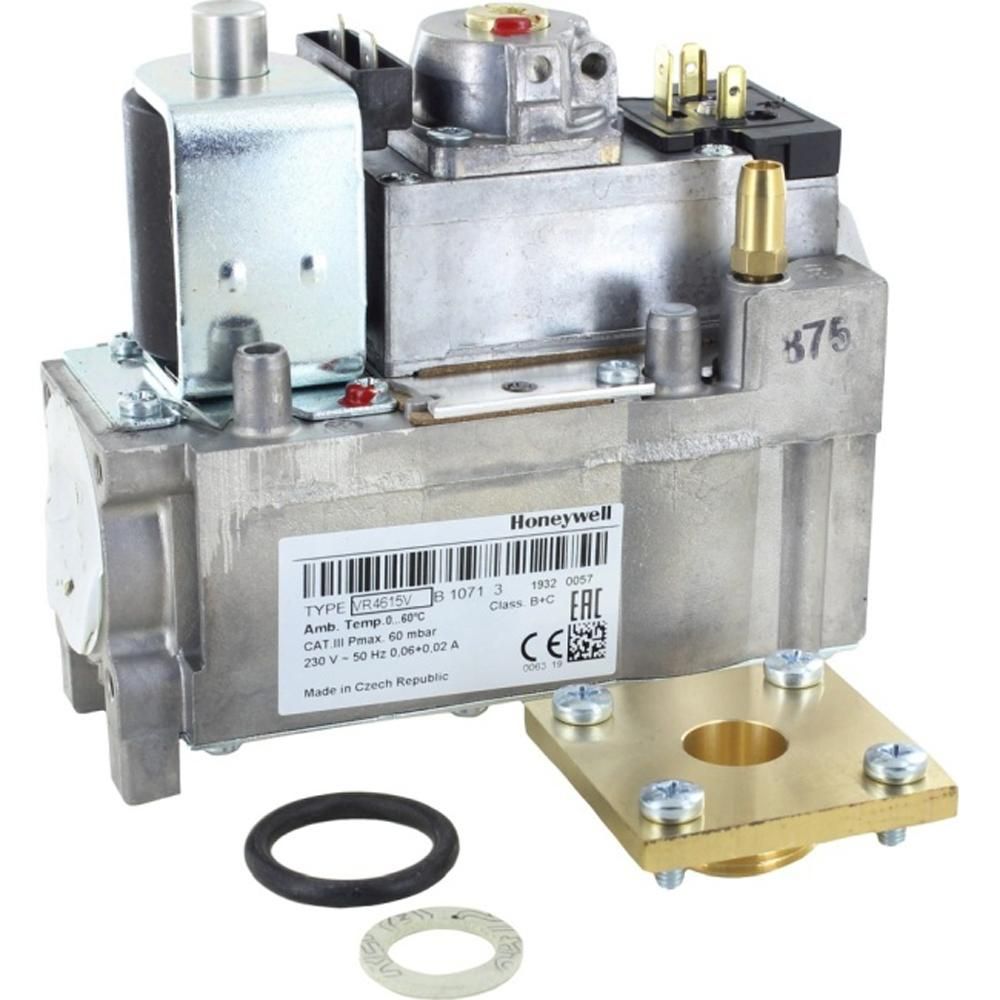

The Ideal 176777 is a gas valve kit rated for 120kW appliances, produced by Ideal for its commercial boiler range. It controls the flow of gas to the burner, allowing the appliance to modulate output and hold a stable flame through the firing cycle. The kit is used on Evomax 120 and Instinct Heat 120 commercial units.
Signs this part needs replacing
- The boiler fails to light, or locks out repeatedly on start-up
- The flame establishes and then drops out shortly afterwards
- The flame is unstable, or the appliance will not modulate smoothly
- A smell of gas is present around the valve or the appliance casing
- Fault codes relating to flame detection or gas supply appear on the controls
Before you order
- Check the GC number on the appliance data badge against 41-750-38A
- Confirm the appliance model against the compatibility list before ordering
- Check whether a gasket or seal kit is required for the appliance being worked on
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176777 |
|---|---|
| GC number | 41-750-38A |
| Barcode / EAN | 5022141767777 |
| Commodity code | 8481 80 85 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1782752, N8615 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 120 | — | — | — |
