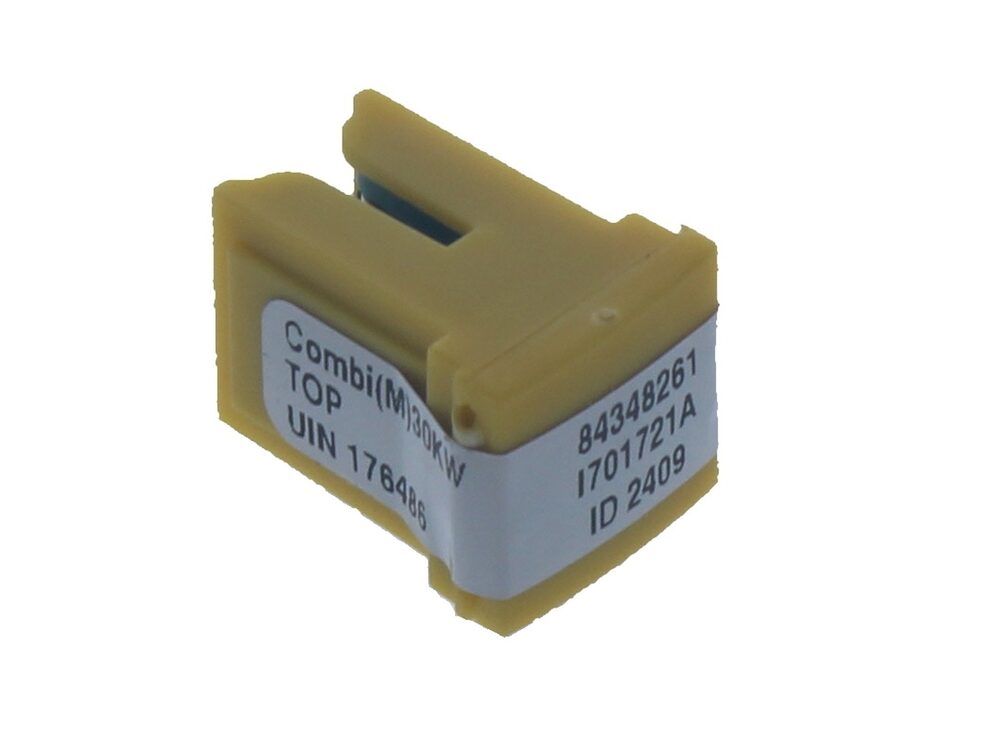

Ideal Chip Card Combi 30 Kit 176666
Ideal chip card kit for Combi 30 boilers, a printed circuit board that controls boiler processes via sensors, switches and thermostats.
At a glance
- Part type: Printed circuit board (chip card)
- Also known as 1781954
£34.54
£28.78 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal chip card kit is a printed circuit board supplied for Ideal Combi 30 appliances. It forms part of the boiler's central control, monitoring and managing the processes that run through the appliance by reading the sensors, switches and thermostats connected to it. The board is listed under the printed circuit board section of the Ideal spares range and is identified by part number 176666.
Signs this part needs replacing
- The boiler fails to power up or the display stays blank when the appliance is switched on.
- Repeated lockouts or fault codes that return after resetting the boiler.
- The boiler responds erratically to the room thermostat, programmer or internal sensors.
- The fan, pump or ignition sequence runs out of step with demand, or stops mid-cycle.
- Intermittent faults that appear and clear without any change to the heating or hot water settings.
Before you order
- Check the appliance model and Gas Council number against the compatibility list to confirm this chip card suits your boiler.
- Compare the part number on the existing board with 176666, and note the alternative number 1781954 where it appears on the original component.
- Isolate the electrical supply to the appliance before removing or fitting the board, and follow the manufacturer's wiring and configuration instructions for the replacement.
- Where the boiler is due a service or the board sits behind a sealed cover, confirm the work is carried out by a competent engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176666 |
|---|---|
| Barcode / EAN | 5022141766664 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781954 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL MORCO GB30 | — | — | — | |
| IDEAL MORCO GB30 SERIES II | — | — | — | |
| IDEAL PROCOMBI EXCLUSIVE 30 | 47-348-80 | 47-348-80 | — | — |
| IDEAL iCOMBI 30 | 47-348-83 | 47-348-83 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 30 COMBI (GC 47-349-42)
manualmanualIDEAL appliance manual — INSTINCT 30 (GC 47-349-10)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 30 (GC 47-348-80)
manualmanualIDEAL appliance manual — iCOMBI 30 (GC 47-348-83)
manualNo technical questions yet for this part.
