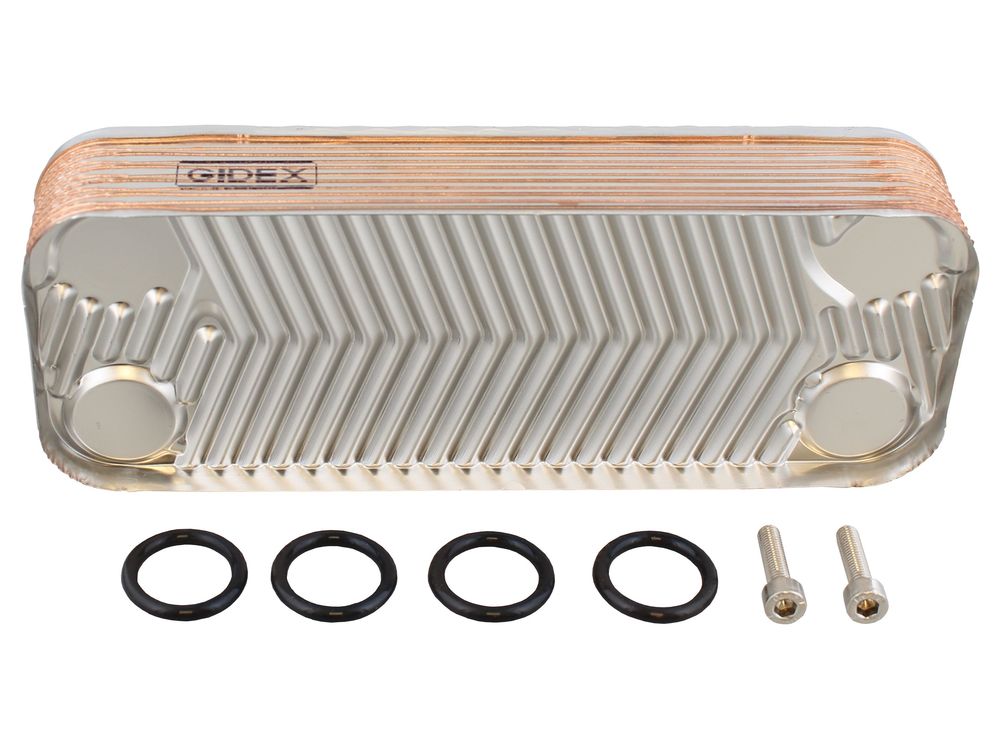

Ideal Plate Heat Exchanger Kit 30kW 176545
30kW plate heat exchanger kit for Ideal Logic Combi ESP1 30 and Vogue C26 boilers. Ideal part 176545, GC 47-348-99.
At a glance
- Part type: Plate heat exchanger kit
- Also known as 1782679, N3793-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£118.67
£98.89 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176545 is a 30kW plate heat exchanger kit used in Ideal domestic and commercial gas appliances. The plate heat exchanger transfers heat from the primary circuit to the domestic hot water supply, so it sits at the centre of hot water production on a combi boiler. This kit is supplied by Ideal for the Logic Combi ESP1 and Vogue ranges.
Signs this part needs replacing
- Domestic hot water runs hot then cools, or the temperature swings between draws
- Reduced hot water flow rate compared with the cold supply
- Water weeping from the plate body or from the joints around the exchanger
- Scale or debris build-up causing poor heat transfer and a sluggish response at the tap
- Repeated lockout or fault codes linked to the hot water circuit
Before you order
- Check the GC number and appliance serial plate to confirm the boiler model before ordering
- Cross-check the alternative numbers 1782679 and N3793-1 against the part you are removing
- Inspect the seals and gaskets on the existing exchanger and replace them if they are hardened or damaged
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat Exchangers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176545 |
|---|---|
| GC number | 47-348-99 |
| Barcode / EAN | 5022141765452 |
| Commodity code | 8419 50 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782679, N3793-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC COMBI ESP1 30 | — | — | — | |
| IDEAL IDEAL : VOGUE C26 | — | — | — | |
| IDEAL VOGUE C26 | 47-348-99 | 47-348-99 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
