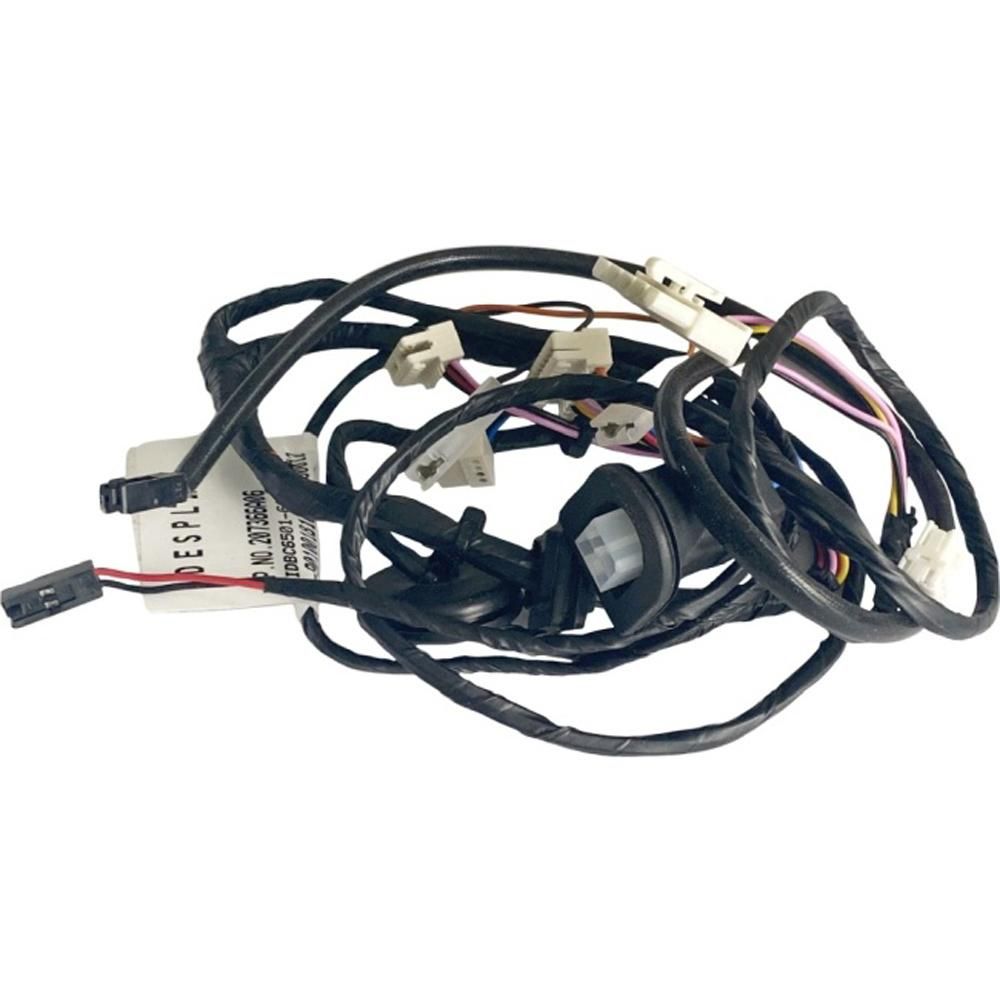

Ideal Wiring Harness Low Voltage 176492
Ideal 176492 low voltage wiring harness for Classic Combi, Esprit Eco and Exclusive combi boilers; connects low voltage components within the appliance.
At a glance
- Part type: Cables, Leads & Wiring Harnesses
- Also known as 1782086
£43.22
£36.02 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176492 is a low voltage wiring harness manufactured by Ideal for use in its domestic combi boiler range. It carries low voltage signals between the control board and the boiler's internal components, forming part of the appliance's electrical loom. The harness is listed under the spare part type Cables, Leads & Wiring Harnesses.
Signs this part needs replacing
- The boiler fails to fire or cuts out intermittently with no obvious mechanical cause
- Fault codes relating to the control board, fan or sensor circuits appear on the display
- Visible damage to the harness: chafed insulation, scorched or brittle wiring, or a broken conductor
- Loose, corroded or heat-damaged plug connectors that will not seat firmly on their terminals
- Continuity faults traced along the loom during electrical testing
Before you order
- Check the appliance GC number and model against the compatibility list to confirm the harness is correct for your boiler
- Note the alternative part number 1782086 when cross-referencing against older documentation or stock records
- Inspect the connectors and any associated seals on the appliance before fitting, as disturbed plugs and gaskets may need attention at the same time
- Isolate the electrical supply to the boiler before removing or refitting the harness
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176492 |
|---|---|
| Barcode / EAN | 5022141764929 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782086 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 24 COMBI | 47-349-41 | 47-349-41 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL EXCLUSIVE 35 COMBI | 47-349-43 | 47-349-43 | — | — |
| IDEAL INSTINCT 24 | 47-349-09 | 47-349-09 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL INSTINCT 35 | 47-349-11 | 47-349-11 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI 24 (GC 47-349-07), CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 24 (GC 47-348-91), ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 24 COMBI (GC 47-349-41), EXCLUSIVE 30 COMBI (GC 47-349-42), EXCLUSIVE 35 COMBI (GC 47-349-43)
manualmanualIDEAL appliance manual — INSTINCT 24 (GC 47-349-09), INSTINCT 30 (GC 47-349-10), INSTINCT 35 (GC 47-349-11)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 24 (GC 47-348-79), PROCOMBI EXCLUSIVE 30 (GC 47-348-80), PROCOMBI EXCLUSIVE 35 (GC 47-348-81)
manualmanualIDEAL appliance manual — iCOMBI 24 (GC 47-348-82), iCOMBI 30 (GC 47-348-83), iCOMBI 35 (GC 47-348-84)
manualNo technical questions yet for this part.
