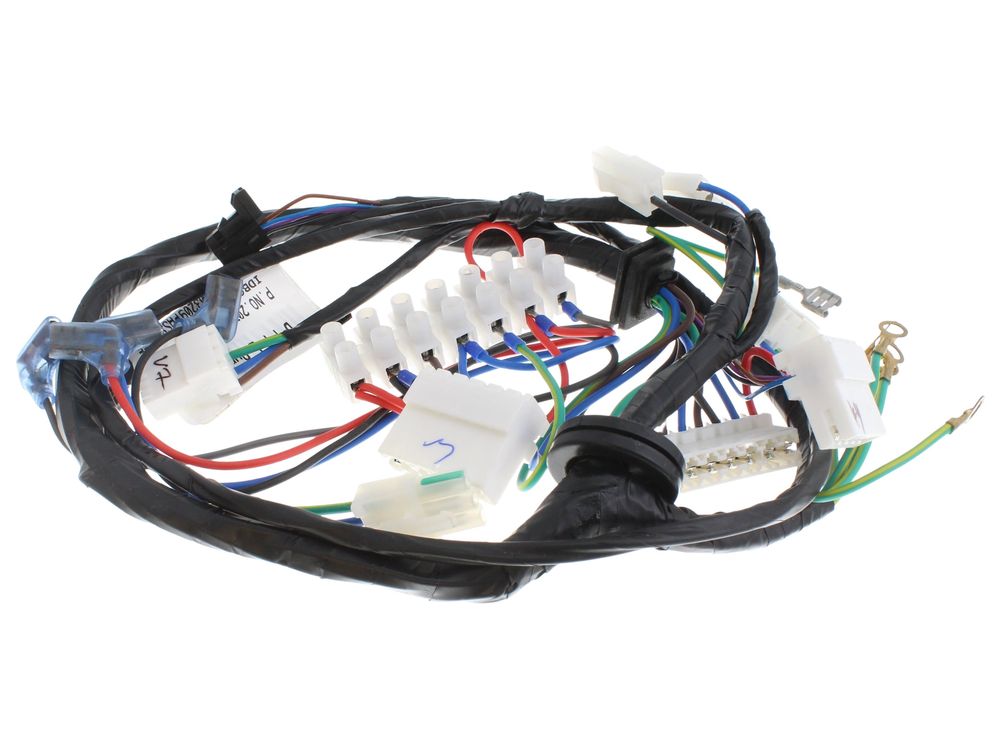

Ideal Wiring Harness Mains Voltage 176491
Ideal 176491 mains voltage wiring harness for Classic Combi, Esprit Eco and Exclusive Combi boilers, supplying mains power to the appliance's electrical components.
At a glance
- Part type: Cables, leads and wiring harnesses
- Also known as 1782088
£88.32
£73.60 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176491 is a mains voltage wiring harness manufactured by Ideal for use in its domestic gas boiler range. It carries mains supply between the boiler's electrical components, forming part of the internal cabling, leads and wiring harness assembly. The harness is a serviceable spare, so a damaged or degraded lead can be renewed without replacing the wider electrical assembly.
Signs this part needs replacing
- The boiler fails to power up or cuts out intermittently with no obvious fault elsewhere
- Visible damage to the harness: cracked, brittle, scorched or chafed insulation
- Loose, corroded or discoloured spade terminals and plug connections
- Intermittent faults that change when the wiring loom is moved or flexed
- Repeated blown fuses or tripping at the supply where the harness is suspect
Before you order
- Confirm the model and GC number against the compatibility list before ordering, as the same appliance name can cover several build variants
- Check the existing harness part number and any alternative number printed on the component
- Isolate the electrical supply at the fused spur before removing or refitting the harness
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176491 |
|---|---|
| Barcode / EAN | 5022141764912 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782088 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 24 COMBI | 47-349-41 | 47-349-41 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL EXCLUSIVE 35 COMBI | 47-349-43 | 47-349-43 | — | — |
| IDEAL INSTINCT 24 | 47-349-09 | 47-349-09 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL INSTINCT 35 | 47-349-11 | 47-349-11 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI 24 (GC 47-349-07), CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 24 (GC 47-348-91), ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 24 COMBI (GC 47-349-41), EXCLUSIVE 30 COMBI (GC 47-349-42), EXCLUSIVE 35 COMBI (GC 47-349-43)
manualmanualIDEAL appliance manual — INSTINCT 24 (GC 47-349-09), INSTINCT 30 (GC 47-349-10), INSTINCT 35 (GC 47-349-11)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 24 (GC 47-348-79), PROCOMBI EXCLUSIVE 30 (GC 47-348-80), PROCOMBI EXCLUSIVE 35 (GC 47-348-81)
manualmanualIDEAL appliance manual — iCOMBI 24 (GC 47-348-82), iCOMBI 30 (GC 47-348-83), iCOMBI 35 (GC 47-348-84)
manualNo technical questions yet for this part.
