Ideal

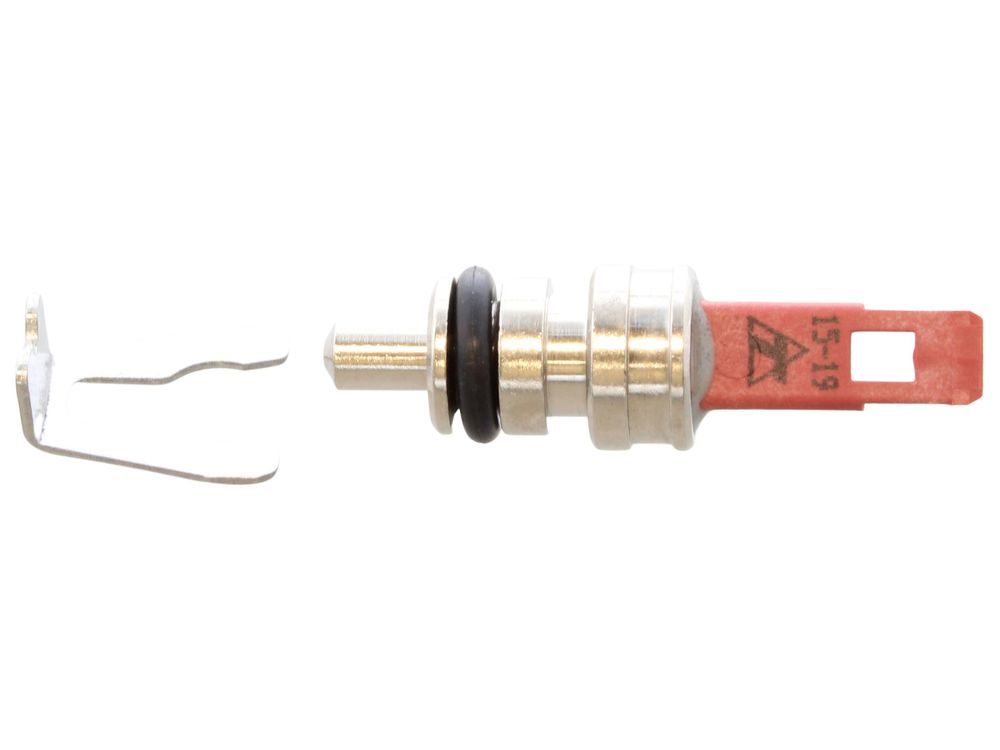

Ideal Return Thermistor Sensor 176482
Ideal return thermistor sensor 176482 for Esprit, Isar, Esprit 2 and Evo boilers, reporting return water temperature to the control board.
At a glance
- Part type: Sensor
- Also known as 1782140
£40.27
£33.56 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal return thermistor sensor, part number 176482, is a temperature-sensing component fitted to Ideal Esprit, Isar, Esprit 2 and Evo boilers. It works by reducing its circuit resistance as temperature rises, giving the boiler control board a continuous reading of return water temperature. The board uses that resistance value to decide whether the appliance needs to increase or decrease heat output.
Signs this part needs replacing
- Boiler locks out or fails to fire, with the control board unable to read a sensible return temperature
- Heating or hot water temperature swings between hot and cold instead of holding steady
- Boiler short-cycles, firing and shutting down repeatedly over short intervals
- Fault codes relating to temperature sensing or return temperature appear on the display
- Radiators or hot water run cooler than the set point despite the boiler calling for heat
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct thermistor for your model
- Note the alternative part number 1782140, which may appear on older documentation or labelling
- Inspect the sensor pocket and any sealing washer or O-ring at the same time, as these are often disturbed during removal
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176482 |
|---|---|
| Barcode / EAN | 5022141764820 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782140 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 24 COMBI | 47-349-41 | 47-349-41 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL EXCLUSIVE 35 COMBI | 47-349-43 | 47-349-43 | — | — |
| IDEAL INSTINCT 24 | 47-349-09 | 47-349-09 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL INSTINCT 35 | 47-349-11 | 47-349-11 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI 24 (GC 47-349-07), CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 24 (GC 47-348-91), ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 24 COMBI (GC 47-349-41), EXCLUSIVE 30 COMBI (GC 47-349-42), EXCLUSIVE 35 COMBI (GC 47-349-43)
manualmanualIDEAL appliance manual — INSTINCT 24 (GC 47-349-09), INSTINCT 30 (GC 47-349-10), INSTINCT 35 (GC 47-349-11)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 24 (GC 47-348-79), PROCOMBI EXCLUSIVE 30 (GC 47-348-80), PROCOMBI EXCLUSIVE 35 (GC 47-348-81)
manualmanualIDEAL appliance manual — iCOMBI 24 (GC 47-348-82), iCOMBI 30 (GC 47-348-83), iCOMBI 35 (GC 47-348-84)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
