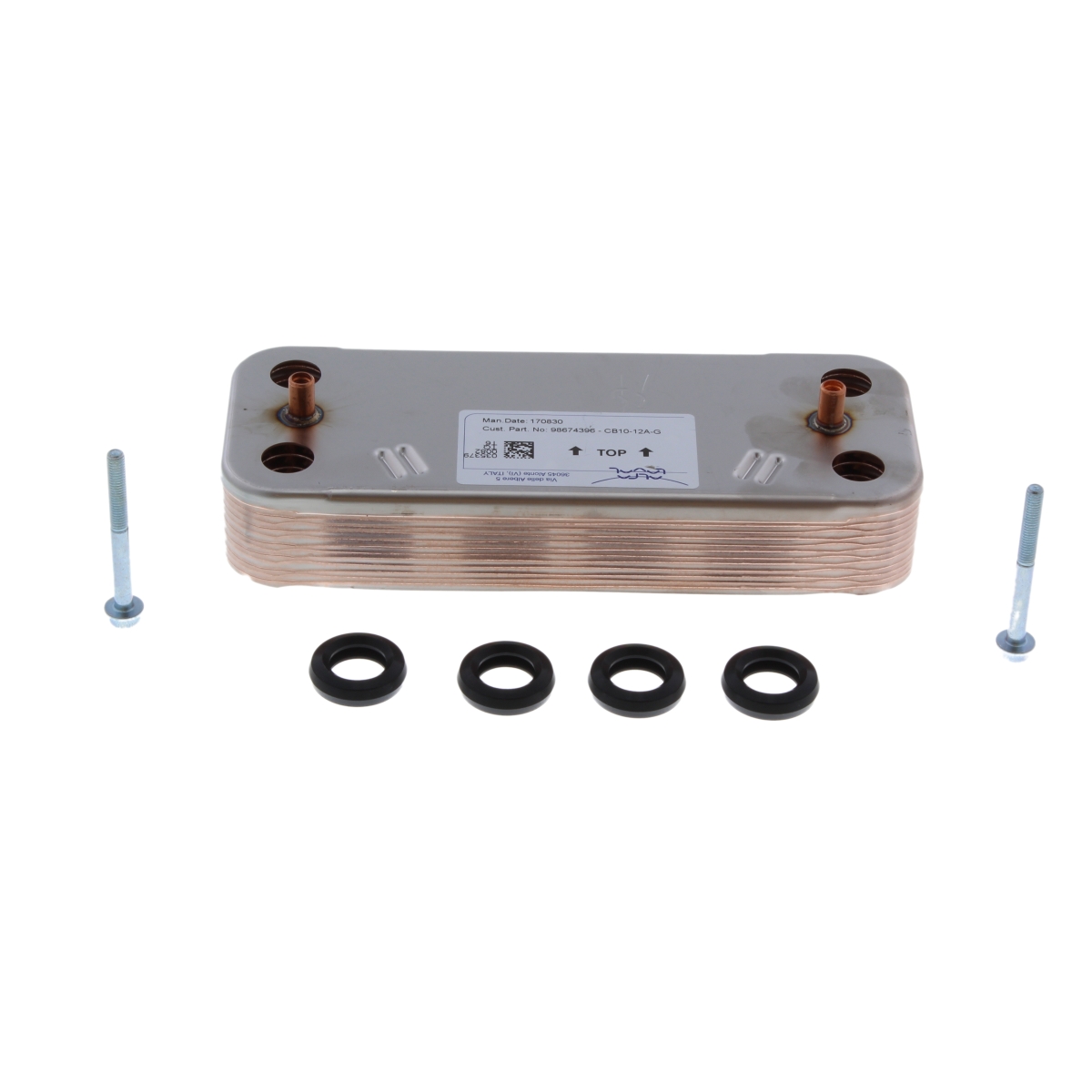

Ideal Plate Heat Exchanger Kit 30kW 176468
Ideal 176468 plate heat exchanger kit rated at 30kW, a secondary heat exchanger for Ideal combi and system boilers including Classic Combi and Esprit Eco.
At a glance
- Part type: Plate heat exchanger kit
- Also known as 1781962
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£119.70
£99.75 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176468 is a plate heat exchanger kit rated at 30kW, supplied by Ideal for use in its domestic and commercial boiler ranges. A plate heat exchanger of this type is the secondary exchanger: the domestic hot water circuit passes across one set of plates while the primary heating water passes across the other, so heat is transferred to the mains water without the two ever mixing. It is a serviceable component and is replaced when the plate stack becomes scaled, blocked or leaks.
Signs this part needs replacing
- Domestic hot water runs hot then cold, or the temperature swings as taps are used elsewhere
- Reduced hot water flow rate at the outlet compared with the boiler's normal performance
- Kettling, rumbling or banging from the boiler when hot water is drawn
- Water weeping from the plate stack or from the joints around the exchanger
- Boiler locks out or reports a fault during a hot water demand
Before you order
- Check the GC number and serial plate on the appliance against the compatibility list before ordering, as the same boiler family can use more than one exchanger rating.
- Confirm the alternative part number 1781962 against any documentation supplied with the boiler.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat Exchangers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176468 |
|---|---|
| Barcode / EAN | 5022141764684 |
| Commodity code | 8419 50 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781962 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL MORCO GB30 | — | — | — | |
| IDEAL MORCO GB30 SERIES II | — | — | — | |
| IDEAL PROCOMBI EXCLUSIVE 30 | 47-348-80 | 47-348-80 | — | — |
| IDEAL iCOMBI 30 | 47-348-83 | 47-348-83 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 30 COMBI (GC 47-349-42)
manualmanualIDEAL appliance manual — INSTINCT 30 (GC 47-349-10)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 30 (GC 47-348-80)
manualmanualIDEAL appliance manual — iCOMBI 30 (GC 47-348-83)
