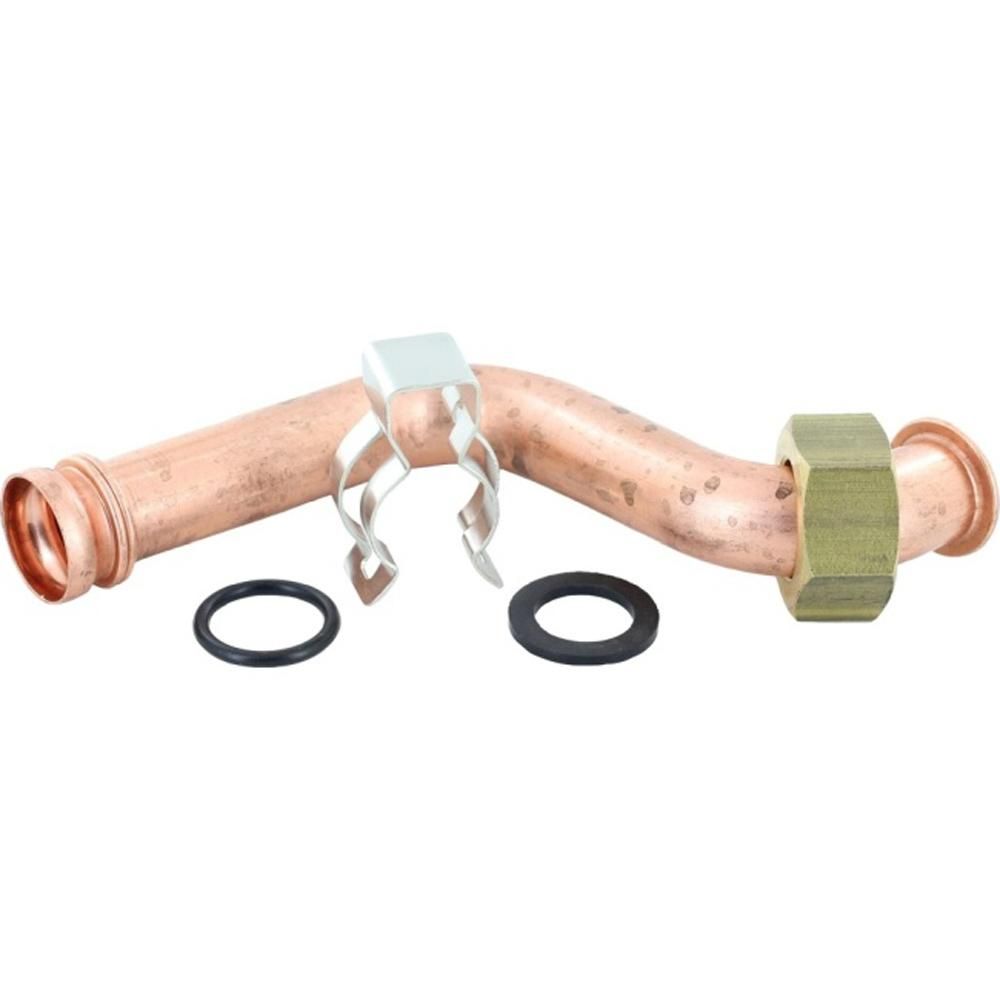

Ideal Return Pipe 176462
Ideal 176462 return pipe for the internal pipework of Atlantic Combi and Classic 2 boilers, routing water or gas through the appliance.
At a glance
- Part type: Pipes & Hoses
- Also known as 1782128
£44.88
£37.40 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176462 is a return pipe used within the internal pipework of Ideal gas boilers. It forms part of the water or gas routing inside the casing, carrying flow back through the appliance so the hydraulic circuit works as designed. The part is listed under Ideal's pipes and hoses range and is supplied as a direct replacement for the original item.
Signs this part needs replacing
- Visible weeping or dripping from a joint or along the pipe run
- Corrosion, pitting or green/white scale deposits on the pipe surface
- Water staining or damp patches inside the boiler casing beneath the pipe
- Loss of system pressure that cannot be traced to any other component
- Kettling, gurgling or air noise suggesting restricted or disturbed flow through the pipework
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant
- Confirm the alternative number 1782128 matches the pipe currently fitted
- Inspect the associated seals, washers and O-rings and renew them at the same time if they show signs of hardening or perishing
- Isolate the gas and water supplies and drain down before removing any internal pipework
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176462 |
|---|---|
| Barcode / EAN | 5022141764622 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782128 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ATLANTIC COMBI 24 | 47-349-81 | 47-349-81 | — | — |
| IDEAL ATLANTIC COMBI 30 | 47-349-82 | 47-349-82 | — | — |
| IDEAL ATLANTIC COMBI 35 | 47-349-83 | 47-349-83 | — | — |
| IDEAL CLASSIC 2 24 | 47-349-71 | 47-349-71 | — | — |
| IDEAL CLASSIC 2 30 | 47-349-72 | 47-349-72 | — | — |
| IDEAL CLASSIC 2 35 | 47-349-73 | 47-349-73 | — | — |
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 2 24 | 47-349-65 | 47-349-65 | — | — |
| IDEAL ESPRIT ECO 2 30 | 47-349-66 | 47-349-66 | — | — |
Showing 10 of 61 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI 24 (GC 47-349-07), CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 24 (GC 47-348-91), ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 24 COMBI (GC 47-349-41), EXCLUSIVE 30 COMBI (GC 47-349-42), EXCLUSIVE 35 COMBI (GC 47-349-43)
manualmanualIDEAL appliance manual — INSTINCT 24 (GC 47-349-09), INSTINCT 30 (GC 47-349-10), INSTINCT 35 (GC 47-349-11)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 24 (GC 47-348-79), PROCOMBI EXCLUSIVE 30 (GC 47-348-80), PROCOMBI EXCLUSIVE 35 (GC 47-348-81)
manualmanualIDEAL appliance manual — iCOMBI 24 (GC 47-348-82), iCOMBI 30 (GC 47-348-83), iCOMBI 35 (GC 47-348-84)
manualNo technical questions yet for this part.
