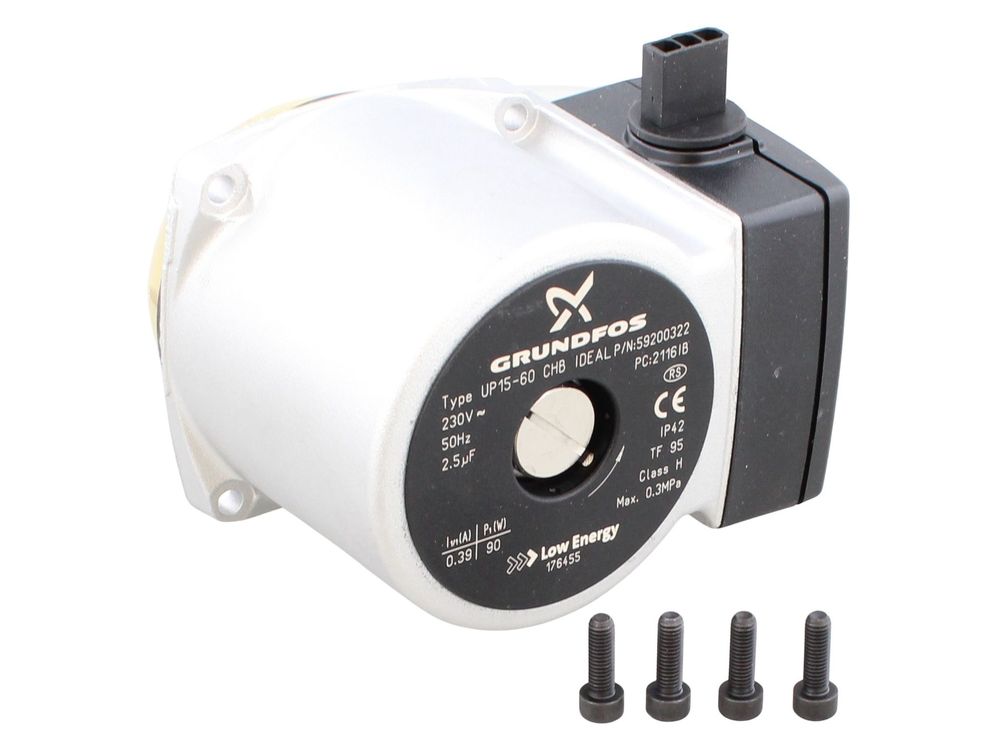

Ideal Pump Head Kit Grundfos 176455
At a glance
- Part type: Pump head kit
- Also known as 59200322, N9308-1
Showing prices
£77.92
£64.93 ex. VAT · VAT at 20%
In stock
Order within 31m for same-day dispatch
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Pump Head Kit is a replacement circulating pump head for Ideal and Keston combi and system boilers. It is listed by Ideal under part number 176455, with the Grundfos pump reference 59200322. The pump head circulates primary water around the heating circuit and through the domestic hot water heat exchanger, so it is central to both heating and hot water operation.
Signs this part needs replacing
- Boiler fires but radiators stay cold or heat unevenly across the property
- Grinding, humming or rattling noise from the pump area, especially on start-up
- Boiler locks out or displays a circulation-related fault code
- Domestic hot water temperature fluctuates or drops during draw-off
- Pump body runs hot with little or no flow, or the pump fails to start on a call for heat
Before you order
- Check the GC number on the appliance data badge against the compatibility list below before ordering.
- Confirm the pump currently fitted carries the Grundfos 59200322 reference, or cross-reference the alternative code N9308-1.
- Check whether the pump body gasket or O-ring needs renewing at the same time as the head.
- Confirm the appliance model and serial number, as Ideal and Keston combi ranges use more than one pump variant across their production.
Mechanical
| Part type | Pump Head Kit |
|---|
Compliance
| Manufacturer part number (MPN) | 176455 |
|---|---|
| Alternative numbers | 59200322, N9308-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 24 COMBI | 47-349-41 | 47-349-41 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL EXCLUSIVE 35 COMBI | 47-349-43 | 47-349-43 | — | — |
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
| IDEAL INDEPENDENT C30 | 47-348-69 | 47-348-69 | — | — |
| IDEAL INDEPENDENT C35 | 47-348-70 | 47-348-70 | — | — |
Showing 10 of 64 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC COMBI 24 (GC 47-349-07), CLASSIC COMBI 30 (GC 47-349-08)
manualmanualIDEAL appliance manual — ESPRIT ECO 24 (GC 47-348-91), ESPRIT ECO 30 (GC 47-348-92)
manualmanualIDEAL appliance manual — EXCLUSIVE 24 COMBI (GC 47-349-41), EXCLUSIVE 30 COMBI (GC 47-349-42), EXCLUSIVE 35 COMBI (GC 47-349-43)
manualmanualIDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — INSTINCT 24 (GC 47-349-09), INSTINCT 30 (GC 47-349-10), INSTINCT 35 (GC 47-349-11)
manualmanualIDEAL appliance manual — LOGIC + COMBI 24 (GC 47-348-65), LOGIC + COMBI 30 (GC 47-348-66), LOGIC + COMBI 35 (GC 47-348-67)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 15 (GC 41-750-24), LOGIC SYSTEM 15IE (GC 41-750-44), LOGIC SYSTEM 18 (GC 41-750-25), LOGIC SYSTEM 18IE (GC 41-750-45), LOGIC SYSTEM 24 (GC 41-750-26), LOGIC SYSTEM 24IE (GC 41-750-46), LOGIC SYSTEM 30 (GC 41-750-27), LOGIC SYSTEM 30IE (GC 41-750-47)
manualmanualIDEAL appliance manual — PROCOMBI EXCLUSIVE 24 (GC 47-348-79), PROCOMBI EXCLUSIVE 30 (GC 47-348-80), PROCOMBI EXCLUSIVE 35 (GC 47-348-81)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA SYSTEM 15 (GC 41-002-01), ZANUSSI ULTRA SYSTEM 18 (GC 41-002-02), ZANUSSI ULTRA SYSTEM 24 (GC 41-002-03), ZANUSSI ULTRA SYSTEM 30 (GC 41-002-04)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualmanualIDEAL appliance manual — iCOMBI 24 (GC 47-348-82), iCOMBI 30 (GC 47-348-83), iCOMBI 35 (GC 47-348-84)
manualmanualKESTON appliance manual — COMBI 30 BOILER (GC 47-930-04), COMBI 35 BOILER (GC 47-930-05)
manualmanualKESTON appliance manual — SYSTEM 30 BOILER (GC 41-930-39)
manualNo technical questions yet for this part.
