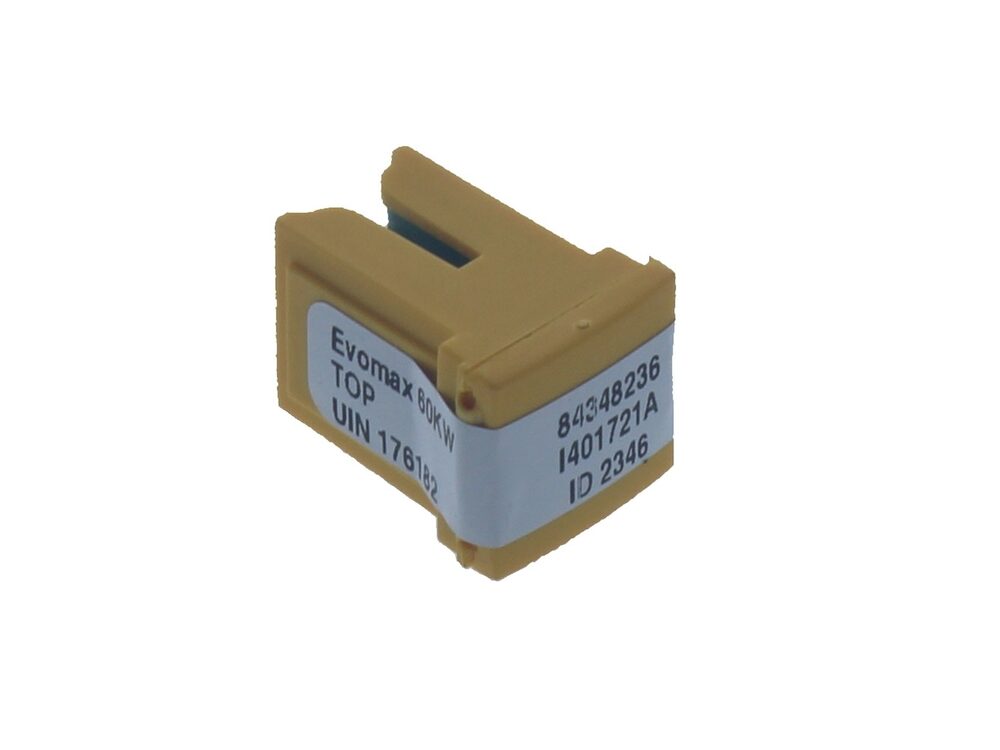

Ideal Chip Card Kit Evomax NG60 176422

The Ideal chip card kit is a control board assembly for Ideal Commercial appliances, supplied under part number 176422. The board sits at the centre of the boiler's control system, reading inputs from the sensors, thermostats and switches around the appliance and using them to govern ignition, modulation and shutdown. It also carries the safety logic that brings the boiler to a safe stop when a fault condition is detected.

This kit is listed for the Evomax and Instinct Heat commercial ranges, including the Evomax 60 and Evomax 60P.

• The boiler locks out repeatedly and will not reset, or resets only briefly before locking out again.
• The appliance fails to respond to a call for heat from the thermostat or controls.
• Fault codes appear on the display that point to the control board or its sensor inputs.
• The boiler fires and then shuts down unexpectedly, or runs erratically with no consistent modulation.
• Visible damage to the board, such as scorching, tracking or swollen components.

• Confirm the appliance model and GC number against the compatibility list, as the Evomax 60 and Evomax 60P use different GC references.
• Check the existing board and any label on the appliance for the alternative number 1781896 before ordering.
• Isolate the electrical supply to the appliance before removing or fitting the board.
• Control board replacement should be carried out by a competent engineer familiar with the appliance.
