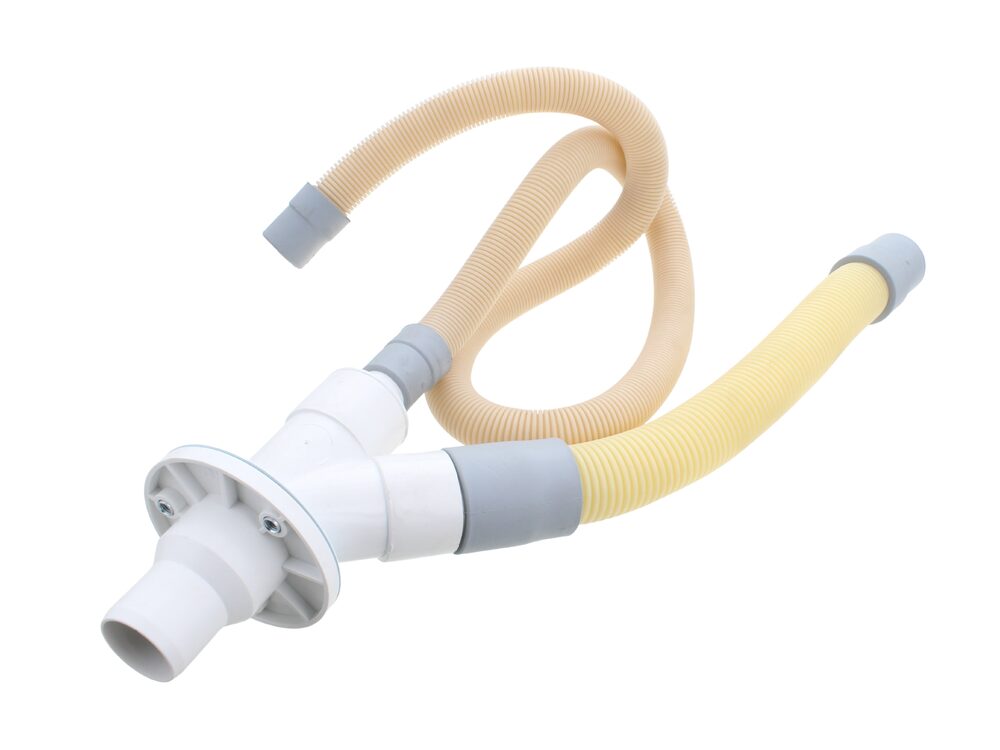

Ideal Condensate Assembly 150kW Kit 176391
Ideal condensate assembly 150kW kit, part 176391, a condensate trap and siphon for Evomax 150 and Instinct Heat 150 commercial boilers.
At a glance
- Part type: Condensate assembly
- Also known as 1782328
£133.07
£110.89 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal condensate assembly 150kW kit is a replacement condensate trap and siphon for Ideal commercial gas boilers. It collects the condensate formed during combustion and manages its discharge to the drainage system, so the appliance can run without water backing up inside the casing. The assembly is supplied under part number 176391 and is listed against the Evomax 150 and Instinct Heat 150 commercial ranges.
Signs this part needs replacing
- Water pooling at the base of the boiler or on the floor beneath the appliance
- Condensate backing up in the trap, causing gurgling or irregular draining noises
- The boiler locking out or displaying a condensate-related fault code
- Cracks, splits or perished seals visible on the trap body or its connections
- Damp patches or water staining along the condensate discharge route
Before you order
- Check the GC number 41-750-39A on the appliance data badge against the number listed here
- Confirm the exact model and output, as this assembly is listed for the 150kW commercial units
- Note the alternative part number 1782328 when cross-referencing an existing trap
- Inspect the trap seals and connections at the same time, as these are disturbed during replacement
Mechanical
| Part type | Condensate Traps & Siphons |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176391 |
|---|---|
| GC number | 41-750-39A |
| Barcode / EAN | 5022141763915 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782328 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 150 | 41-750-39A | 41-750-39A | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 150 | — | — | — |
