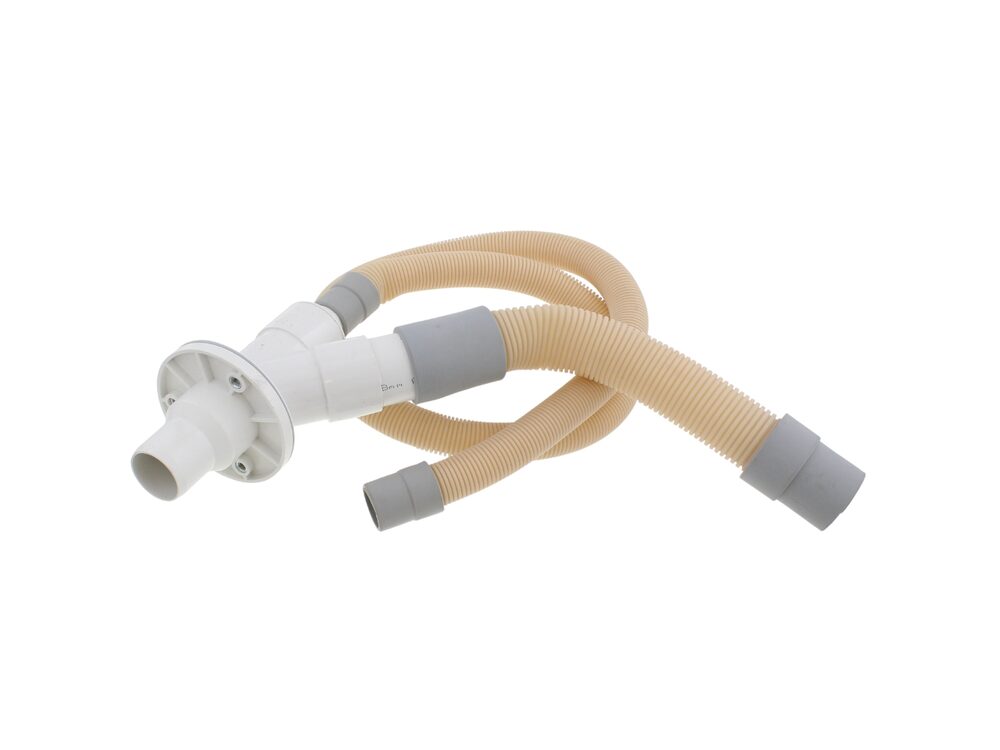

Ideal Condensate Assembly 100/120kW Kit 176390
Ideal 176390 condensate assembly, supplied as a 100/120kW kit for Evomax 100/120 and Instinct Heat 100/120 commercial boilers.
At a glance
- Part type: Condensate assembly, 100/120kW kit
- Also known as 1782282
£135.56
£112.97 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176390 is a condensate assembly supplied as a 100/120kW kit for Ideal Commercial condensing appliances. It sits within the condensate removal path, collecting the condensate formed during combustion and passing it to the discharge pipework. The part is catalogued under the condensate traps and siphons spare category.
Signs this part needs replacing
- Condensate or water collecting beneath the appliance or inside the casing
- Cracks, splits or discolouration visible on the trap or siphon body
- Gurgling, bubbling or draining noises from the condensate route
- The appliance locking out or failing to fire with a condensate-related fault code
- Damp patches or staining around the condensate discharge pipework
Before you order
- Confirm the appliance model and GC number against the compatibility list before ordering.
- Check the part number moulded or stamped on the existing assembly to confirm the match.
- Note the alternative part number 1782282 when cross-referencing older documentation or parts lists.
Mechanical
| Part type | Condensate Traps & Siphons |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176390 |
|---|---|
| Barcode / EAN | 5022141763908 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782282 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 100 | 41-750-37A | 41-750-37A | — | — |
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 100 | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 120 | — | — | — |
