Ideal

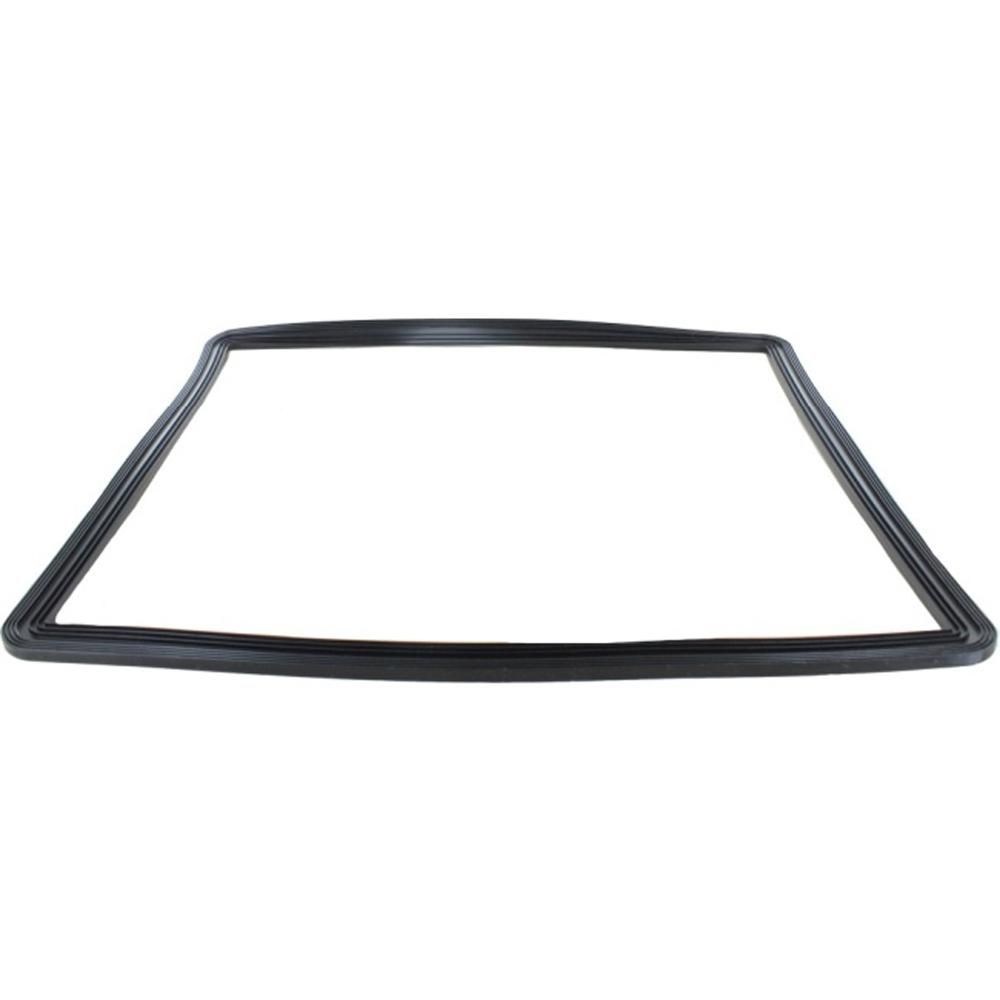

Ideal Burner Seal Kit 150W 176366
Ideal 176366 burner seal kit, rated 150W, for Ideal Commercial Evomax and Evomax 2 boilers, sealing the burner to the combustion chamber.
At a glance
- Part type: Gaskets, o-rings, seals and washers
- Also known as 1782334
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£64.50
£53.75 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176366 is a burner seal kit rated at 150W, produced by Ideal for its commercial boiler range. It sits at the burner mounting face and forms an airtight joint against the combustion chamber, keeping flue products on the intended path and helping the appliance hold stable, dependable combustion. The kit is classified under gaskets, o-rings, seals and washers.
Signs this part needs replacing
- Combustion analyser readings drifting outside the expected range for the appliance
- Soot deposits, staining or heat discolouration around the burner mounting face
- A smell of combustion products in the vicinity of the boiler casing
- The seal visibly hardened, flattened, cracked or compressed on inspection
- An unstable, lifting or noisy flame pattern at the burner
Before you order
- Check the GC number on the appliance data badge against the numbers listed above before ordering.
- The alternative part number 1782334 identifies the same item.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Inspect the remaining burner seals and gaskets while the burner is removed, and renew any that show signs of deterioration.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176366 |
|---|---|
| Barcode / EAN | 5022141763663 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782334 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 150 | 41-750-39A | 41-750-39A | — | — |
| IDEAL COMMERCIAL EVOMAX 2 100KW LPG | 41-796-37 | 41-796-37 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 100KW NG | 41-796-30 | 41-796-30 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW LPG | 41-796-38 | 41-796-38 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW NG | 41-796-31 | 41-796-31 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 150KW NG | 41-796-32 | 41-796-32 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 30KW LPG | 41-796-33 | 41-796-33 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 30KW NG | 41-796-26 | 41-796-26 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 40KW LPG | 41-796-34 | 41-796-34 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 40KW NG | 41-796-27 | 41-796-27 | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — EVOMAX 150 (GC 41-750-39A)
manualmanualIDEAL COMMERCIAL appliance manual — EVOMAX 2 100KW LPG (GC 41-796-37), EVOMAX 2 100KW NG (GC 41-796-30), EVOMAX 2 120KW LPG (GC 41-796-38), EVOMAX 2 120KW NG (GC 41-796-31), EVOMAX 2 150KW NG (GC 41-796-32), EVOMAX 2 30KW LPG (GC 41-796-33), EVOMAX 2 30KW NG (GC 41-796-26), EVOMAX 2 40KW LPG (GC 41-796-34), EVOMAX 2 40KW NG (GC 41-796-27), EVOMAX 2 60KW LPG (GC 41-796-35), EVOMAX 2 60KW NG (GC 41-796-28), EVOMAX 2 80KW LPG (GC 41-796-36), EVOMAX 2 80KW NG (GC 41-796-29)
manualNo technical questions yet for this part.
