Ideal

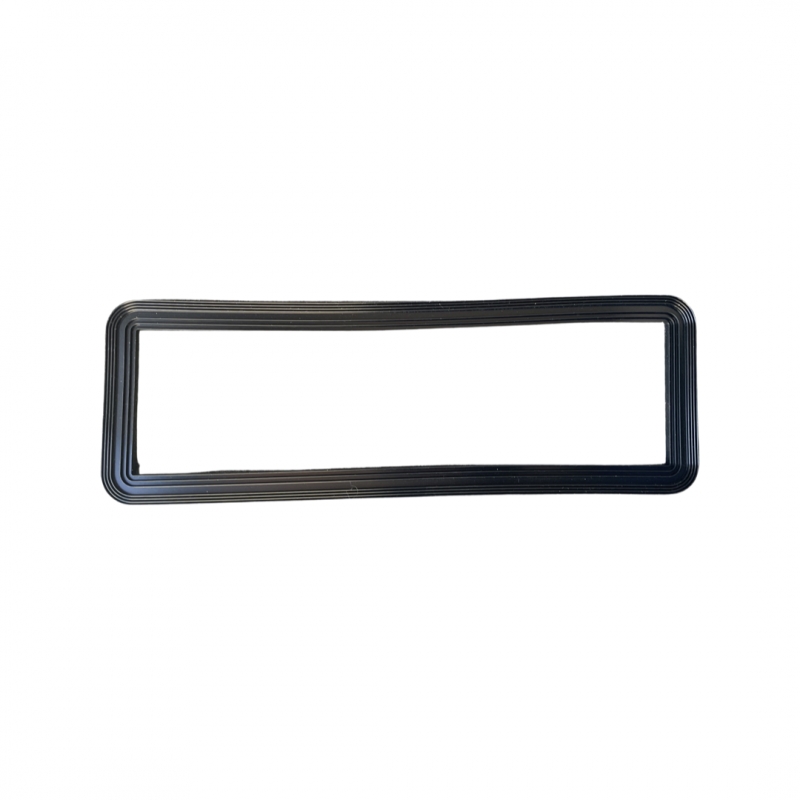

Ideal Burner Seal Kit 176365
Ideal Burner Seal Kit 176365 is a replacement burner sealing set for Ideal Commercial Evomax and Evomax 2 appliances.
At a glance
- Part type: Gaskets, o-rings, seals and washers
- Also known as 1782290, N7160
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£55.06
£45.88 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Burner Seal Kit 176365 is a replacement sealing set for the burner assembly on Ideal Commercial Evomax appliances. It is produced by Ideal and supplied as a spare for the Evomax and Evomax 2 ranges. The seals sit at the burner mounting points and maintain a gas-tight joint between the burner and its housing, keeping combustion contained within the intended path.
Signs this part needs replacing
- Soot deposits, staining or discolouration around the burner mounting flange
- A smell of gas at the burner joint, or combustion readings that drift after servicing
- Seals that have hardened, flattened or cracked when inspected
- Gasket material breaking up or sticking to the burner face when the burner is lifted
- Unstable flame pattern or repeated flame failure after reassembly
Before you order
- Check the appliance GC number and model against the compatibility list before ordering.
- Confirm the existing seal arrangement matches this kit, as burner seal layouts differ between Evomax variants.
- Alternative part numbers 1782290 and N7160 may appear on older documentation or parts lists.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176365 |
|---|---|
| Barcode / EAN | 5022141763656 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782290, N7160 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 100 | 41-750-37A | 41-750-37A | — | — |
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL EVOMAX 2 100KW LPG | 41-796-37 | 41-796-37 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 100KW NG | 41-796-30 | 41-796-30 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW LPG | 41-796-38 | 41-796-38 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW NG | 41-796-31 | 41-796-31 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 150KW NG | 41-796-32 | 41-796-32 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 30KW LPG | 41-796-33 | 41-796-33 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 30KW NG | 41-796-26 | 41-796-26 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 40KW LPG | 41-796-34 | 41-796-34 | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — EVOMAX 100 (GC 41-750-37A), EVOMAX 120 (GC 41-750-38A)
manualmanualIDEAL COMMERCIAL appliance manual — EVOMAX 2 100KW LPG (GC 41-796-37), EVOMAX 2 100KW NG (GC 41-796-30), EVOMAX 2 120KW LPG (GC 41-796-38), EVOMAX 2 120KW NG (GC 41-796-31), EVOMAX 2 150KW NG (GC 41-796-32), EVOMAX 2 30KW LPG (GC 41-796-33), EVOMAX 2 30KW NG (GC 41-796-26), EVOMAX 2 40KW LPG (GC 41-796-34), EVOMAX 2 40KW NG (GC 41-796-27), EVOMAX 2 60KW LPG (GC 41-796-35), EVOMAX 2 60KW NG (GC 41-796-28), EVOMAX 2 80KW LPG (GC 41-796-36), EVOMAX 2 80KW NG (GC 41-796-29)
