Ideal

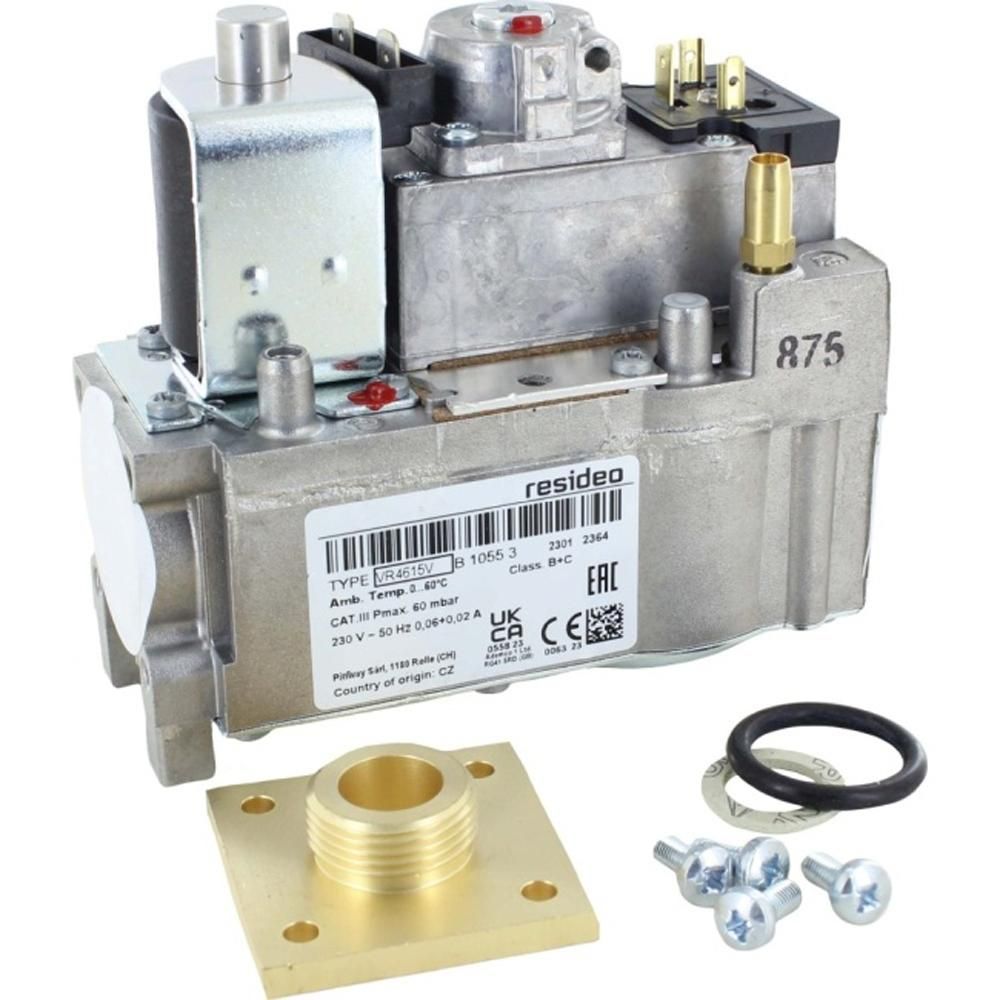

Ideal Gas Valve Kit 100/120 KW 176358
Ideal gas valve kit (176358) for Evomax 100, Evomax 2 100KW and 120KW, and Instinct Heat 100 commercial appliances.
At a glance
- Part type: Gas valve kit
- Also known as 1782292, N7337
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£345.61
£288.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal gas valve kit is a replacement gas control assembly for Ideal commercial condensing appliances. It regulates the flow of gas to the burner so the boiler can modulate output and hold a stable flame across its firing range. This kit is specified for the 100 KW and 120 KW versions of the Evomax and Evomax 2 ranges, and is also listed against the Instinct Heat 100.
Signs this part needs replacing
- The boiler fails to light, or lights and then drops out shortly after ignition.
- Repeated lockouts on the gas train, with the fault returning after reset.
- Unstable or hunting flame, or output that will not modulate smoothly through the range.
- Audible clicking or a valve that does not respond when the boiler calls for heat.
- Combustion readings that drift outside the expected range despite correct servicing.
Before you order
- Confirm the appliance model and GC number against the compatibility list, as the kit covers both 100 KW and 120 KW variants.
- Check the existing valve and any associated seals before ordering, so a replacement gasket or seal can be added to the job if needed.
- Have the appliance serial number to hand when confirming the correct variant.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176358 |
|---|---|
| GC number | 41-796-31 |
| Barcode / EAN | 5022141763588 |
| Commodity code | 8481 80 60 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1782292, N7337 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 100 | 41-750-37A | 41-750-37A | — | — |
| IDEAL COMMERCIAL EVOMAX 2 100KW NG | 41-796-30 | 41-796-30 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW NG | 41-796-31 | 41-796-31 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 100 | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
