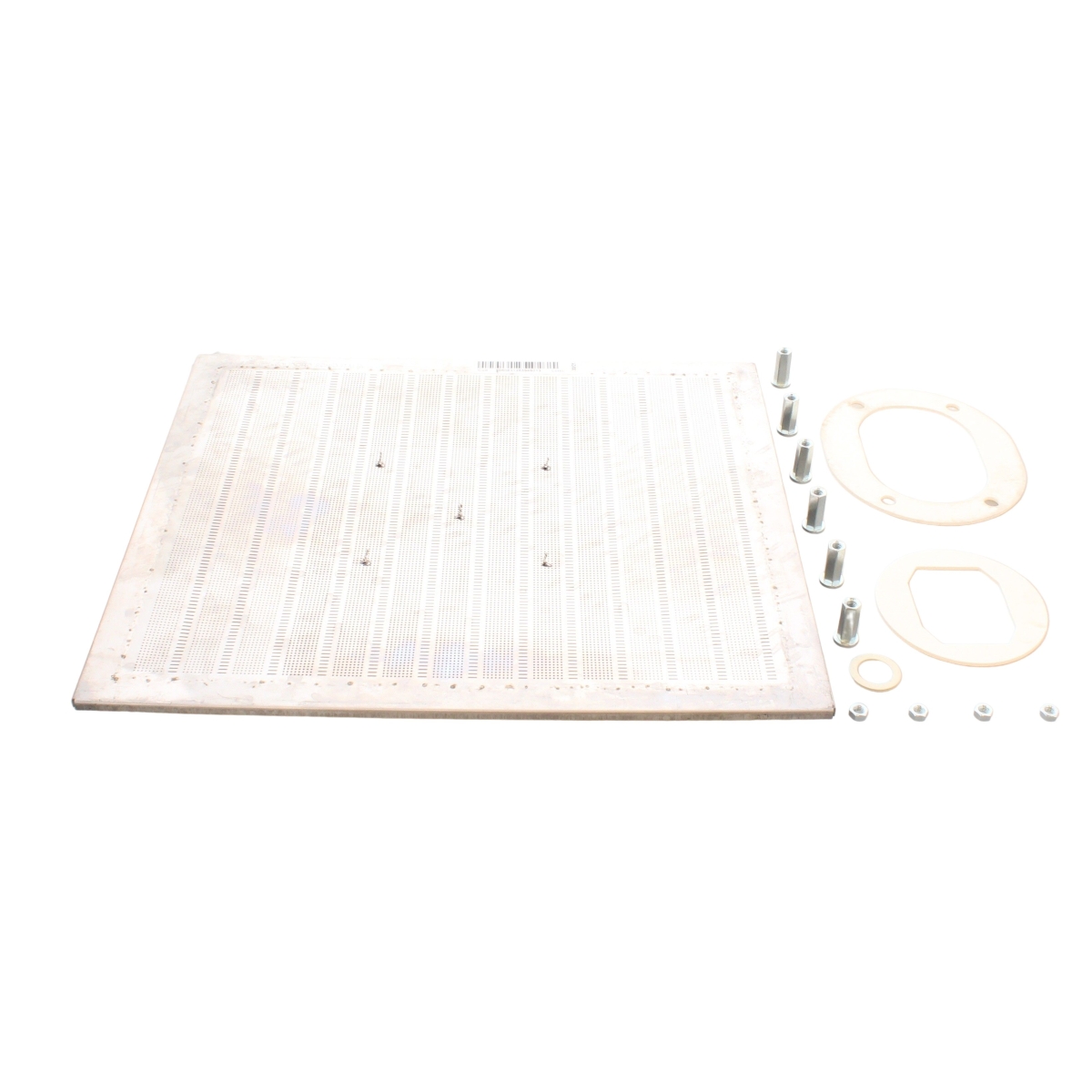

Ideal Burner Assembly 100kW Kit 176355
Ideal 176355 burner assembly, a 100kW kit for Evomax 100/120 and Instinct Heat 100/120 commercial gas appliances.
At a glance
- Part type: Burner assembly
- Also known as 1782288
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£498.07
£415.06 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176355 is a burner assembly supplied as a 100kW kit for Ideal Commercial gas appliances. It sits at the combustion end of the appliance, delivering the gas and air mixture to the burner head where ignition and flame establishment take place. It is listed within Ideal's burner and burner controls spare part range and is used across the Evomax and Instinct Heat commercial families.
Signs this part needs replacing
- Repeated lockouts or failure to establish a stable flame
- Uneven, lifting or unstable flame across the burner head
- Sooting, discolouration or visible heat damage to the burner surface
- Combustion readings drifting outside tolerance, including rising CO
- Ignition faults traced back to the burner assembly rather than the ignition electrode
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the appliance model and rating, as this is the 100kW kit.
- Check whether a gasket or seal kit is needed for the burner joint on your appliance.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner & Burner Controls |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176355 |
|---|---|
| Barcode / EAN | 5022141763557 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782288 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 100 | 41-750-37A | 41-750-37A | — | — |
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 100 | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 120 | — | — | — |
