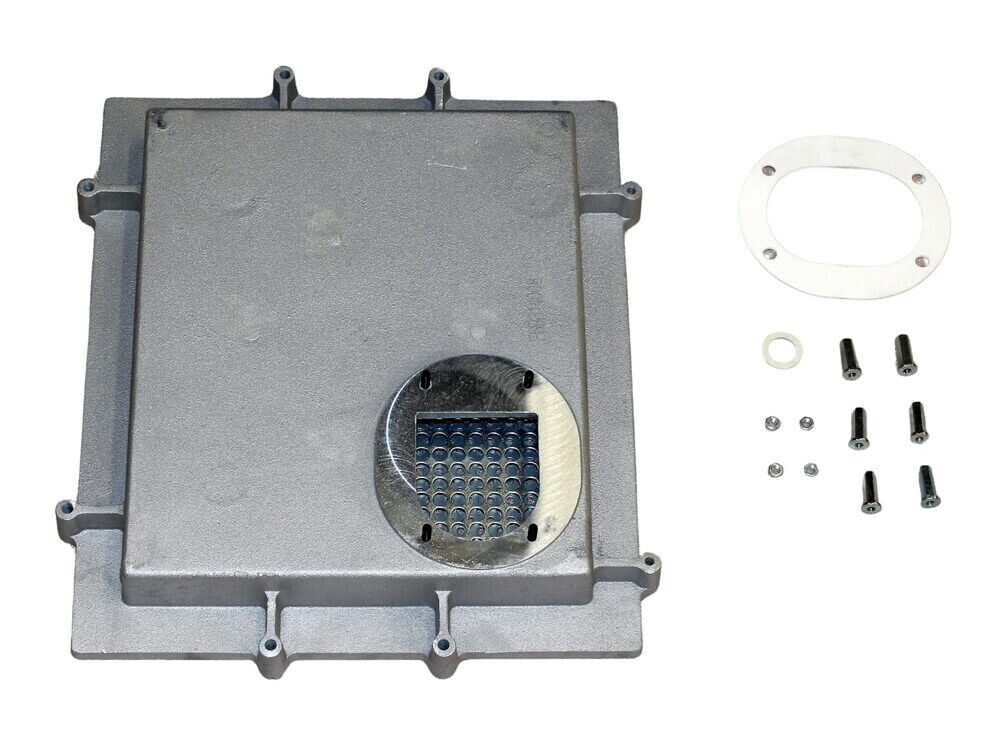

Ideal Burner Box Assembly 120kW Kit 176351

The Ideal 176351 is a burner box assembly supplied as a 120kW kit for Ideal Commercial gas boilers. It forms the combustion end of the appliance, housing the burner and its mounting arrangement so that the gas/air mixture is delivered and burnt correctly inside the heat exchanger. It is a serviceable assembly rather than a consumable, and it is specific to the 120kW output band of the Ideal Commercial range.

• The burner fails to light, lights intermittently, or locks out shortly after ignition.
• Combustion readings drift outside the expected range and cannot be corrected by adjustment alone.
• Soot deposits, discolouration or localised heat damage are visible around the burner head or box.
• The flame picture is unstable, lifting or yellowing when the appliance is running.
• The burner box shows distortion, corrosion or cracking that prevents a sound seal against the heat exchanger.

• Confirm the appliance model and GC number against the compatibility list, as this assembly is rated for the 120kW output band.
• Check the existing part number on the appliance and cross-reference it with 176351 and alternative number 1782312.
• Inspect the burner gasket and sealing faces while the appliance is open, and order any seal or gasket required to complete the job.
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
