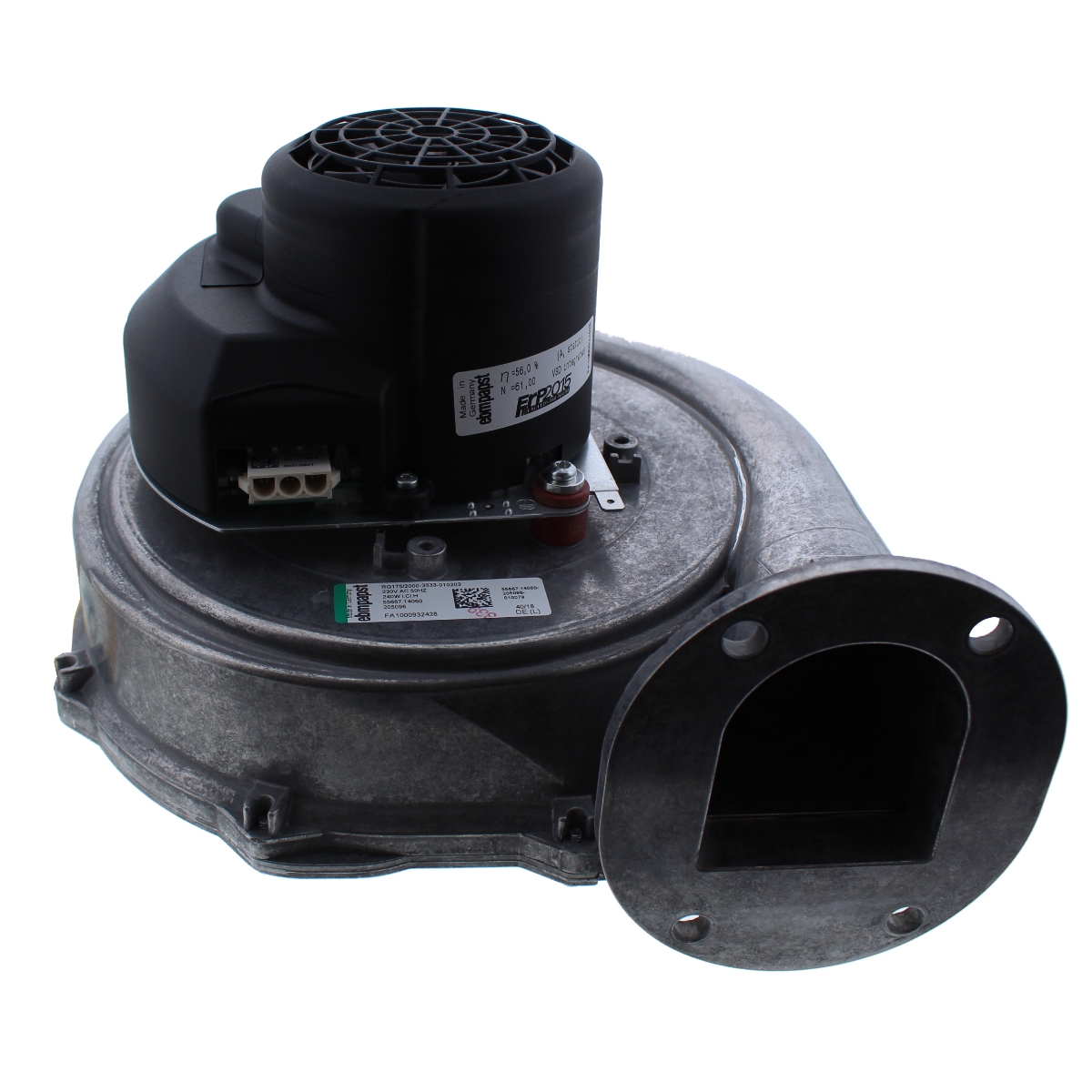

Ideal Fan Assembly 120 and 150 kW 176274
Ideal fan assembly 176274 draws air into the combustion chamber and clears flue gases on Evomax and Instinct Heat 120/150 kW boilers.
At a glance
- Part type: Fan assembly
- Also known as 1782316
£1,349.51
£1,124.59 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal fan assembly 176274 is the forced-draught fan used on Ideal Commercial gas boilers. It draws fresh air into the combustion chamber so the gas can burn correctly, then carries the burnt gases away once combustion is complete. The boiler's safety interlock prevents gas reaching the main burner whenever the fan is not running.
Signs this part needs replacing
- The boiler locks out or fails to fire, with a fan-related fault code shown on the display
- The fan runs noisily, grinds or rumbles, or the impellor catches on the housing
- The fan does not spin up at the start of a demand, so the boiler never reaches ignition
- Intermittent operation, with the boiler cutting out part-way through a cycle
- Overheat or flue-related lockouts that recur after resetting
Before you order
- Check the GC number on the appliance data badge against the compatibility list, as the same model name can cover more than one variant
- Confirm the existing fan carries part number 176274 or the alternative number 1782316
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176274 |
|---|---|
| Barcode / EAN | 5022141762741 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782316 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL EVOMAX 150 | 41-750-39A | 41-750-39A | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW LPG | 41-796-38 | 41-796-38 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 120KW NG | 41-796-31 | 41-796-31 | — | — |
| IDEAL COMMERCIAL EVOMAX 2 150KW NG | 41-796-32 | 41-796-32 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 120 | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 150 | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
