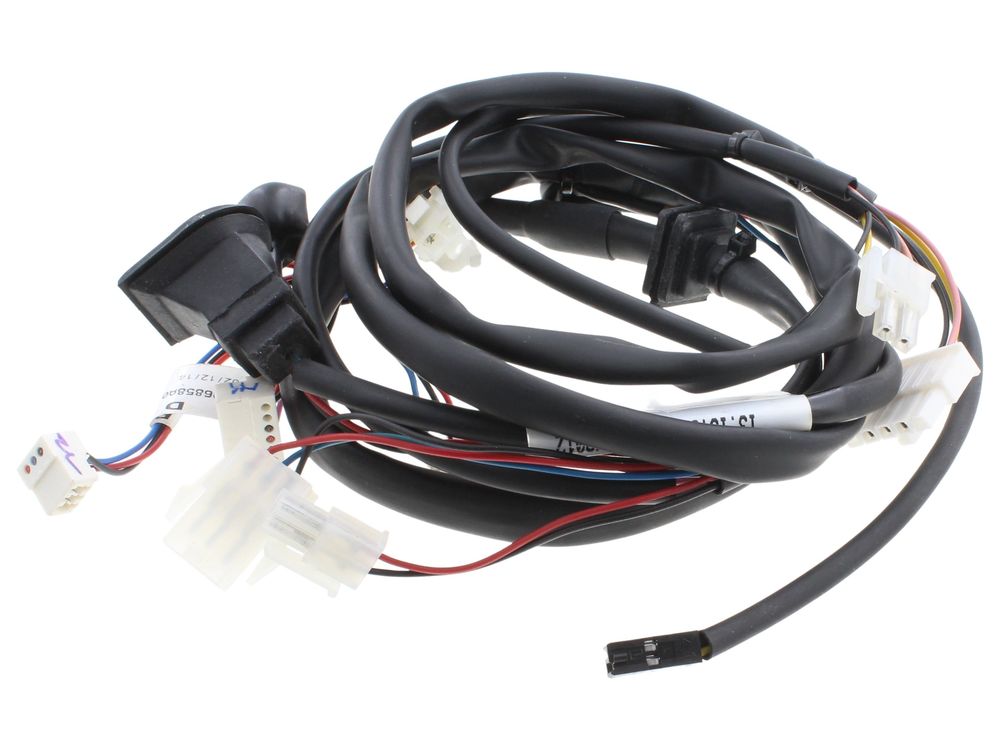

Ideal Low Voltage Harness 176226
Low voltage wiring harness for Ideal Logic Code Combi boilers, part 176226, linking the control board to low voltage components.
At a glance
- Part type: Wiring harness (low voltage)
- Appliance family: Logic Code Combi
- Also known as 1781870
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£50.62
£42.18 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176226 is a low voltage wiring harness used in Ideal Logic Code Combi boilers. It forms part of the appliance's internal wiring loom, carrying low voltage signals between the control board and the boiler's low voltage components. It is supplied as a manufacturer spare for the Logic Code Combi range.
Signs this part needs replacing
- The boiler fails to fire or locks out intermittently with no obvious cause elsewhere
- Fault codes relating to signal or communication faults appear on the display
- The display or control panel behaves erratically, resets or drops out
- Insulation, plugs or terminals on the harness show signs of heat damage, chafing or corrosion
- Faults appear or clear when the loom is moved or the connector is disturbed
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list before ordering.
- Confirm the part number 176226, also listed as 1781870, matches the harness being removed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring harness (low voltage) |
|---|---|
| Appliance family | Logic Code Combi |
Compliance
| Manufacturer part number (MPN) | 176226 |
|---|---|
| Barcode / EAN | 5022141762260 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781870 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC CODE COMBI 26 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI 33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI 36 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES26 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES38 | — | — | — | |
| IDEAL LOGIC CODE COMBI 26 | 47-348-74 | 47-348-74 | — | — |
| IDEAL LOGIC CODE COMBI 33 | 47-348-75 | 47-348-75 | — | — |
| IDEAL LOGIC CODE COMBI 36 | 47-348-76 | 47-348-76 | — | — |
| IDEAL LOGIC CODE COMBI ES26 | 47-349-04 | 47-349-04 | — | — |
Showing 10 of 13 compatible appliances.
