Ideal Wiring Harness Mains 150kW 176219

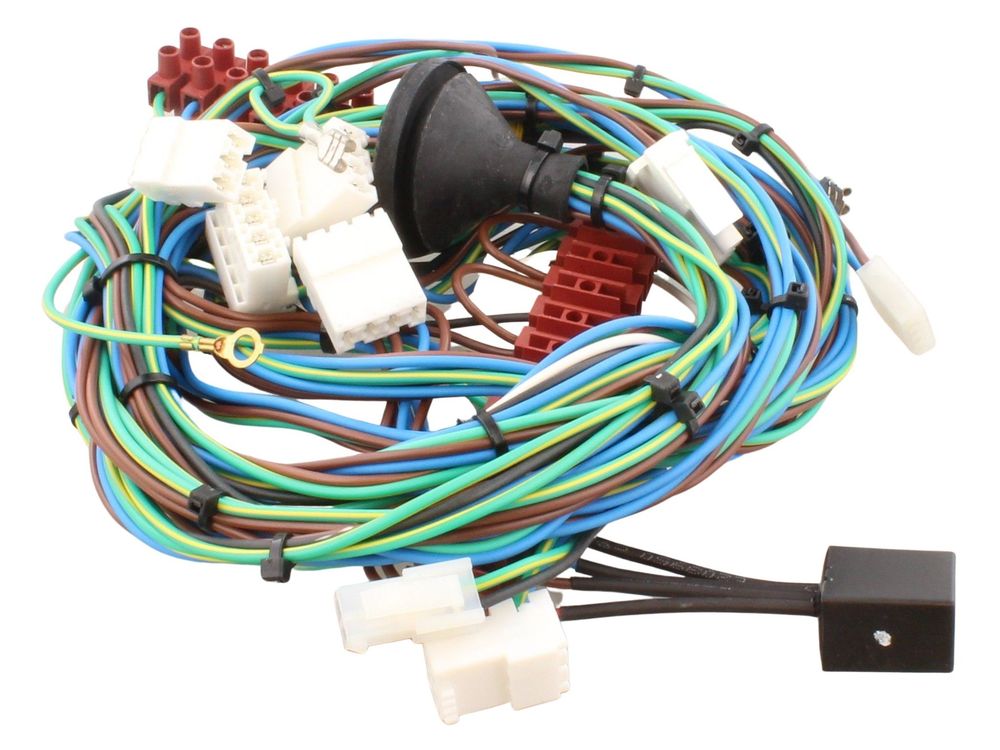

Ideal 176219 mains wiring harness for Ideal commercial Evomax 150 and Instinct Heat 150 appliances, carrying mains power and control signals.
At a glance
- Part type: Cables, Leads & Wiring Harnesses
- Appliance family: Ideal commercial (Evomax, Instinct Heat)
- Also known as 1782338
£101.87
£84.89 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176219 is a mains wiring harness manufactured for Ideal commercial heating appliances. It forms part of the electrical loom that carries mains power and control signals between the appliance's main control board and the surrounding components, so the unit can start, run and respond to demand correctly. The harness sits within the Ideal Spares range covering the Evomax and Instinct Heat commercial families.
Signs this part needs replacing
- The appliance fails to power up or shows no display when the supply is live.
- Intermittent shutdowns or random lockouts that trace back to a loose or broken connection in the loom.
- Visible damage to the harness: cracked insulation, scorched or discoloured conductors, or exposed wire at the plug ends.
- Fault codes relating to lost communication or missing mains detection at the control board.
- Connectors that no longer clip securely into the board or component terminals.
Before you order
- Confirm the GC number on the appliance data badge matches 41-750-39A before ordering.
- Check the model and serial plate against the compatibility list, as harness routing differs between commercial models.
- Note the alternative part number 1782338 when cross-referencing against an existing harness.
- Isolate the electrical supply at the isolator before removing or refitting any wiring harness.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176219 |
|---|---|
| GC number | 41-750-39A |
| Barcode / EAN | 5022141762192 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782338 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 150 | 41-750-39A | 41-750-39A | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL INSTINCT HEAT 150 | — | — | — |
