Ideal
Ideal Wiring Harness SELV 176214
Ideal 176214 SELV wiring harness for Evomax commercial boilers, carrying low-voltage control connections. Check your model and GC number before ordering.
At a glance
- Part type: Wiring harness (SELV)
- Also known as 1782224
£83.52
£69.60 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

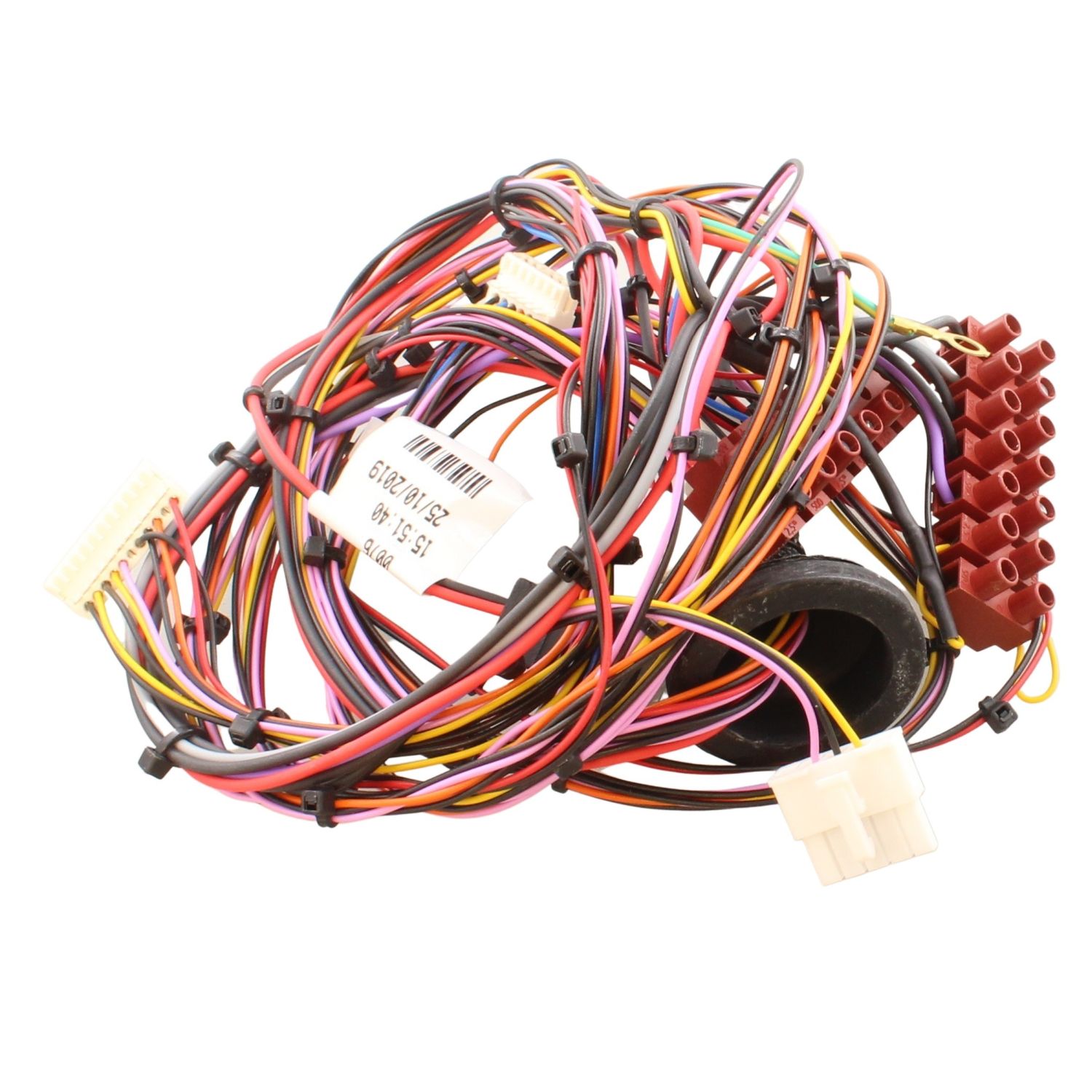

The Ideal 176214 is a SELV (safety extra-low voltage) wiring harness manufactured for Ideal commercial heating appliances. It forms part of the low-voltage control circuit, linking the boiler's control and sensing components through a pre-terminated lead set. The harness is listed under the Cables, Leads & Wiring Harnesses spare part group and is used across the Ideal Commercial Evomax range.
Signs this part needs replacing
- Boiler fails to fire or locks out intermittently with no obvious mechanical cause
- Control or sensor faults that clear when the harness is moved or reseated
- Cracked, brittle or heat-damaged insulation on the harness conductors
- Corroded, loose or pushed-back terminals in the plug connectors
- Low or missing voltage at the control side of the circuit when tested
Before you order
- Check the appliance GC number and model against the compatibility list to confirm the harness matches your boiler
- Note the alternative part number 1782224 when cross-referencing older documentation or stock records
- Inspect the connectors and any associated seals on removal, as these are not supplied with the harness
- Isolate the electrical supply and follow the manufacturer's wiring diagram when fitting
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176214 |
|---|---|
| Barcode / EAN | 5022141762147 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782224 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL EVOMAX 100 | 41-750-37A | 41-750-37A | — | — |
| IDEAL COMMERCIAL EVOMAX 120 | 41-750-38A | 41-750-38A | — | — |
| IDEAL COMMERCIAL EVOMAX 150 | 41-750-39A | 41-750-39A | — | — |
| IDEAL COMMERCIAL EVOMAX 30 | 41-750-33A | 41-750-33A | — | — |
| IDEAL COMMERCIAL EVOMAX 30P | 41-750-40 | 41-750-40 | — | — |
| IDEAL COMMERCIAL EVOMAX 40 | 41-750-34A | 41-750-34A | — | — |
| IDEAL COMMERCIAL EVOMAX 40P | 41-750-41 | 41-750-41 | — | — |
| IDEAL COMMERCIAL EVOMAX 60 | 41-750-35A | 41-750-35A | — | — |
| IDEAL COMMERCIAL EVOMAX 60P | 41-750-42 | 41-750-42 | — | — |
| IDEAL COMMERCIAL EVOMAX 80 | 41-750-36A | 41-750-36A | — | — |
Showing 10 of 21 compatible appliances.
