Ideal Pipe Clip Seal Kit Recuperator 176150

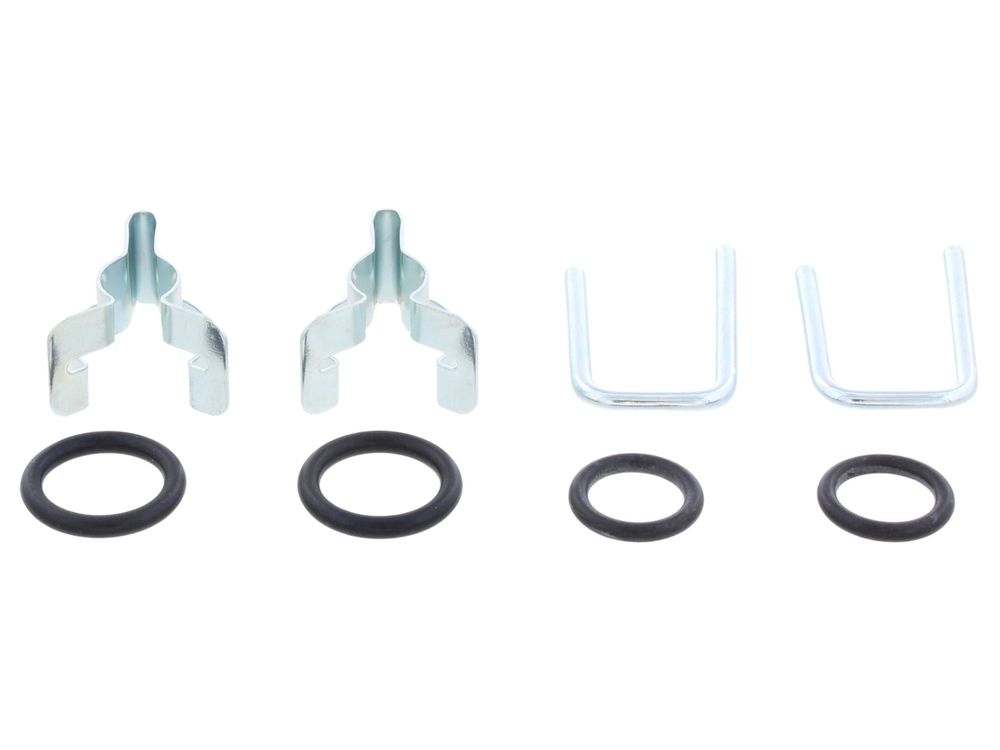

The Ideal 176150 is a recuperator pipe clip and seal kit manufactured for Ideal domestic boilers. It is a small service assembly that holds the recuperator pipe in position and seals the joint where that pipe connects, keeping the connection secure and watertight inside the appliance casing.

The kit belongs to the Logic Code Combi family of condensing combination boilers and is listed by Ideal under the hoses and pipes part group. This is the pre-prefix ABT variant of the part.

• Water or condensate weeping from the recuperator pipe joint
• Staining, crusting or corrosion around the clip and seal area
• A clip that has become loose, brittle or distorted, allowing the pipe to move
• A seal that has hardened, flattened or perished with age
• Repeated pressure loss or moisture inside the boiler casing traced to the recuperator connection

• Check the GC number and serial number on the appliance data badge against the compatibility list before ordering.
• Confirm the part number on the existing component matches 176150 or the alternative number 1781824.
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
• Inspect the recuperator pipe itself for damage while the joint is open, as the clip and seal are replaced as a set.
