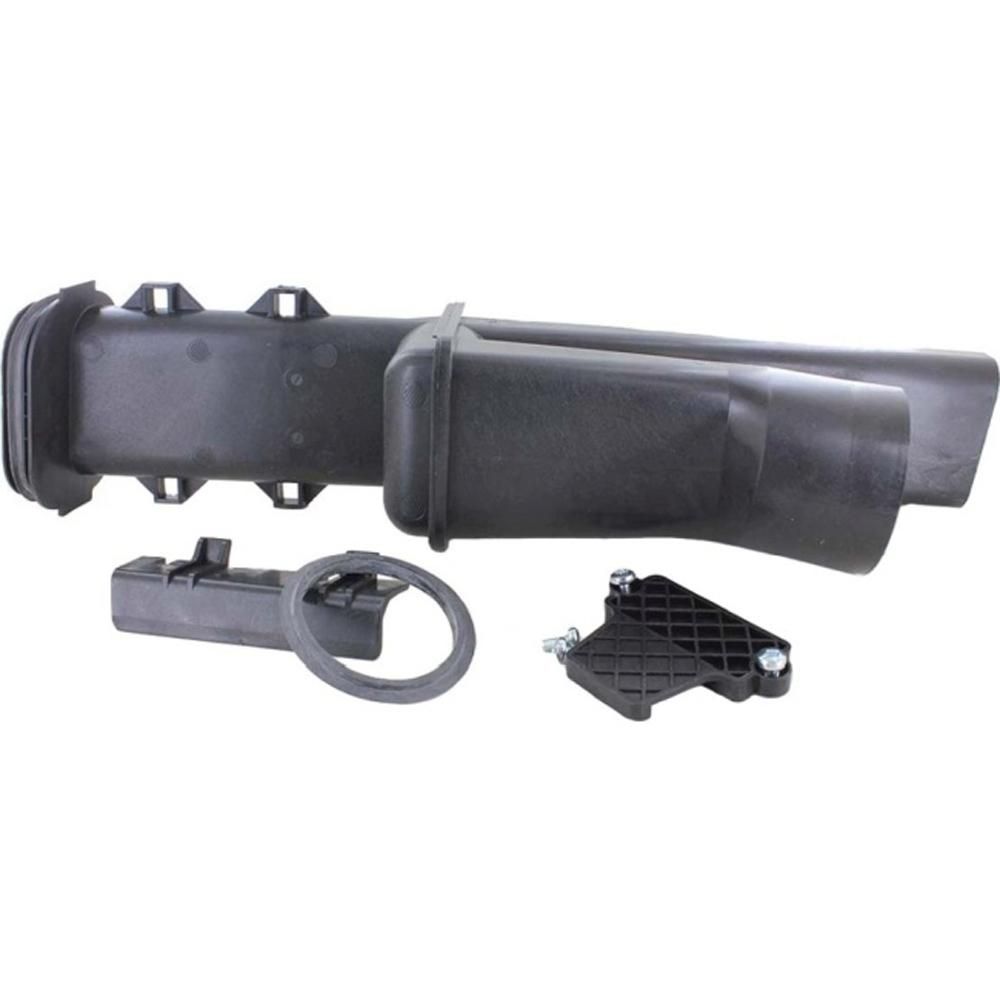

Ideal Flue Manifold Assembly With Guide Bracket 176143

The Ideal flue manifold and guide bracket is an internal flue component used on Ideal Atlantic Combi and Classic 2 appliances. It forms part of the flue route, carrying products of combustion away from the heat exchanger and holding the flue path in correct alignment. The guide bracket keeps the manifold seated and positioned as the flue passes through the appliance casing.

• Staining, soot marks or discolouration around the flue manifold joint
• Condensate or water tracking from the manifold area
• Corrosion or cracking on the manifold body or bracket
• Boiler lockout, flame failure or unstable combustion readings traced to the flue path
• Manifold or bracket sitting loose, misaligned or unable to hold the flue correctly

• Check the appliance GC number and model against the compatibility list before ordering.
• Confirm the alternative number 1781810 matches the part currently fitted.
• Inspect the flue seals and gaskets at the manifold joint and replace them where they are disturbed during the repair.
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
