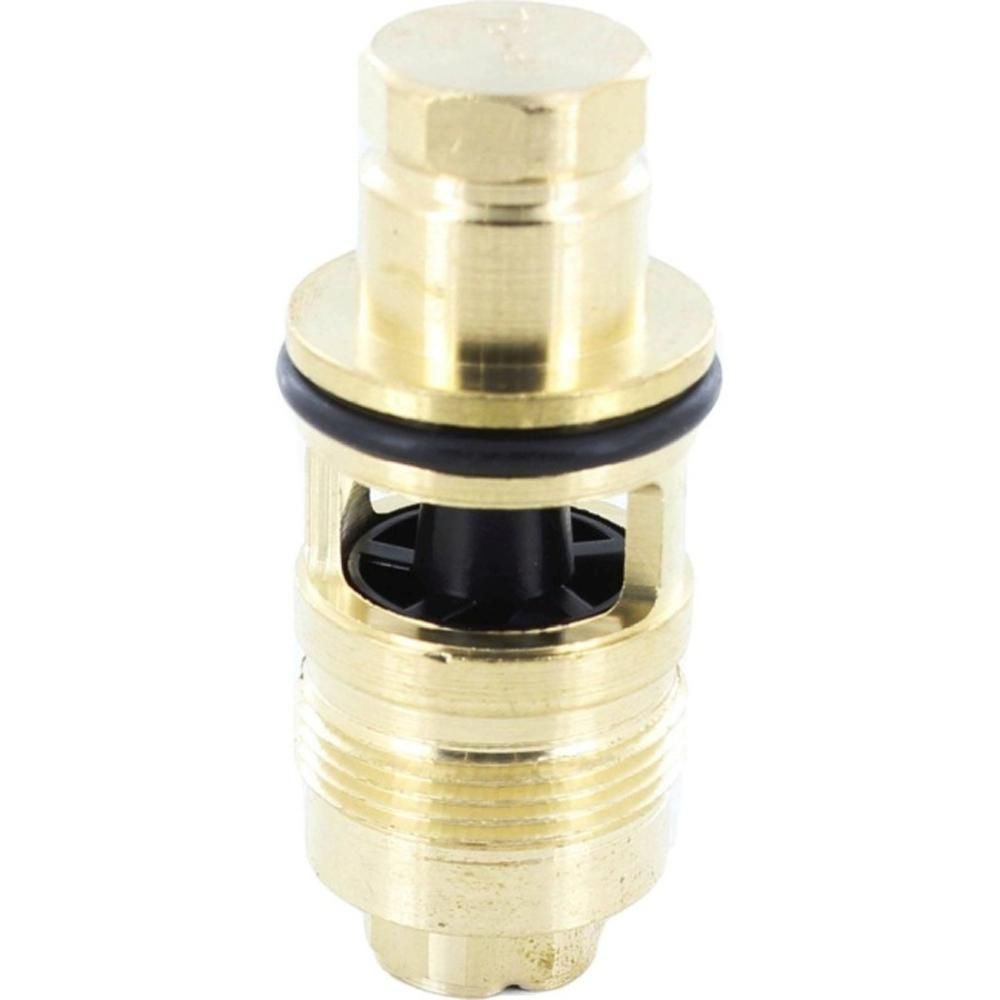

Ideal Flow Turbine Cartridge He33 176138
Ideal flow turbine cartridge, part 176138, for Logic Code Combi 33 and ES33 models; a flowswitch component that signals hot water demand.
At a glance
- Part type: Flowswitch (turbine cartridge)
- Also known as 1781800
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£77.53
£64.61 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal flow turbine cartridge, part number 176138, is a flowswitch component used in Ideal Logic Code Combi appliances. It sits in the domestic hot water circuit and registers the flow of water when a tap or outlet is opened, giving the appliance the signal it needs to fire and modulate for hot water demand. The part is also listed under the alternative number 1781800.
Signs this part needs replacing
- No hot water produced when an outlet is opened, with the boiler failing to respond to demand.
- Hot water runs intermittently, cutting in and out during a draw-off.
- The appliance fires for heating but does not fire in hot water mode.
- Unstable or fluctuating domestic hot water temperature.
- Flow-related fault codes logged on the appliance display.
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant.
- Cross-check the alternative number 1781800 against the part removed from the appliance.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Cartridges |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176138 |
|---|---|
| Barcode / EAN | 5022141761386 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781800 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC CODE COMBI 33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES33 | — | — | — | |
| IDEAL LOGIC CODE COMBI 33 | 47-348-75 | 47-348-75 | — | — |
| IDEAL LOGIC CODE COMBI ES33 | 47-349-05 | 47-349-05 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
