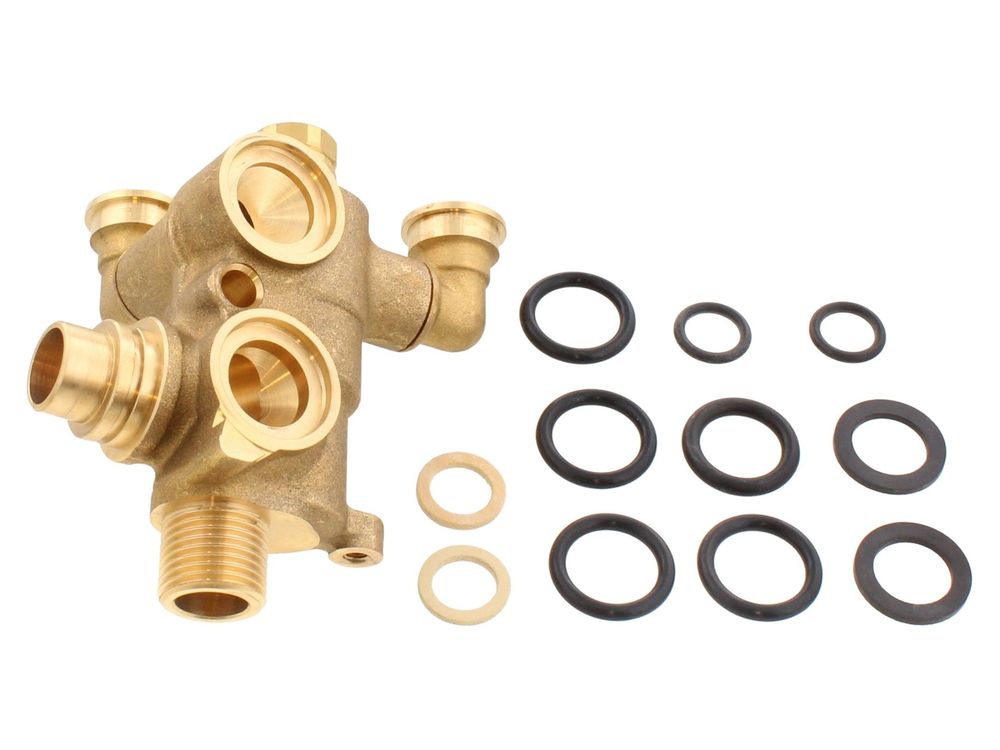

Ideal Return Group Kit 176133
Ideal 176133 Return Group Kit for Logic Code Combi boilers, part of the diverter valve and hydraulics assembly. Alternative number 1781790.
At a glance
- Part type: Diverter valves and hydraulics
- Also known as 1781790
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£152.40
£127.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176133 is a return group kit forming part of the diverter valve and hydraulics assembly inside Ideal Logic Code Combi boilers. It sits within the hydraulic circuit and supports the changeover between domestic hot water and central heating operation. The kit is supplied under the Ideal Spares brand and carries the alternative number 1781790.
Signs this part needs replacing
- Domestic hot water runs cold or fluctuates while the heating circuit is calling for heat
- The boiler fails to switch cleanly between heating and hot water modes
- Water weeping or staining around the hydraulic block or return group area
- Fault codes relating to diverter or hydraulic operation appearing on the display
- Noisy or sluggish movement from the valve assembly during mode changes
Before you order
- Check the appliance GC number and model against the compatibility list to confirm the kit suits your boiler
- Note the alternative number 1781790 when cross-referencing older stock or documentation
- Inspect the surrounding seals and gaskets on the hydraulic block and replace any that are perished while access is available
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Diverter & Motorised Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176133 |
|---|---|
| Barcode / EAN | 5022141761331 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781790 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC CODE COMBI 26 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI 33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI 36 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES26 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES38 | — | — | — | |
| IDEAL LOGIC CODE COMBI 26 | 47-348-74 | 47-348-74 | — | — |
| IDEAL LOGIC CODE COMBI 33 | 47-348-75 | 47-348-75 | — | — |
| IDEAL LOGIC CODE COMBI 36 | 47-348-76 | 47-348-76 | — | — |
| IDEAL LOGIC CODE COMBI ES26 | 47-349-04 | 47-349-04 | — | — |
Showing 10 of 13 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
