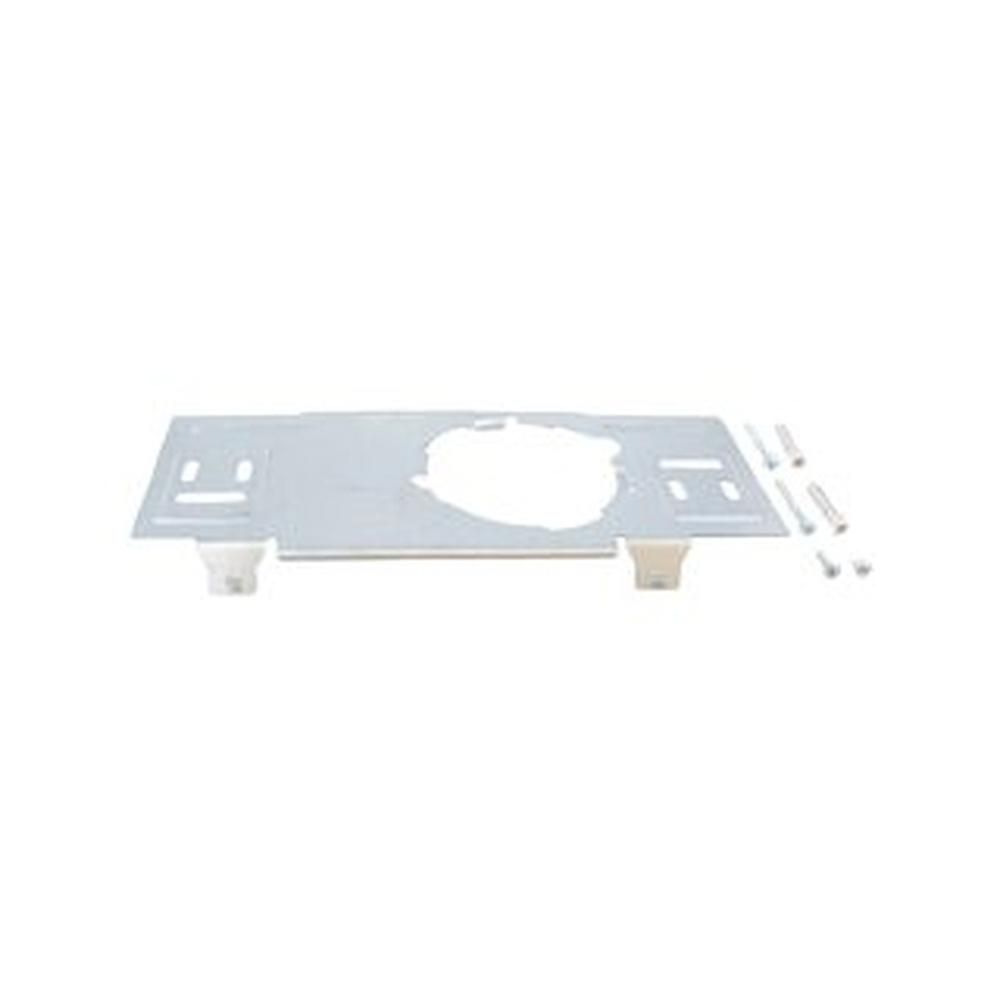

Ideal Wall Mounting Bracket Kit 176065
Ideal wall mounting bracket kit, part 176065, for Logic+ Heat and other Ideal boiler models. Secures the appliance to the wall.
At a glance
- Part type: Brackets and clamps
- Also known as 1781752
£21.90
£18.25 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal wall mounting bracket kit is the fixing assembly used to hang an Ideal boiler securely on the wall. It is supplied by Ideal as a serviceable spare and carries part number 176065. The bracket takes the weight of the appliance and holds the casing square against the mounting surface, so the flue and pipework connections line up as designed.
Signs this part needs replacing
- The boiler no longer sits level or has dropped away from the wall
- Visible corrosion, cracking or distortion on the bracket arms or fixing points
- The appliance moves or rocks when lightly pushed, suggesting a loose or failed mounting
- Rubbing, rattling or vibration noise traced to the boiler casing against the wall
- Bracket damaged or bent during a previous service or boiler removal
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct bracket for your model
- Note the alternative part number 1781752 when cross-referencing older stock or documentation
- Confirm whether the existing wall fixings and any sealing components are reusable before starting the job
Mechanical
| Part type | Brackets, Clamps & Mountings |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176065 |
|---|---|
| Barcode / EAN | 5022141760655 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781752 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 61 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC + HEAT H12 (GC 41-750-82), LOGIC + HEAT H15 (GC 41-750-83), LOGIC + HEAT H18 (GC 41-750-84), LOGIC + HEAT H24 (GC 41-750-85), LOGIC + HEAT H30 (GC 41-750-86)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC HEAT H12 (GC 41-750-77), LOGIC HEAT H15 (GC 41-750-78), LOGIC HEAT H18 (GC 41-750-79), LOGIC HEAT H24 (GC 41-750-80), LOGIC HEAT H30 (GC 41-750-81)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT 2 H12 (GC 41-860-25), LOGIC MAX HEAT 2 H15 (GC 41-860-26), LOGIC MAX HEAT 2 H18 (GC 41-860-27), LOGIC MAX HEAT 2 H24 (GC 41-860-28), LOGIC MAX HEAT 2 H30 (GC 41-860-29)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT H12 (GC 41-796-17), LOGIC MAX HEAT H15 (GC 41-796-18), LOGIC MAX HEAT H18 (GC 41-796-19), LOGIC MAX HEAT H24 (GC 41-796-20), LOGIC MAX HEAT H30 (GC 41-796-21)
