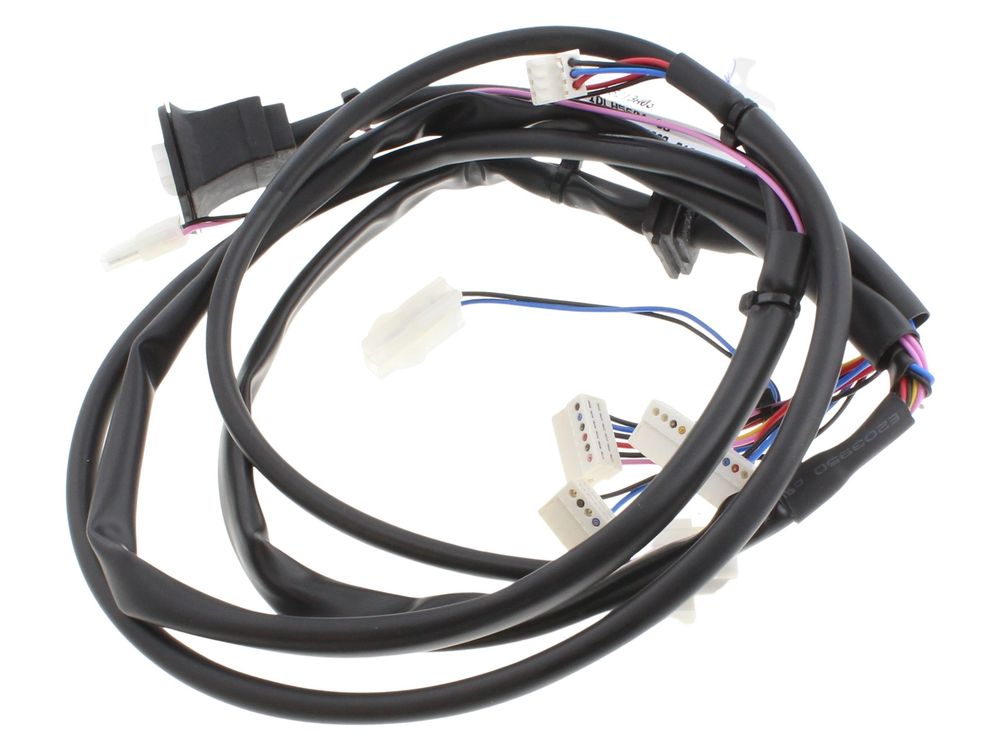

Ideal Wire Harness Low Voltage 176056
Low voltage wire harness for Ideal Logic+ Heat boilers, part 176056, linking electrical components to the appliance control board.
At a glance
- Part type: Wiring (wire harness)
- Appliance family: Logic+ Heat
- Also known as 1781734
£41.08
£34.23 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal wire harness 176056 is a low voltage wiring loom manufactured for Ideal Heating appliances. It forms part of the electrical circuit inside the boiler, carrying low voltage control signals between the control board and the components it serves. The harness is used across the Logic+ Heat range.
Signs this part needs replacing
- The appliance fails to fire or cuts out intermittently with no consistent fault pattern
- Fault codes relating to fan, sensor or communication circuits appear on the display
- Insulation on the loom is chafed, brittle or shows heat damage
- Connector pins are loose, corroded or blackened at the plug ends
- Faults appear or clear when the harness is moved or the plugs are reseated
Before you order
- Check the GC number and model of the appliance against the compatibility list before ordering
- Confirm the number printed on the existing harness matches 176056
- Cross-reference the alternative number 1781734 when checking older documentation
- Isolate the appliance from the electrical supply before removing or fitting the harness
Mechanical
| Part type | Wiring |
|---|---|
| Appliance family | Logic+ Heat |
Performance
| Voltage | Low voltage |
|---|
Compliance
| Manufacturer part number (MPN) | 176056 |
|---|---|
| Barcode / EAN | 5022141760563 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781734 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 21 compatible appliances.
