Ideal Wiring Harness Mains Voltage 176055

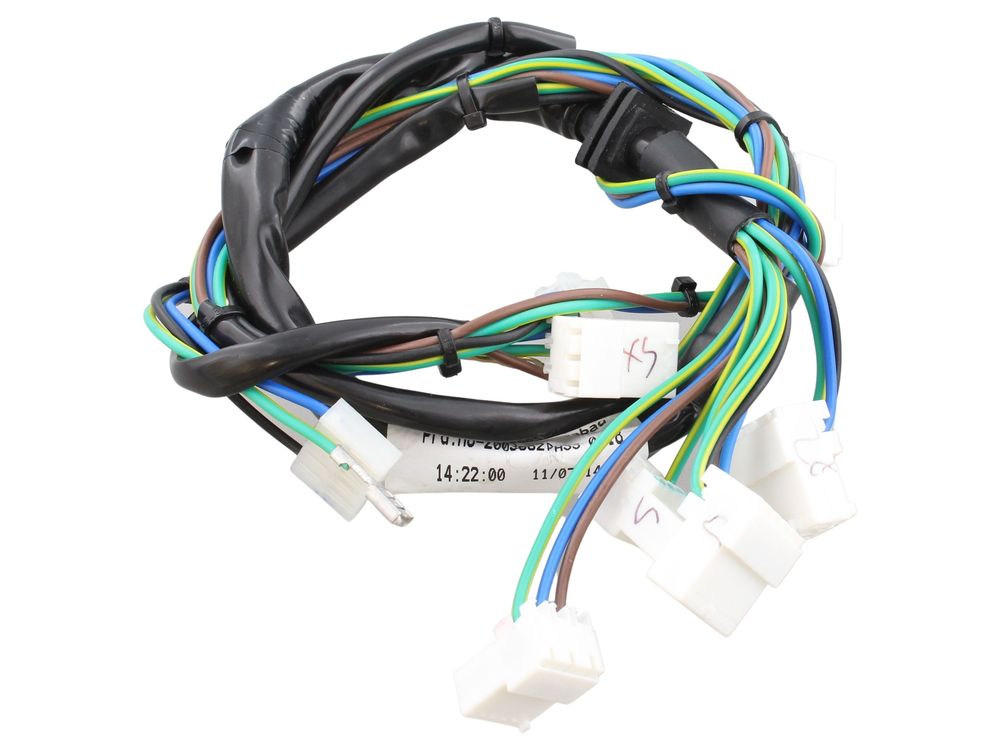

Ideal 176055 mains voltage wiring harness for Ideal Logic+ Heat boilers, carrying mains connections inside the appliance.
At a glance
- Part type: Wiring harness, mains voltage
- Appliance family: Ideal Logic+ Heat
- Also known as 1781732
£56.47
£47.06 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176055 is a mains voltage wiring harness manufactured by Ideal for use in its Logic+ Heat range of boilers. It forms part of the appliance's electrical loom, carrying mains supply connections between the boiler's control components so the unit can run as intended. As a serviceable electrical spare, it is replaced when the original harness is damaged or has developed a fault.
Signs this part needs replacing
- The boiler fails to power up or shows no display when the mains supply is present
- Intermittent power loss or the appliance cutting out during operation
- Visible damage to the harness, such as frayed, scorched or brittle insulation
- A burnt or discoloured connector block at either end of the harness
- Loose or poor-fitting plugs that will not seat correctly on their terminals
Before you order
- Check the model and GC number on the appliance data badge against the compatibility list before ordering
- Note the alternative part number 1781732, which may appear on older documentation or labelling
- Confirm the harness routing and connector count on your appliance matches the replacement before fitting
- Isolate the mains supply and follow the manufacturer's wiring diagram when replacing the harness
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Appliance family | Ideal Logic+ Heat |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176055 |
|---|---|
| Barcode / EAN | 5022141760556 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781732 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 21 compatible appliances.
