Ideal Wiring Harness Mains Installation 176054

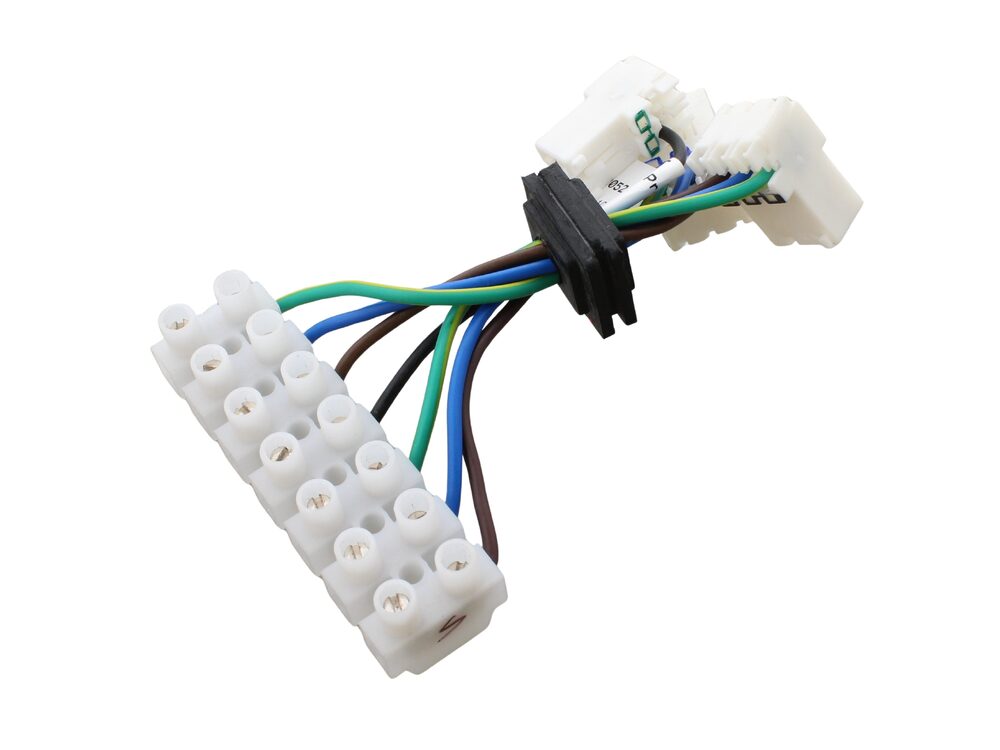

Mains installation wiring harness for Ideal Logic+ Heat boilers, part 176054 (alternative number 1781730).
At a glance
- Part type: Wiring harness (mains installation)
- Appliance family: Logic+ Heat
- Also known as 1781730
£29.23
£24.36 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176054 is a mains installation wiring harness supplied for Ideal domestic boilers. It forms the mains electrical link within the appliance, carrying supply connections to the boiler's control and power components. This harness is used across the Ideal Logic+ Heat range.
Signs this part needs replacing
- The boiler fails to power up, or mains supply to the appliance cuts in and out
- A fuse blows or the RCD trips when the boiler is switched on
- Scorching, discolouration or brittle, cracked insulation at the harness connectors
- Loose, corroded or heat-damaged terminals at the mains connection points
- Intermittent shutdowns or fault codes traced back to the mains supply wiring
Before you order
- Confirm your appliance model and GC number against the compatibility list before ordering
- Check the part number and connector layout on the existing harness, as wiring looms are model-specific
- Isolate the electrical supply at the fused spur before removing or refitting the harness
- Inspect the mains terminal block and any associated seals while the appliance is open
Mechanical
| Part type | Wiring harness (mains installation) |
|---|---|
| Appliance family | Logic+ Heat |
Compliance
| Manufacturer part number (MPN) | 176054 |
|---|---|
| Barcode / EAN | 5022141760549 |
| Commodity code | 8544 42 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781730 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 21 compatible appliances.
