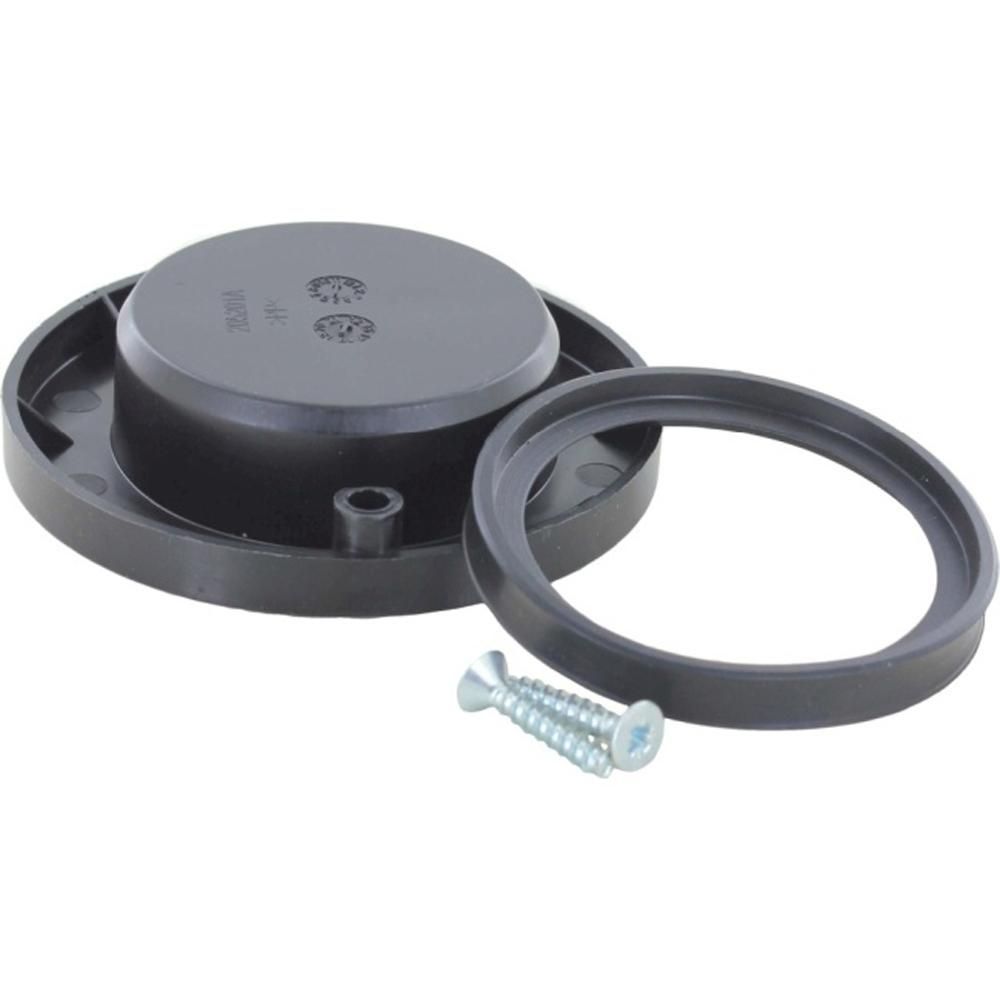

Ideal Flue Manifold Cap Kit Rear Sealing 176053
Rear sealing cap kit for the flue manifold on Ideal Logic and Logic+ Heat boilers, supplied under part number 176053.
At a glance
- Part type: Flue assembly
- Also known as 1781728
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£19.86
£16.55 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The rear sealing cap kit is a flue assembly component for Ideal gas boilers. It seals the rear of the flue manifold, closing off the joint where the manifold meets the appliance casing so that products of combustion stay within the flue path. It is used across the Ideal Logic and Logic+ Heat range and is supplied under part number 176053.
Signs this part needs replacing
- Flue gas readings drifting outside the expected range on a combustion analysis
- Visible cracking, hardening or distortion of the existing seal
- Staining or condensate tracking around the rear of the flue manifold
- A smell of combustion products near the appliance casing
- The cap or seal disturbed or damaged during servicing of the flue manifold
Before you order
- Check the GC number and serial plate on the appliance against the compatibility list before ordering.
- Confirm the alternative number 1781728 matches the part currently fitted.
- Inspect the manifold joint while the appliance is open and replace any other seals or gaskets that show signs of deterioration.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Flue Assembly |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176053 |
|---|---|
| Barcode / EAN | 5022141760532 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781728 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 61 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC + HEAT H12 (GC 41-750-82), LOGIC + HEAT H15 (GC 41-750-83), LOGIC + HEAT H18 (GC 41-750-84), LOGIC + HEAT H24 (GC 41-750-85), LOGIC + HEAT H30 (GC 41-750-86)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC HEAT H12 (GC 41-750-77), LOGIC HEAT H15 (GC 41-750-78), LOGIC HEAT H18 (GC 41-750-79), LOGIC HEAT H24 (GC 41-750-80), LOGIC HEAT H30 (GC 41-750-81)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT 2 H12 (GC 41-860-25), LOGIC MAX HEAT 2 H15 (GC 41-860-26), LOGIC MAX HEAT 2 H18 (GC 41-860-27), LOGIC MAX HEAT 2 H24 (GC 41-860-28), LOGIC MAX HEAT 2 H30 (GC 41-860-29)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT H12 (GC 41-796-17), LOGIC MAX HEAT H15 (GC 41-796-18), LOGIC MAX HEAT H18 (GC 41-796-19), LOGIC MAX HEAT H24 (GC 41-796-20), LOGIC MAX HEAT H30 (GC 41-796-21)
