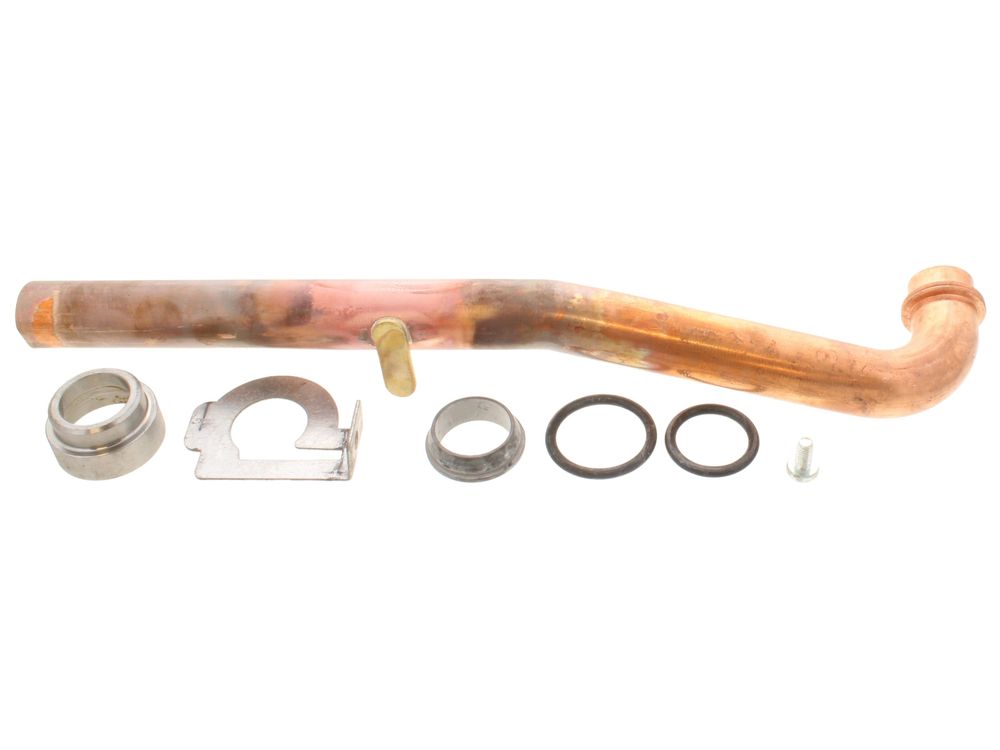

Ideal Pipe Flow Logic + Heat 176047
Ideal 176047 pipe flow for Logic + Heat boilers, carrying water through the appliance's internal circuit. Alternative number 1781716.
At a glance
- Part type: Pipes & Hoses
- Appliance family: Logic + Heat
- Also known as 1781716
£45.38
£37.82 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176047 is a pipe flow component used in the internal water circuit of Ideal Logic + Heat boilers. It forms part of the pipework that moves water through the appliance, so a sound, correctly seated pipe is essential to steady flow and stable operation. It is listed under the Pipes & Hoses spare part group and is also identified by the alternative number 1781716.
Signs this part needs replacing
- Water weeping or visible staining around the pipe run or its joints
- Pressure loss on the gauge with no obvious external leak elsewhere
- Corrosion, pitting or surface scale on the pipe wall
- Hairline cracks or deformation at bends and connection points
- Air ingress causing gurgling, poor circulation or repeated lockouts
Before you order
- Check the GC number on the appliance data badge against the list above before ordering
- Confirm the model in the compatibility list, as the same part number can appear across several Logic + Heat outputs
- Note the alternative number 1781716 when cross-referencing older documentation
- Inspect the surrounding seals and connections while the pipework is open, and replace any that show wear
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Appliance family | Logic + Heat |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 176047 |
|---|---|
| Barcode / EAN | 5022141760471 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781716 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualNo technical questions yet for this part.
