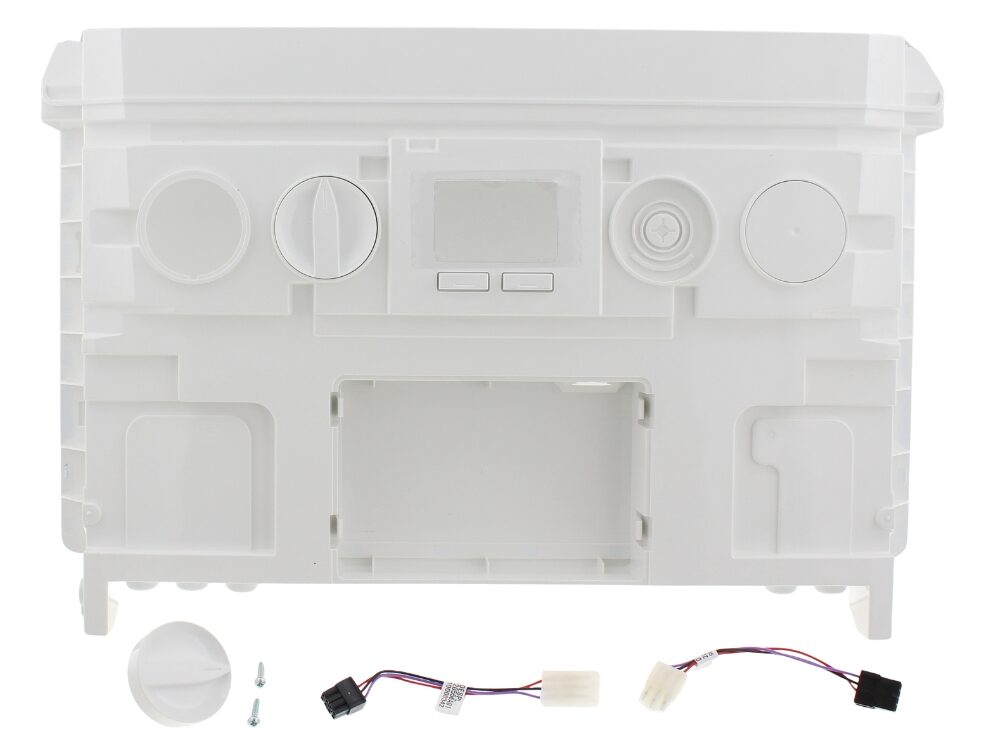

Ideal Control Box Front Kit 176027
Ideal 176027 Control Box Front Kit, a replacement control assembly for Ideal Logic and Logic+ Heat boilers. Check your model against the compatibility list.
At a glance
- Part type: Control box front kit
- Appliance family: Ideal Logic and Logic+ Heat
- Also known as 1781688
£61.67
£51.39 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176027 Control Box Front Kit is a replacement control assembly for Ideal domestic boilers. It carries the user-facing controls and display housing that sit on the front of the appliance, forming the interface between the boiler's electronic control board and the person operating the heating and hot water.
It is supplied by Ideal for the Logic and Logic+ Heat boiler families, and is listed against 53 separate appliance variants.
Signs this part needs replacing
- The boiler does not respond when the controls are pressed
- The display is blank, dim or shows incomplete segments
- Buttons feel loose, stuck or fail to register a press
- Intermittent lockouts or fault codes that clear and return
- Visible damage, cracking or moisture ingress around the control fascia
Before you order
- Confirm the model and GC number from the appliance data badge before ordering
- Check the part number 176027 against the number on the existing control assembly
- Cross-reference the alternative number 1781688 if your documentation lists it
Mechanical
| Part type | Control Box Front Kit |
|---|---|
| Appliance family | Logic, Logic+ Heat |
Compliance
| Manufacturer part number (MPN) | 176027 |
|---|---|
| Barcode / EAN | 5022141760273 |
| Commodity code | 8403 90 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781688 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — |
Showing 10 of 53 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC + SYSTEM 15 (GC 47-750-29), LOGIC + SYSTEM 18 (GC 47-750-30), LOGIC + SYSTEM 24 (GC 47-750-31), LOGIC + SYSTEM 30 (GC 47-750-32)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 15 (GC 41-750-24), LOGIC SYSTEM 15IE (GC 41-750-44), LOGIC SYSTEM 18 (GC 41-750-25), LOGIC SYSTEM 18IE (GC 41-750-45), LOGIC SYSTEM 24 (GC 41-750-26), LOGIC SYSTEM 24IE (GC 41-750-46), LOGIC SYSTEM 30 (GC 41-750-27), LOGIC SYSTEM 30IE (GC 41-750-47)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA SYSTEM 15 (GC 41-002-01), ZANUSSI ULTRA SYSTEM 18 (GC 41-002-02), ZANUSSI ULTRA SYSTEM 24 (GC 41-002-03), ZANUSSI ULTRA SYSTEM 30 (GC 41-002-04)
manualNo technical questions yet for this part.
