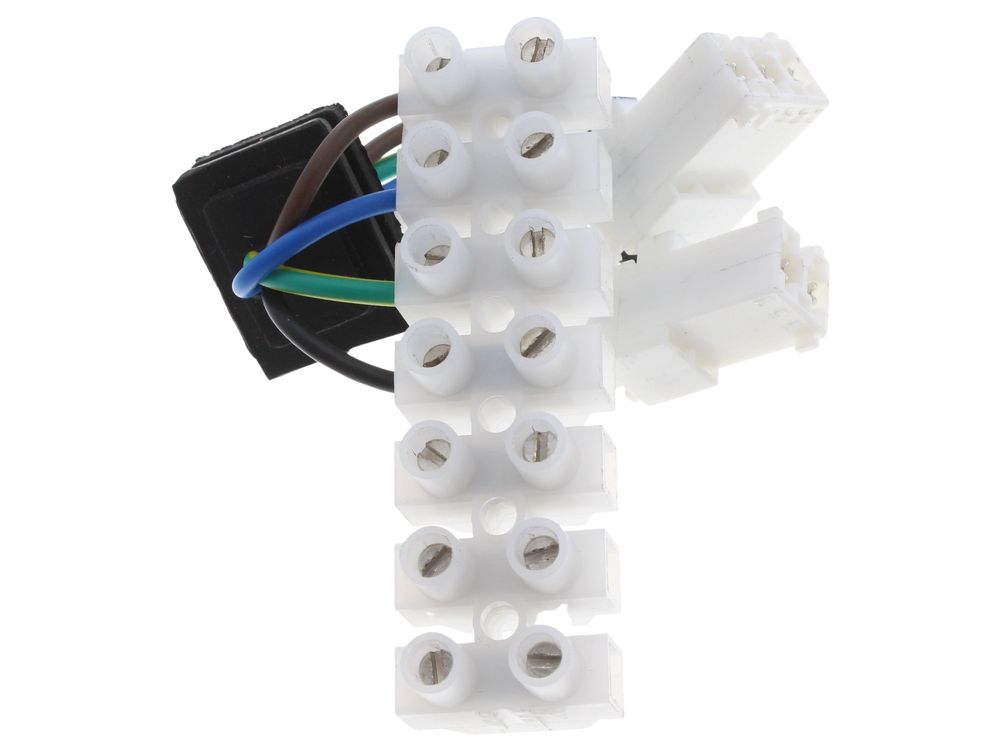

Ideal Wiring Harness Mains Installation 176009
Mains installation wiring harness for Ideal Logic and Logic+ System boilers, part 176009 (alternative number 1781682).
At a glance
- Part type: Wiring harness, mains installation
- Also known as 1781682
£20.45
£17.04 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176009 is a mains installation wiring harness intended for Ideal Logic and Logic+ System boilers. It provides the fixed electrical link between the boiler's mains supply and the internal components, carrying power and control connections through the appliance casing. It is supplied as an Ideal Domestic Boiler Spares component and is fitted during installation or when the original harness is damaged.
Signs this part needs replacing
- The boiler fails to power up, or the mains supply cuts in and out during operation.
- Insulation on the harness is frayed, brittle or shows signs of heat damage.
- Terminals or plugs are loose, corroded or discoloured, causing intermittent faults or lockouts.
- The cable run or connector has been damaged during servicing or while the casing was removed.
- Repeated electrical faults that trace back to the mains wiring inside the appliance.
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the harness matches your model.
- The alternative number 1781682 identifies the same item where it appears on older documentation or parts listings.
Mechanical
| Part type | Wiring harness, mains installation |
|---|---|
| Dimensions | 15 × 15 × 15 cm |
Compliance
| Manufacturer part number (MPN) | 176009 |
|---|---|
| Barcode / EAN | 5022141760099 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781682 |
Logistics
| Weight | 240 g |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + SYSTEM 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM 30 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 15 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 15IE | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 18 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 18IE | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 24 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 24IE | — | — | — |
Showing 10 of 33 compatible appliances.
