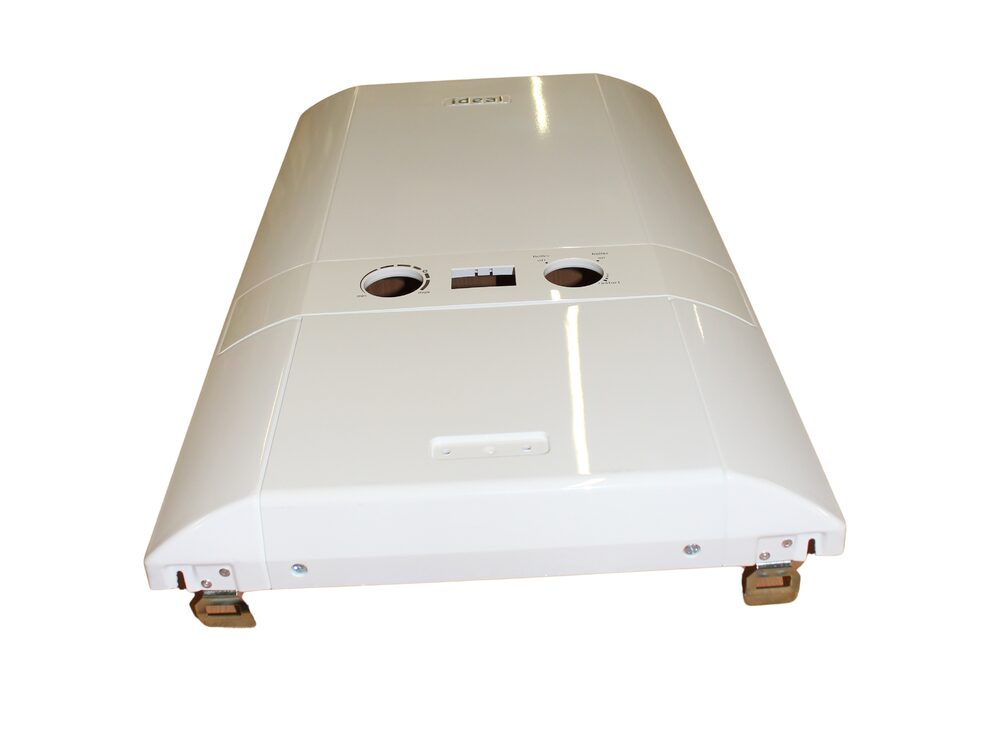

Ideal Front Panel Kit Pre Prefix ABU 176002
Ideal 176002 front panel kit for Logic System boilers, supplied as a casing assembly front panel for pre-prefix ABU models.
At a glance
- Part type: Casing assembly / front panel kit
- Also known as 1781674
£236.60
£197.17 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 176002 is a front panel kit forming part of the outer casing assembly on Ideal Logic System boilers. It is the removable front cover that sits over the combustion chamber and controls area, protecting internal components and giving the appliance its finished appearance. This version is intended for pre-prefix ABU appliances.
Signs this part needs replacing
- Visible cracks, splits or impact damage to the panel
- Panel no longer sits flush against the casing frame
- Broken or missing retaining clips or fixing points
- Corrosion, blistering or heavy discolouration of the panel surface
- Panel distorted after heat exposure, leaving gaps around the casing
Before you order
- Confirm the appliance GC number and serial number against the compatibility list, as casing parts differ between build prefixes.
- Check the existing panel for the prefix marking to confirm whether the pre-prefix ABU version is the correct match.
- Note the alternative number 1781674 when cross-referencing against older documentation or stock records.
Mechanical
| Part type | Casings, Covers And Panels |
|---|
Compliance
| Manufacturer part number (MPN) | 176002 |
|---|---|
| Barcode / EAN | 5022141760020 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781674 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC SYSTEM 15 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 15IE | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 18 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 18IE | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 24 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 24IE | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 30 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM 30IE | — | — | — | |
| IDEAL LOGIC SYSTEM 15 | 41-750-24 | 41-750-24 | — | — |
| IDEAL LOGIC SYSTEM 15IE | 41-750-44 | 41-750-44 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC SYSTEM 15 (GC 41-750-24), LOGIC SYSTEM 15IE (GC 41-750-44), LOGIC SYSTEM 18 (GC 41-750-25), LOGIC SYSTEM 18IE (GC 41-750-45), LOGIC SYSTEM 24 (GC 41-750-26), LOGIC SYSTEM 24IE (GC 41-750-46), LOGIC SYSTEM 30 (GC 41-750-27), LOGIC SYSTEM 30IE (GC 41-750-47)
