Ideal
Ideal Condensate Hose Internal Heat 175984
Internal condensate hose for Ideal Logic+ Heat boilers, part 175984 (alt 1781658), carrying condensate from the flue and heat exchanger to the trap.
At a glance
- Part type: Hoses and pipes
- Also known as 1781658
£13.20
£11.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

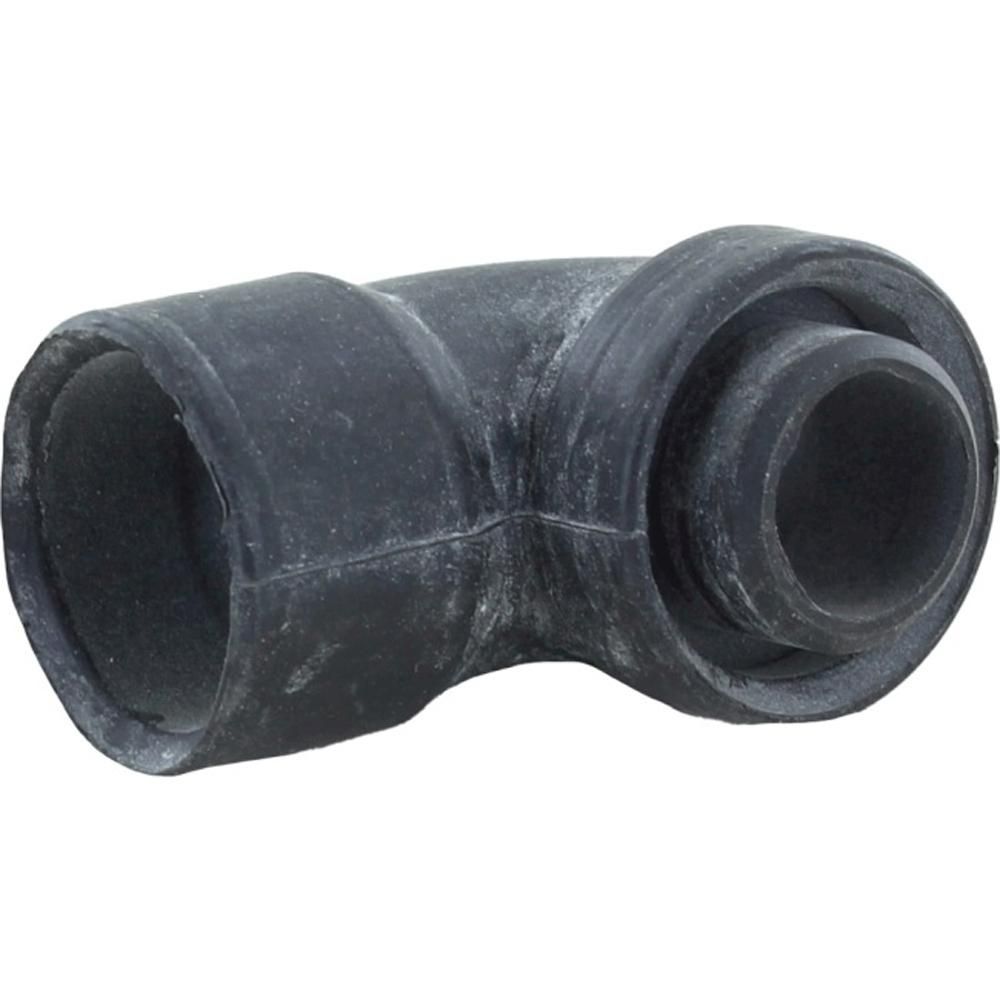

The Ideal 175984 is an internal condensate hose supplied for Ideal Logic+ Heat appliances. It forms part of the condensate route inside the casing, moving condensate away from the heat exchanger and flue system towards the trap and the external drain. The hose is shaped to follow the internal routing of the Logic+ Heat range, so it sits correctly without kinking or trapping water.
Signs this part needs replacing
- Water pooling inside the boiler casing or dripping from the base of the appliance
- Condensate backing up at the trap, causing gurgling, intermittent lockout or a condensate fault code
- Visible splits, cracks or perished rubber along the length of the hose
- White crystalline or chalky deposits around the hose ends and connections
- A joint that has hardened or lost its seal, allowing condensate to weep onto internal components
Before you order
- Check the GC number or the serial plate on the appliance against the compatibility list before ordering.
- The alternative number 1781658 may appear on older documentation for the same hose.
- Inspect the condensate trap and any hose clips at the same time, as a hardened hose often points to a blocked or scaled trap.
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 175984 |
|---|---|
| Barcode / EAN | 5022141759840 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1781658 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC + HEAT 30 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 12 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 15 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 18 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 24 | — | — | — | |
| IDEAL IDEAL : LOGIC HEAT 30 | — | — | — |
Showing 10 of 46 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
manualmanualIDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT 2 H12 (GC 41-860-25), LOGIC MAX HEAT 2 H15 (GC 41-860-26), LOGIC MAX HEAT 2 H18 (GC 41-860-27), LOGIC MAX HEAT 2 H24 (GC 41-860-28), LOGIC MAX HEAT 2 H30 (GC 41-860-29)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
